Sensor Identification

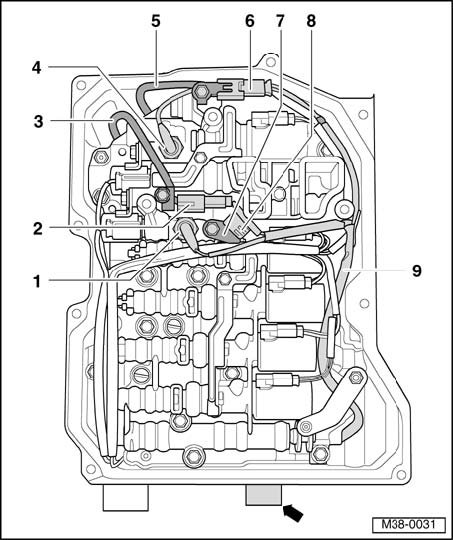

Sensor Identification, 09G, 6 Speed A/T





1 - Automatic Transmission Hydraulic Pressure Sensor 1 G193
^ No longer installed as of 07.04

2 - Harness connector to Transmission Input Speed (RPM) Sensor G182

3 - Wire on Transmission Input Speed (RPM) Sensor G182

4 - Automatic Transmission Hydraulic Pressure Sensor 2 G194
^ No longer installed as of 07.04

5 - Wire on Transmission Output Speed (RPM) Sensor G195

6 - Harness connector to Transmission Output Speed (RPM) Sensor G195

7 - Bracket for Transmission Fluid Temperature Sensor G93

8 - Transmission Fluid Temperature Sensor G93

9 - Wiring harness for sensors with 8-pin connector - arrow-.
