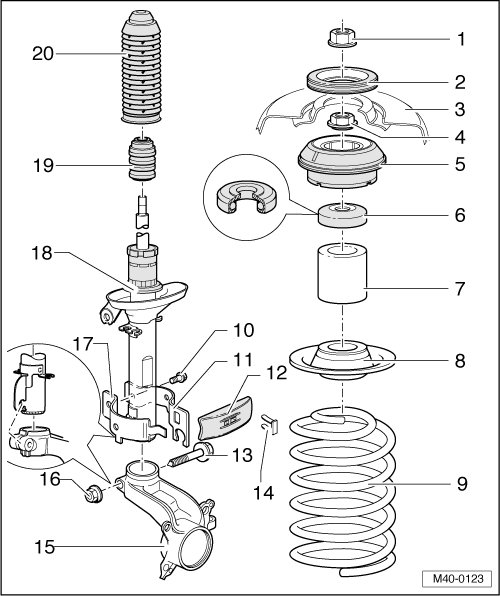

Strut Assembly Overview

Strut Assembly Overview





1 Self-locking hex nut

• M14 x 1.5

• Tightening specification => [ Strut ] Front Suspension.

2 Stop plate

3 Strut dome

4 Hex nut

• M14 x 1.5

• Tightening specification => [ Strut ] Front Suspension.

5 Suspension strut bearing

6 Axial groove ball bearing

7 Socket

Only available in Mexico vehicles

8 Spring plate

9 Coil spring

• Note color code

• Surface of spring coil may not be damaged

10 Hex bolt

• Tightening specification => [ Strut ] Front Suspension.

11 Bracket

12 Heat shield

13 Hex bolt

• Always replace

• Hex bolt point must face in direction of travel

14 Clip

15 Wheel bearing housing

16 Self-locking nut

• M14 x 1.5

• Tightening specification => [ Strut ] Front Suspension.

• Always replace

17 Clamp

18 Shock absorber

• Can be replaced individually

19 Buffer stop

20 Protective sleeve
