Home >> Volkswagen >> 2008 >> New Beetle Convertible (1Y7) L5-2.5L (BPS) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Brake Caliper

Brake Caliper

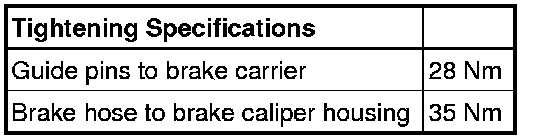

Front Brakes, FS III

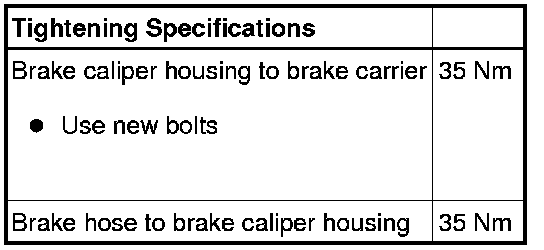

Front Brakes, FN 3











Rear Brakes
