Airbag System OBD Measured Value Block, Reading, Function 08

Airbag System OBD Measured Value Block, Reading, Function 08

CAUTION:
- Only visual check of wiring
- Do not carry out electrical continuity tests or measurements to igniter circuits.
- Only check wiring with ignition switched off.

- Connecting VAG1551 - Scan Tool, Connecting or VAS5051 and initiating On Board Diagnosis (OBD) - Airbag OBD, Initiating Program.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons 0 and 8 (08 initiates function "Read measured value block"

Indicated on display:

Rapid data transfer Q08 Read measured value block

- Confirm entry with Q button.

Indicated on display:

Read measured value block HELP
Input display group number XXX

- Select relevant display group number and confirm entry with Q button.

Indicated on display: (1...4 = display zones)

Read measured value block 1 arrowright
1 2 3 4

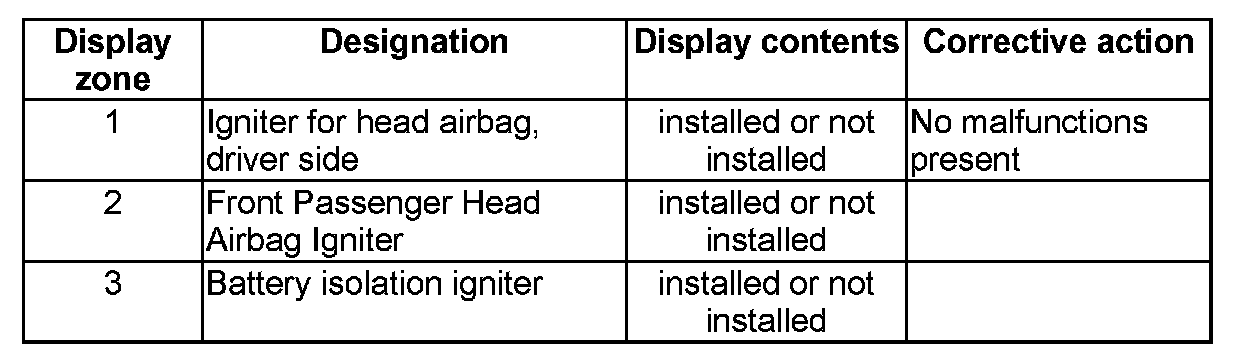

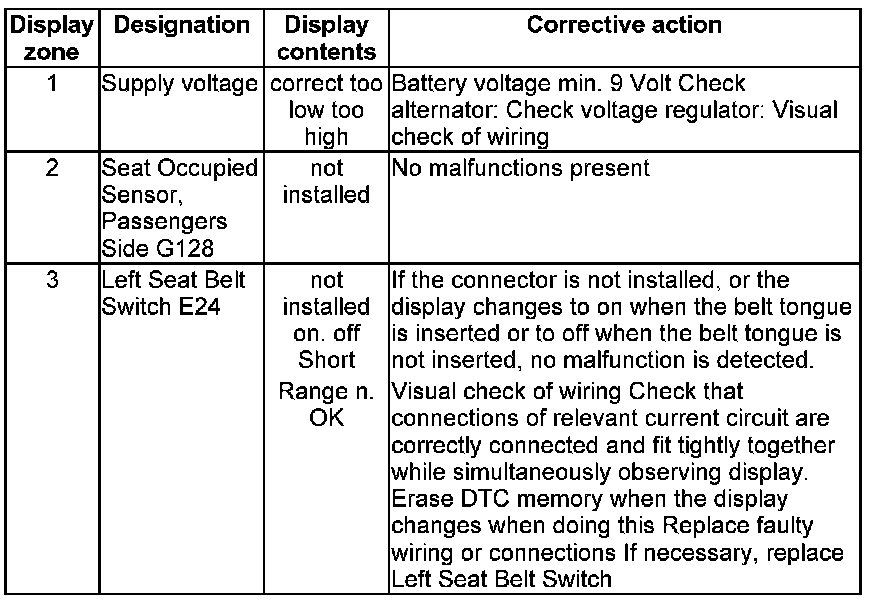

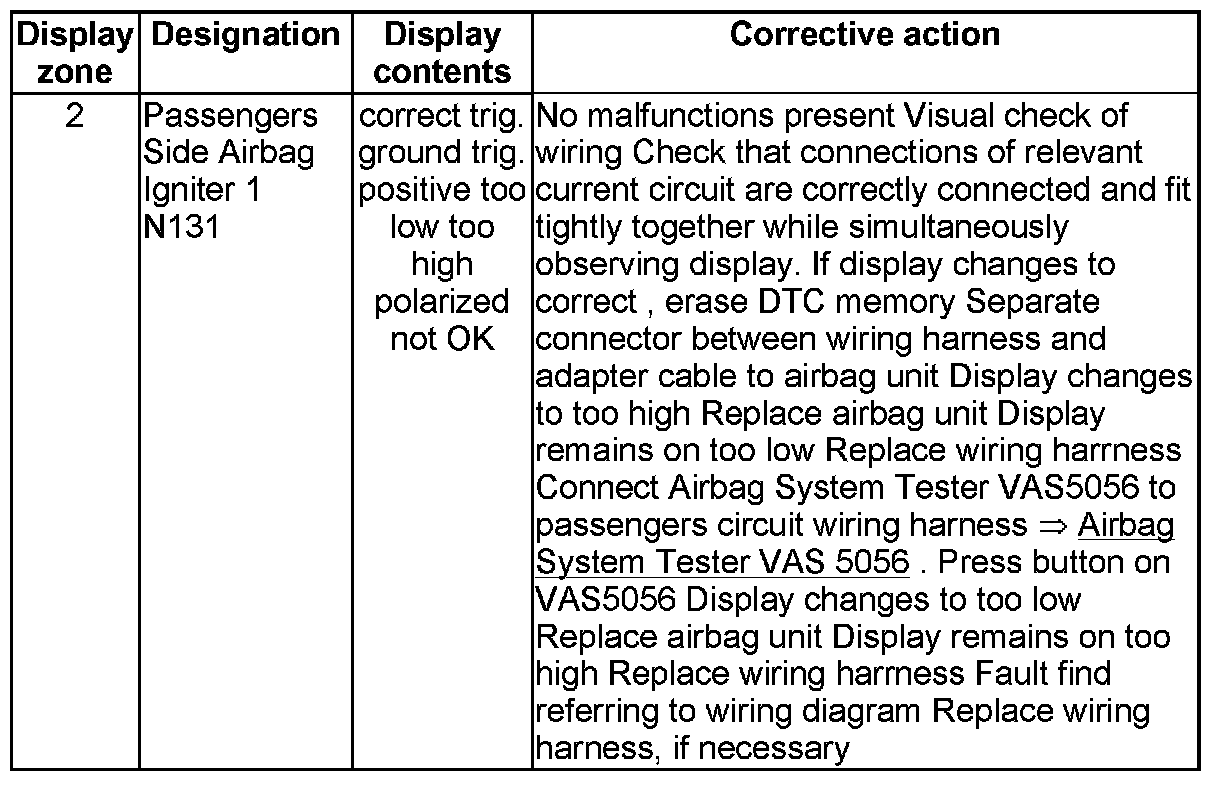

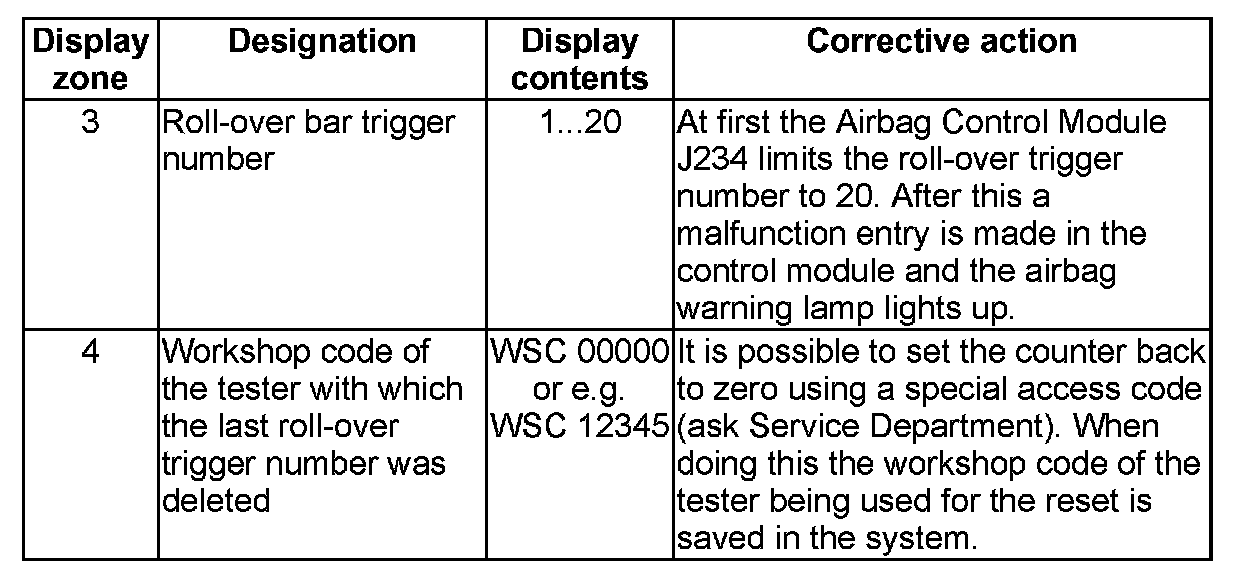

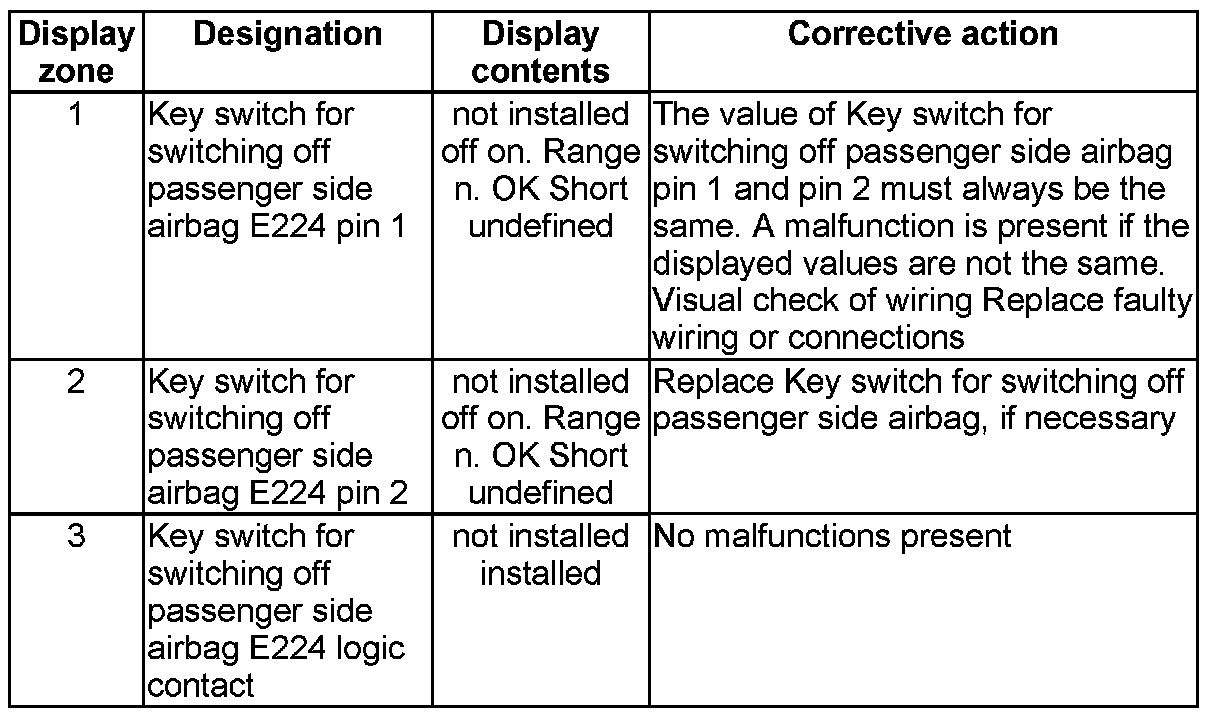

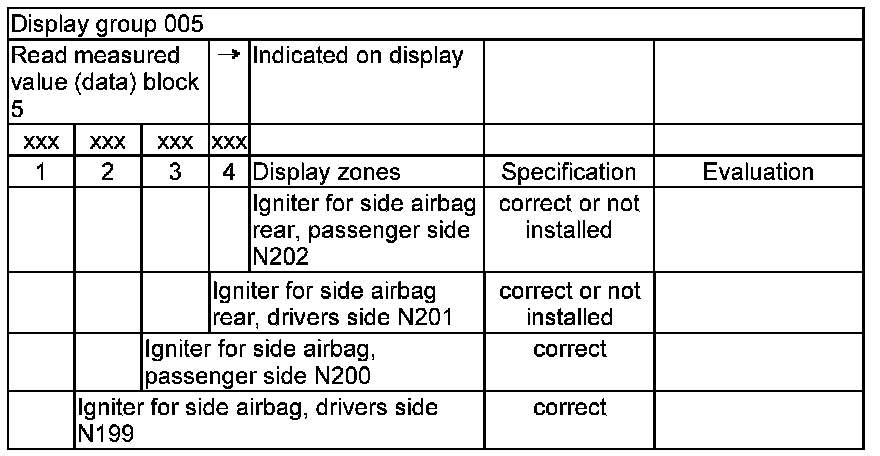

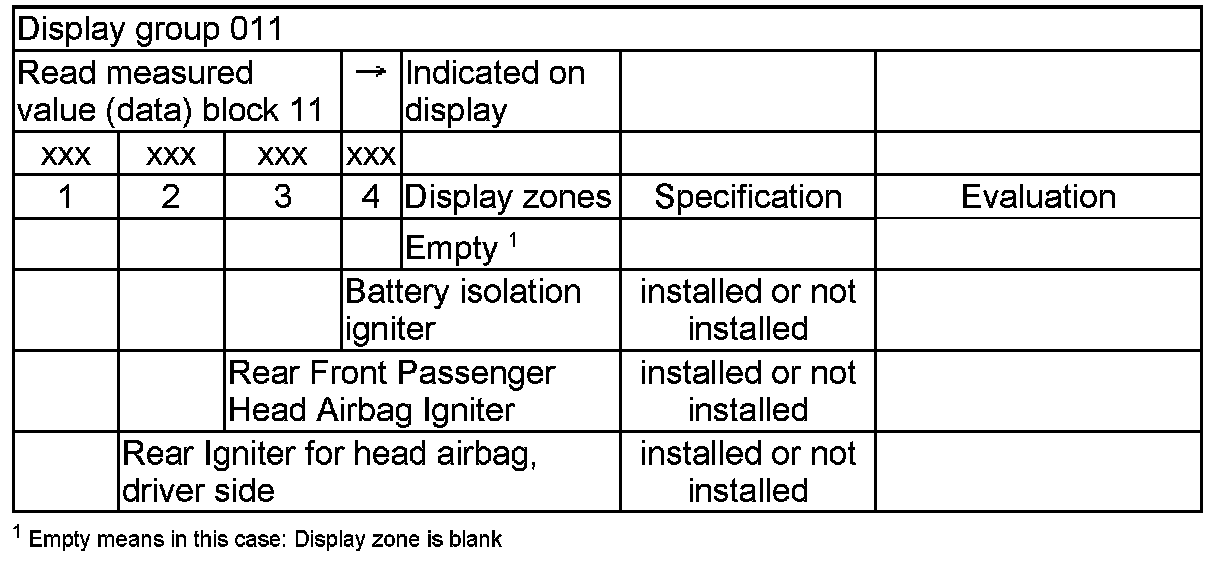

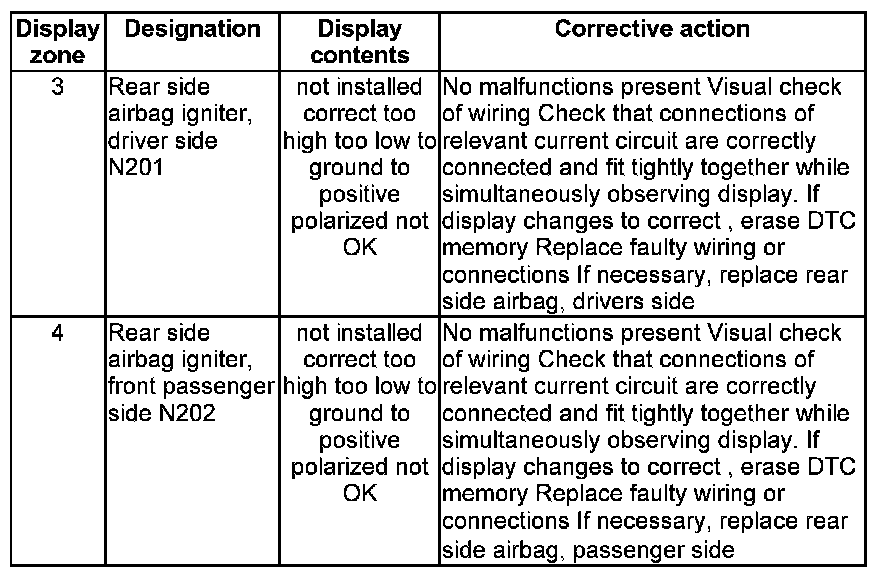

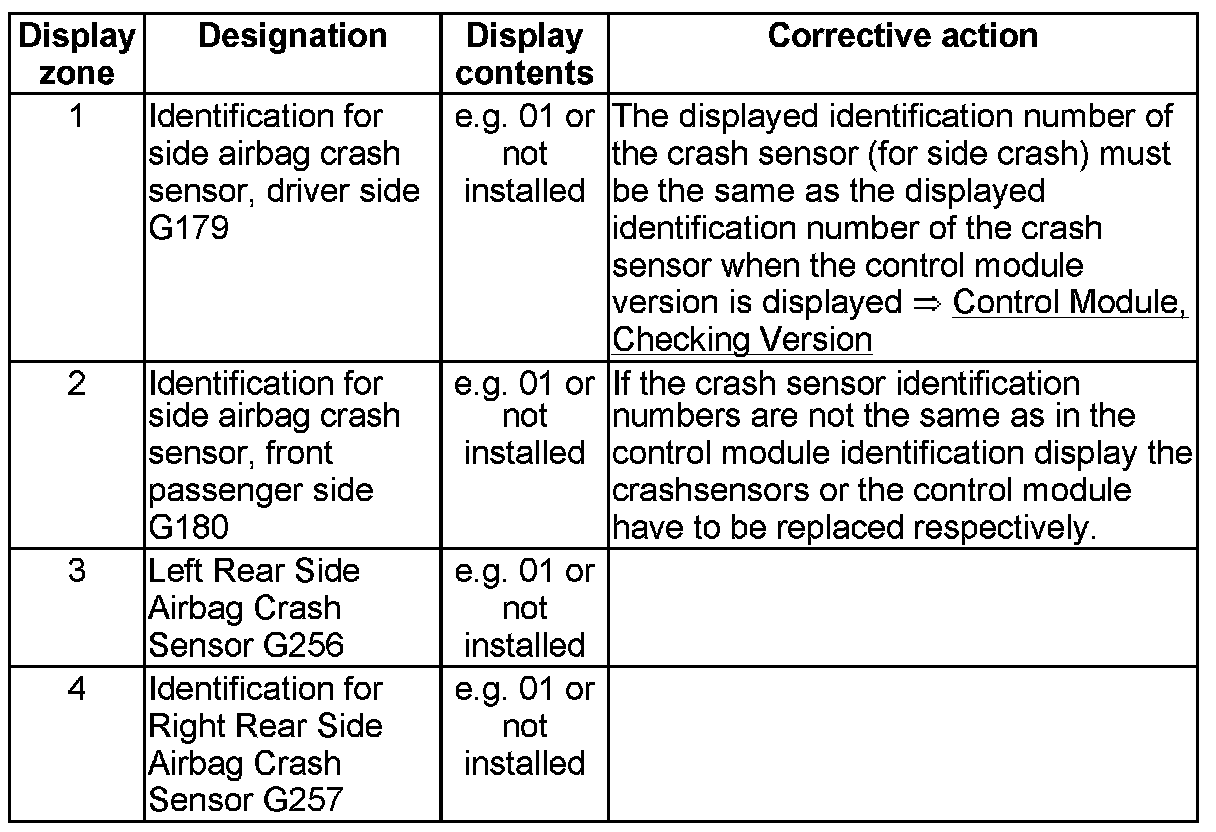

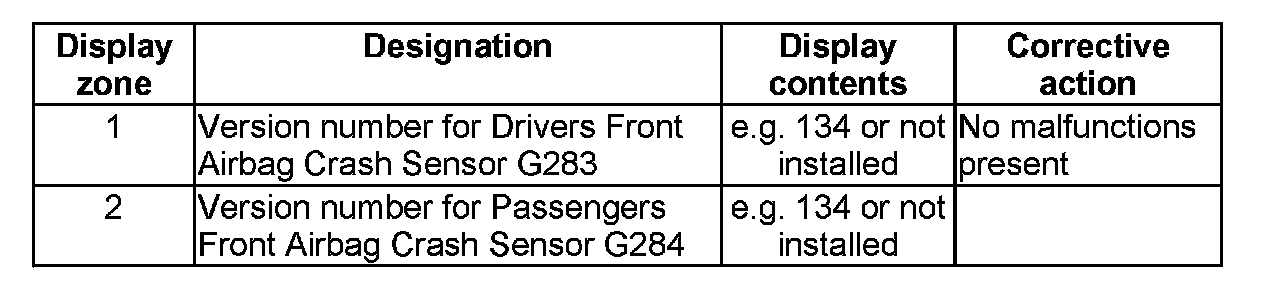

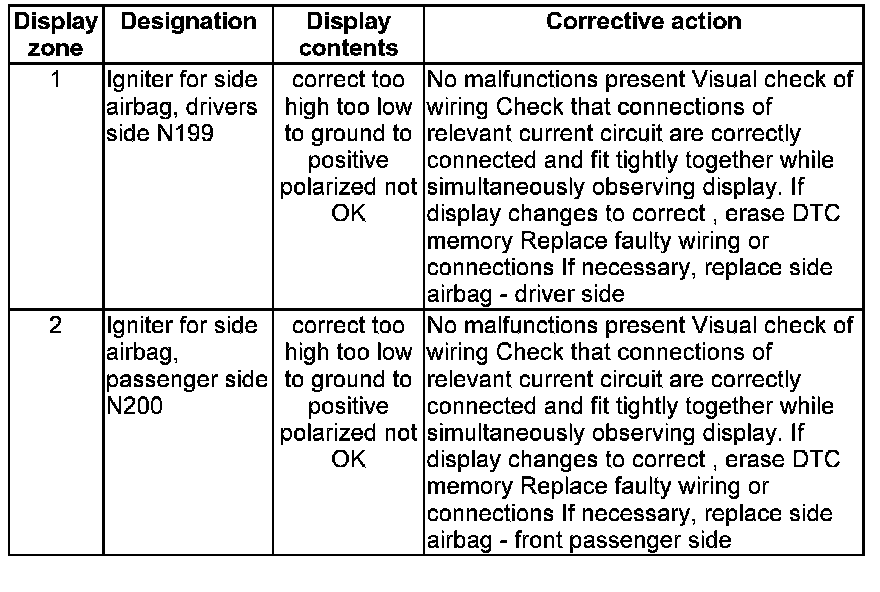

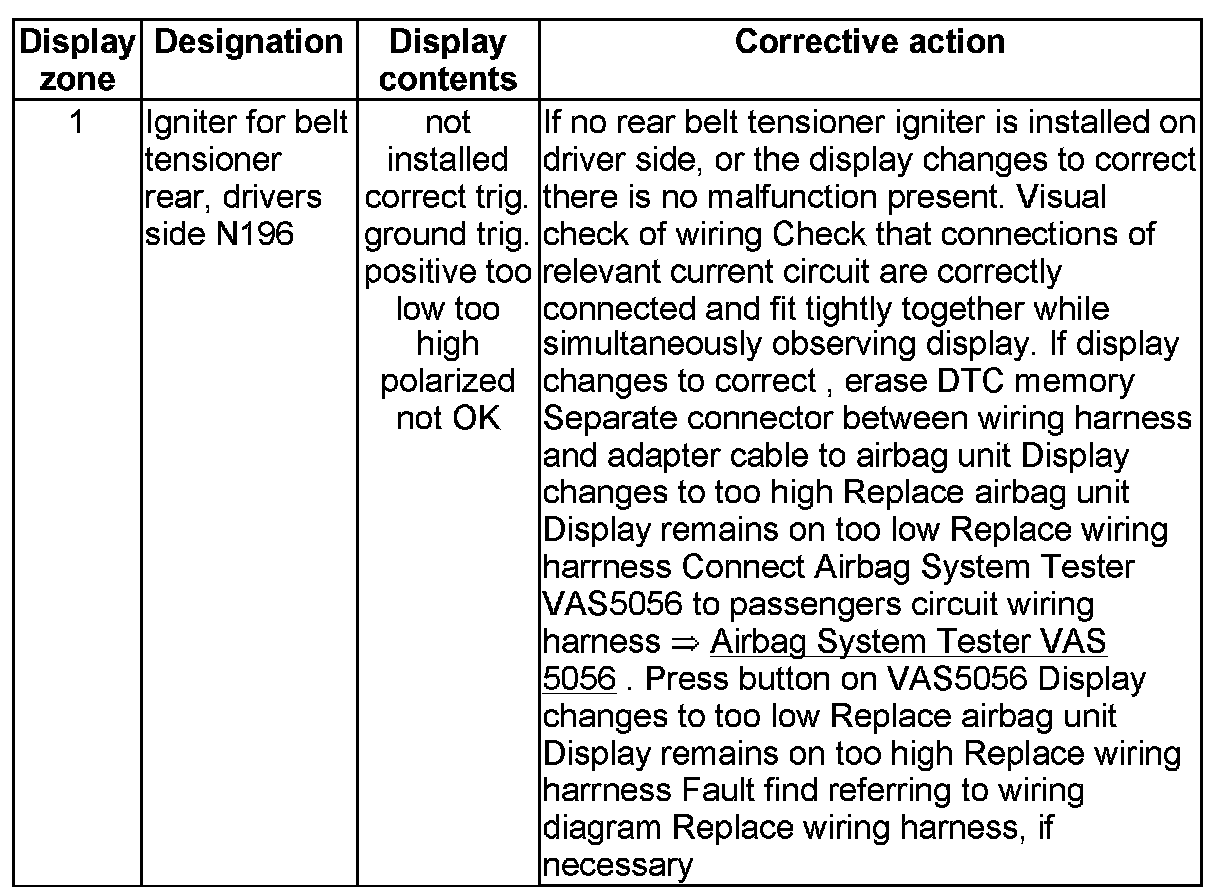

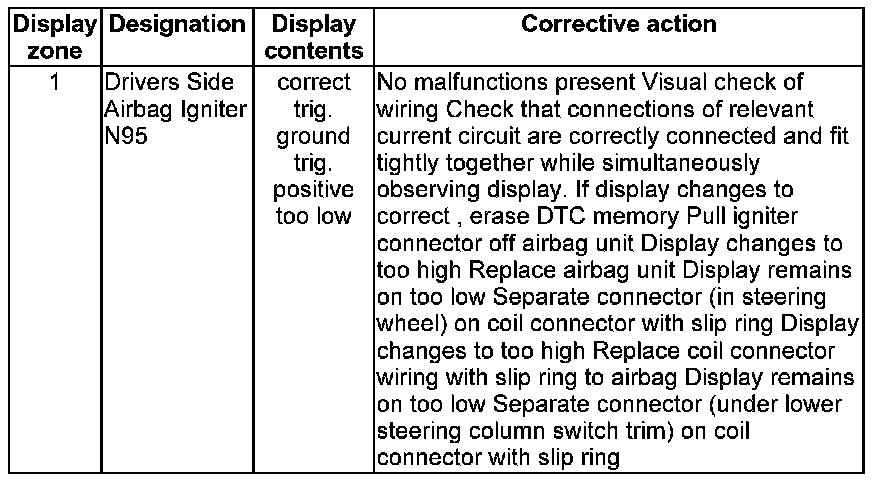

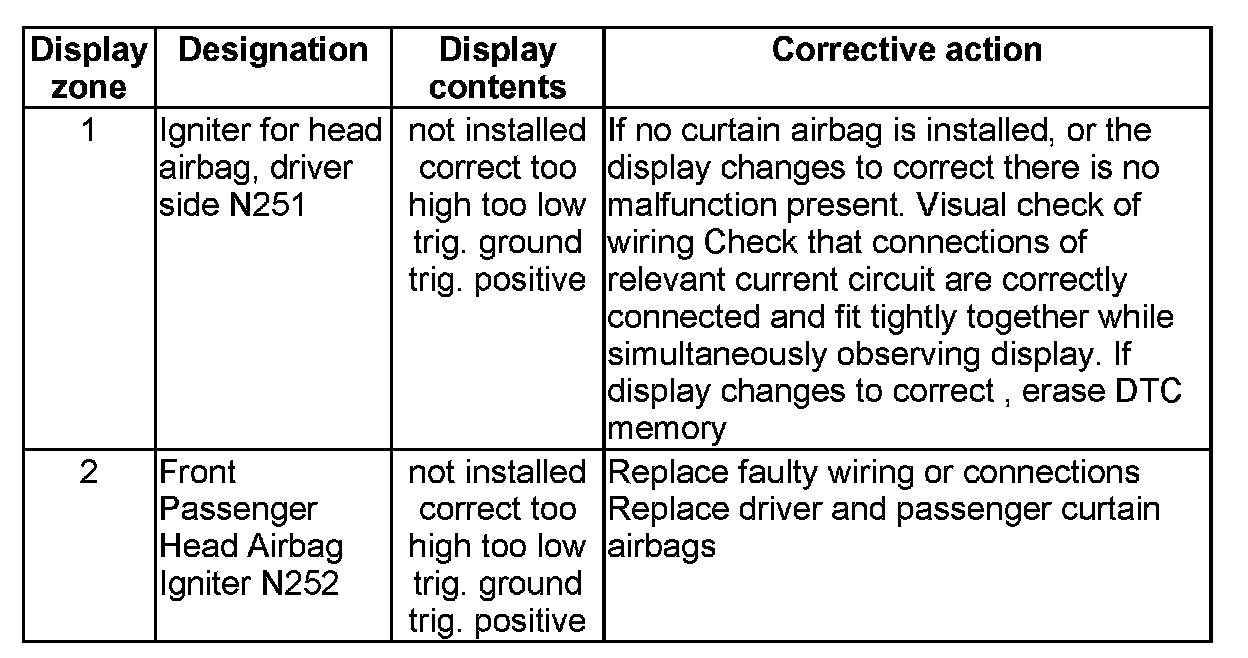

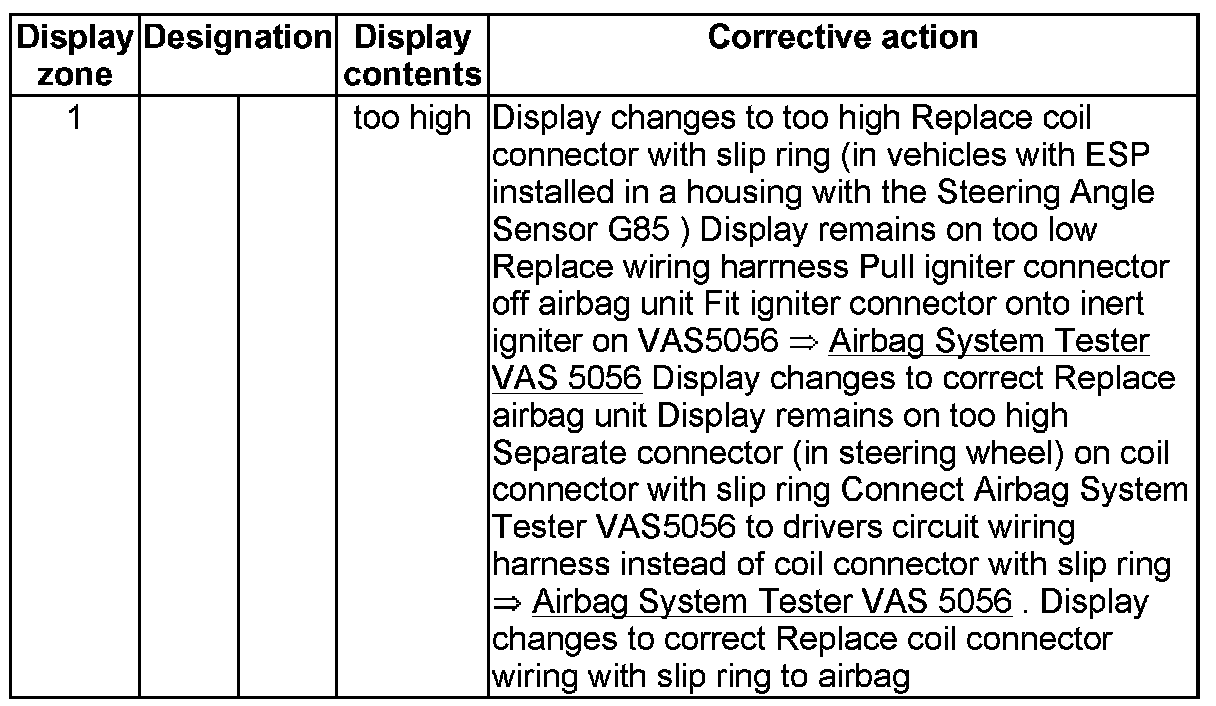

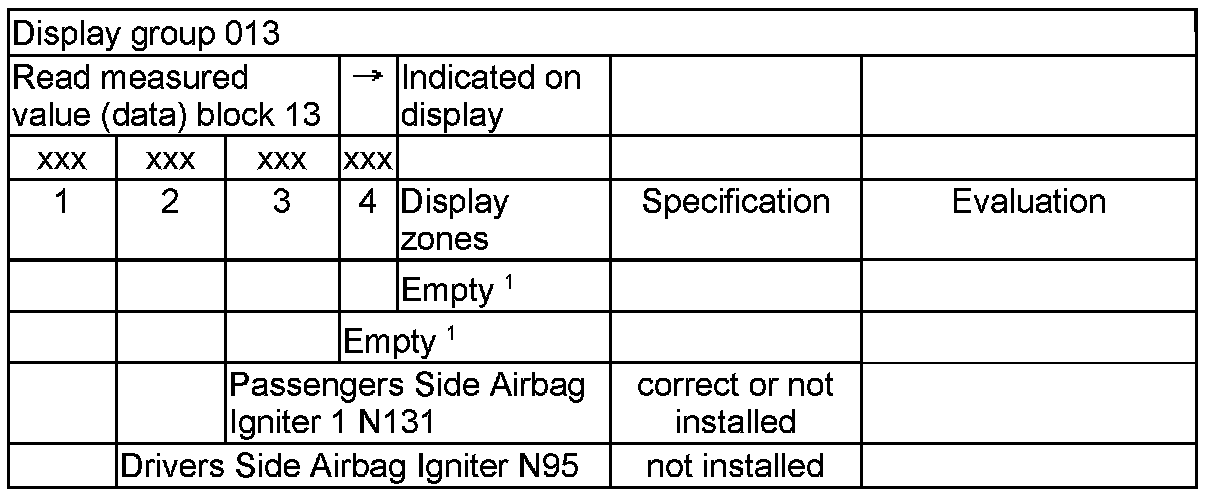

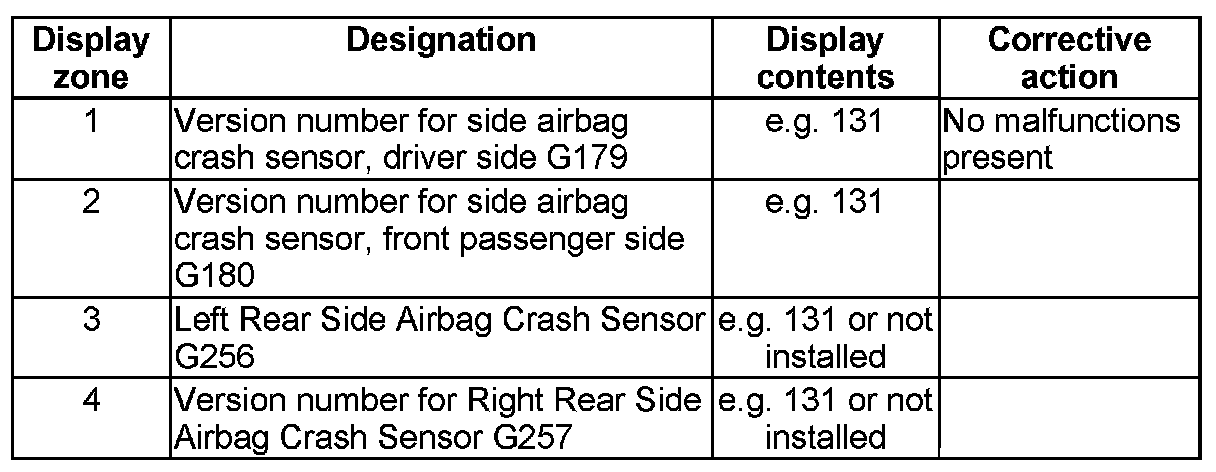

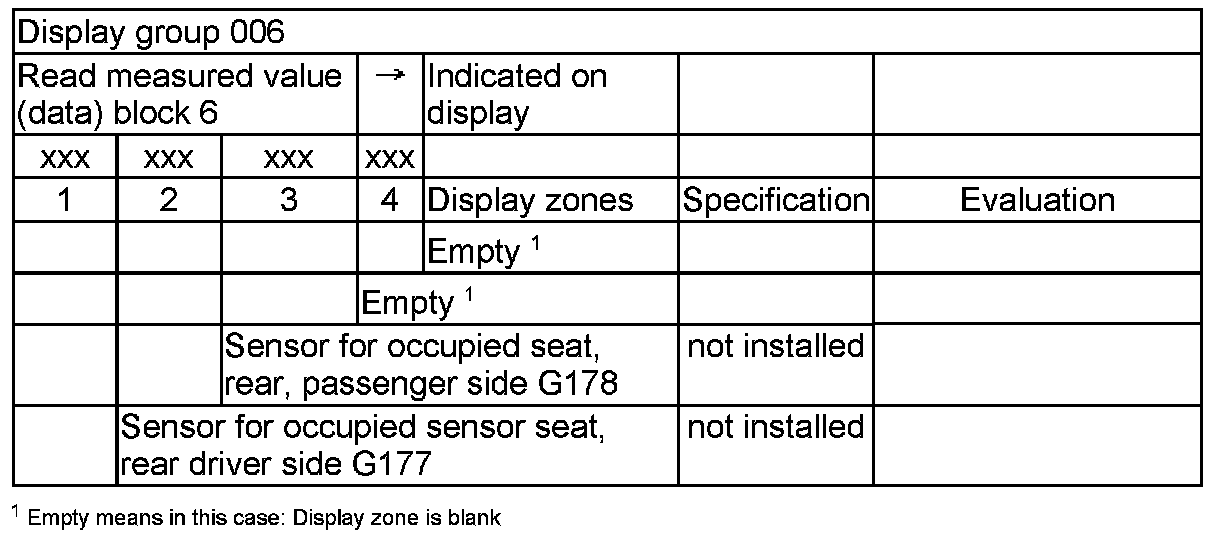

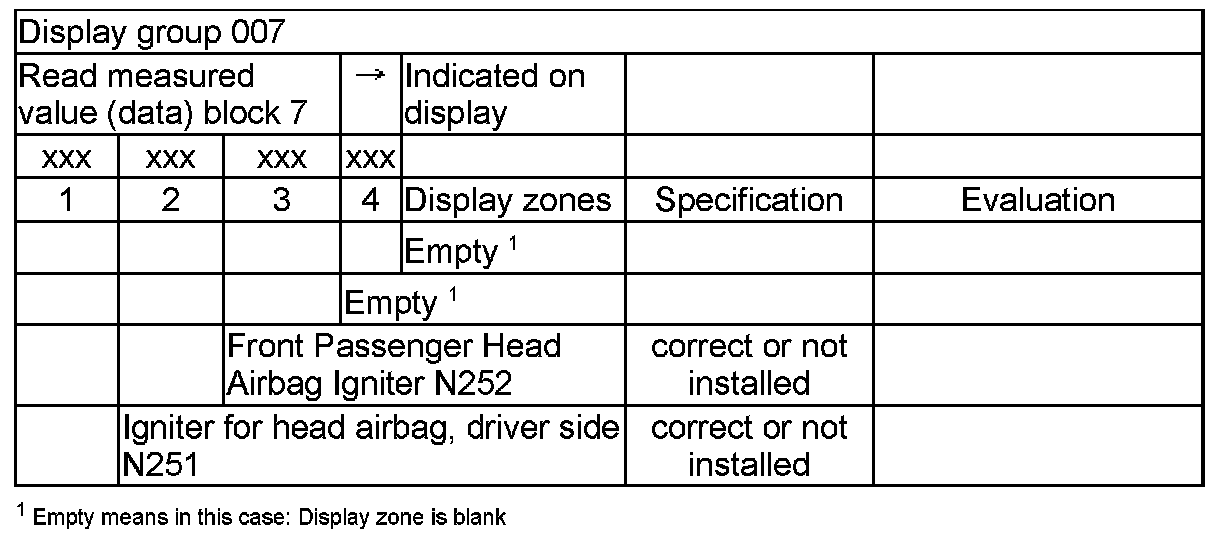

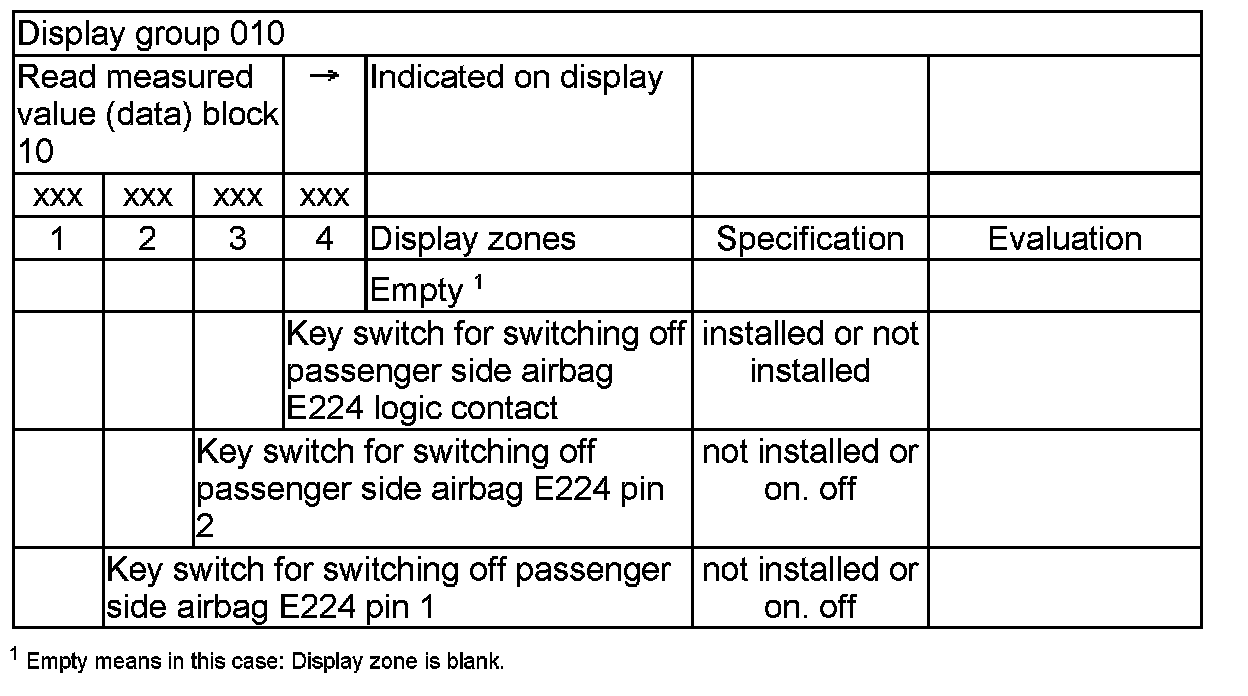

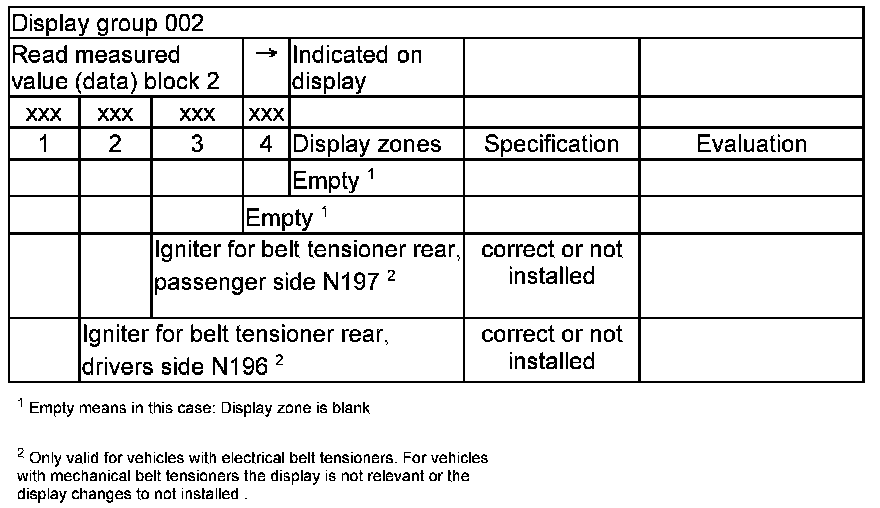

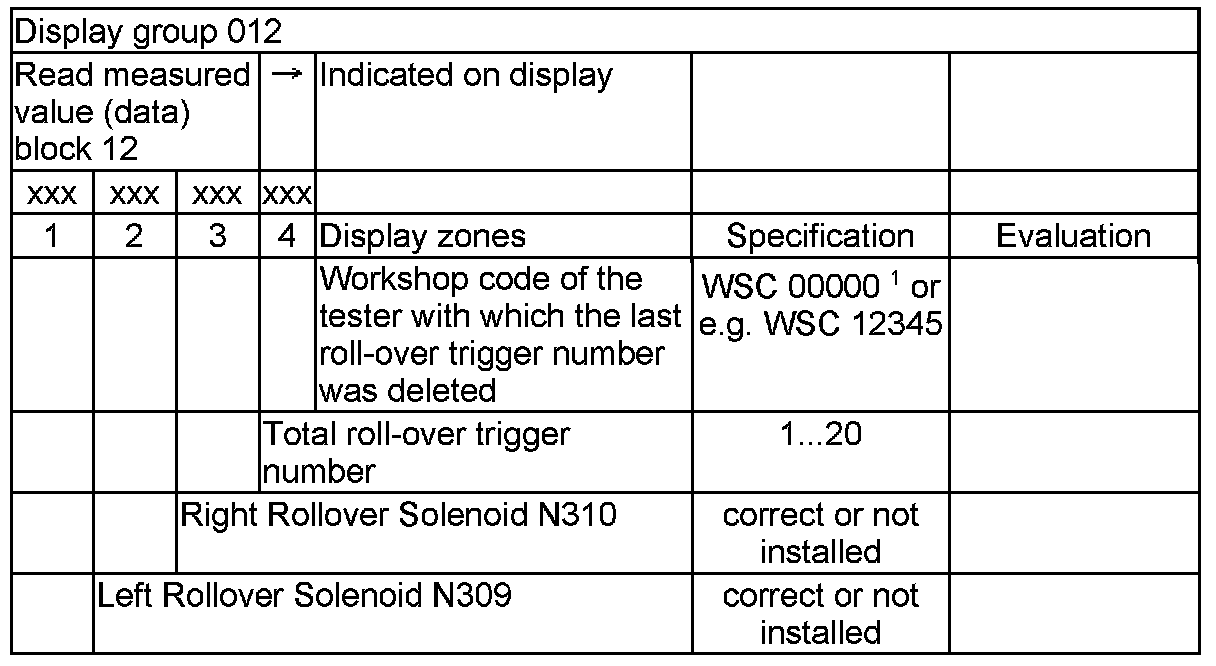

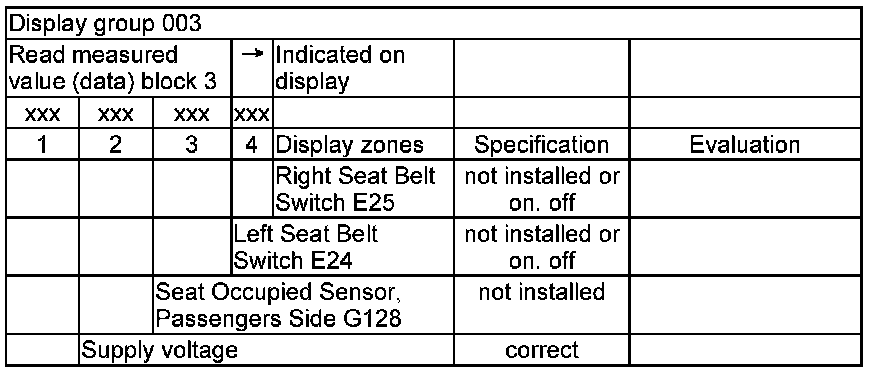

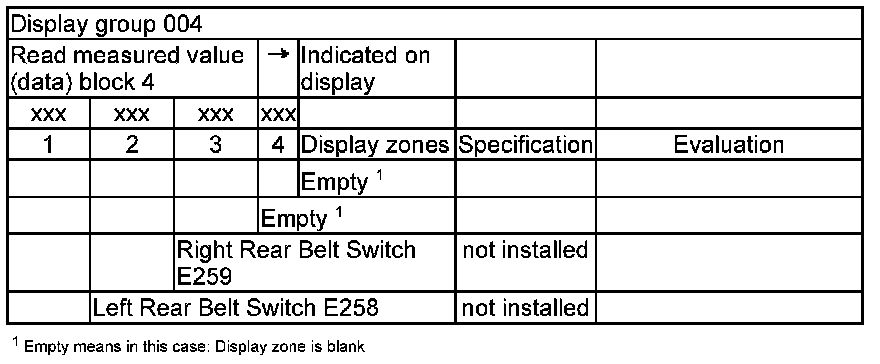

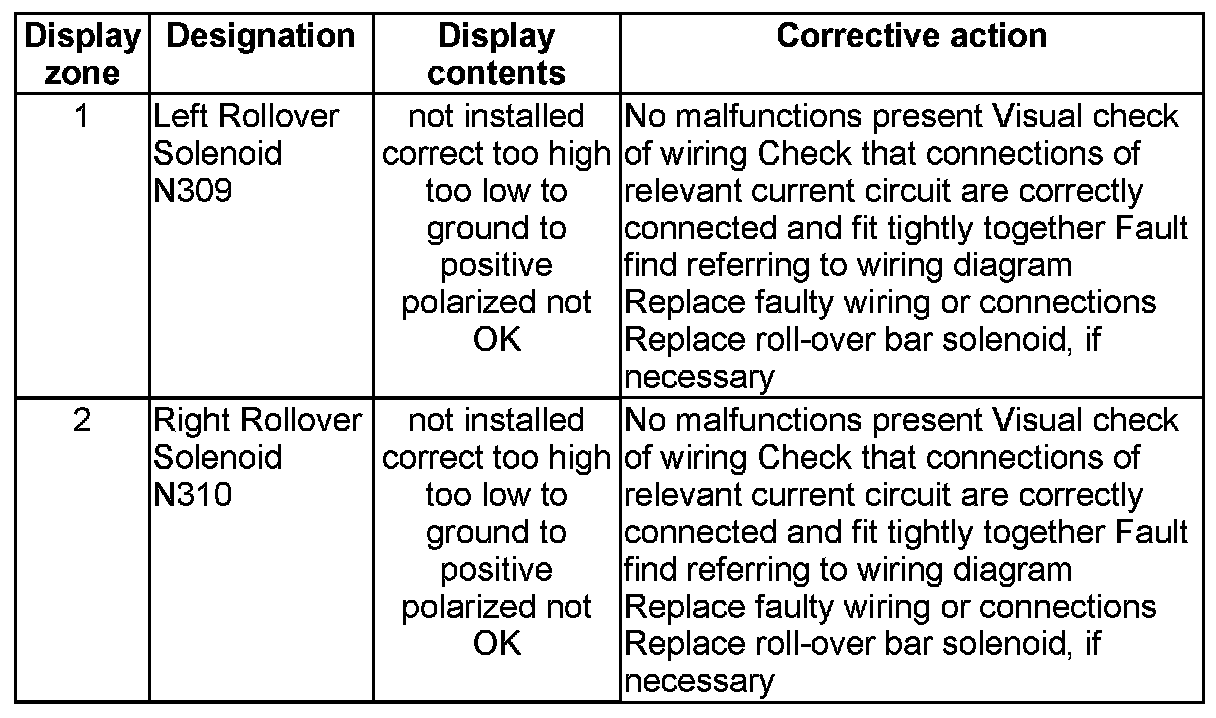

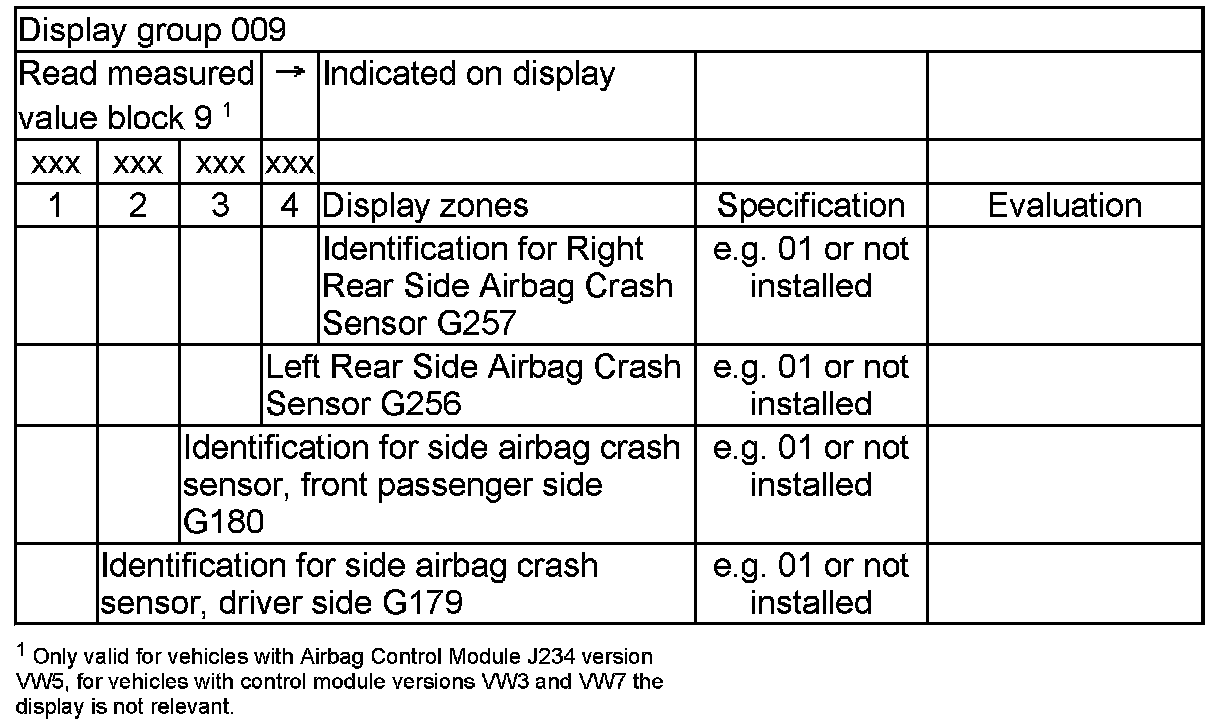

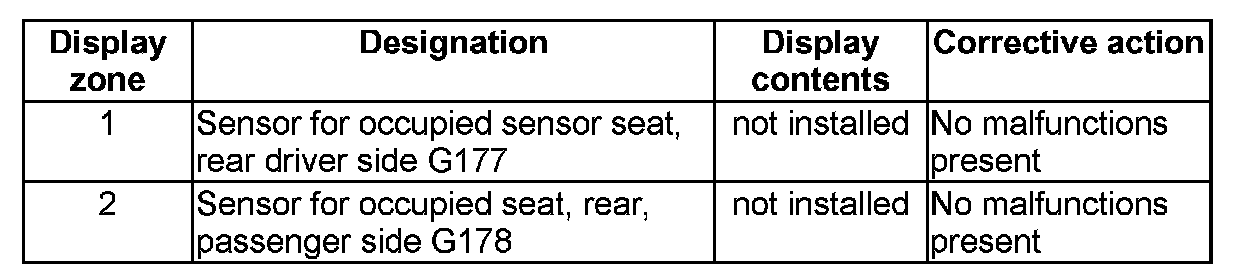

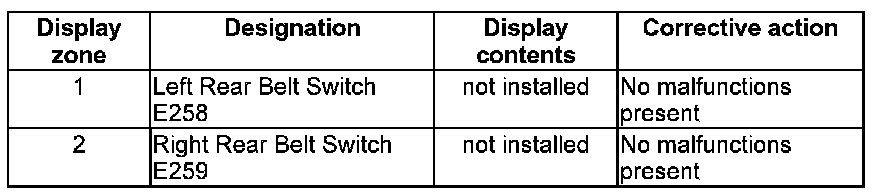

The explanation of the individual display zones on the display is found in the evaluation of display group numbers.

NOTE: Some of the display groups are only relevant for vehicles with the corresponding equipment (e.g. side airbag).

If the displayed values in all display zones are "correct":
- arrowright Press button

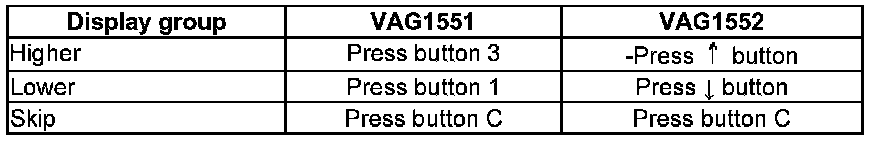

NOTE: To change to another display group proceed as follows:

- Displayed after pressing C button.

Indicated on display:
Rapid data transfer HELP
Select function XX

NOTE: Interrogate DTC memory when function "Read measured value block" has finished - Airbag System DTC Memory, Checking, Function 02.

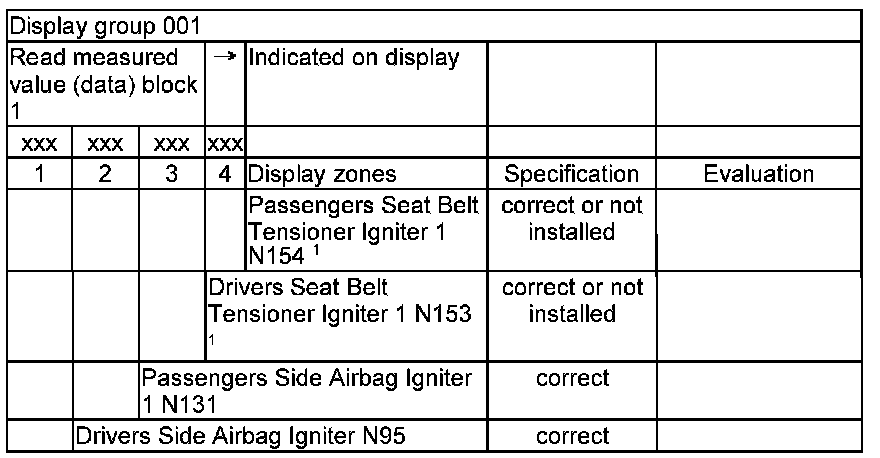

Display group 001
