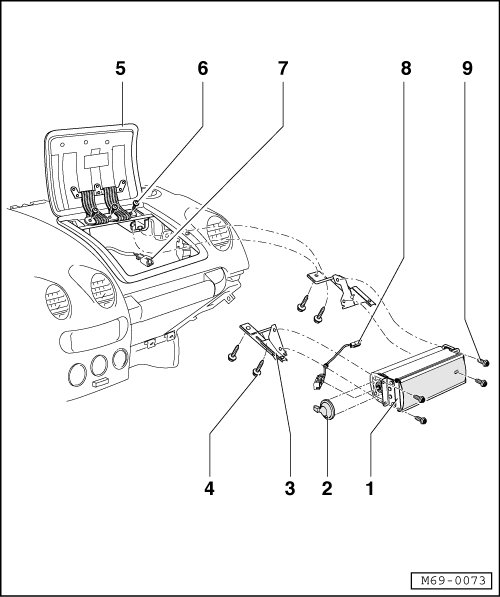

Front Passenger Airbag Unit Assembly Overview

Airbag

Front Passenger Airbag Unit Assembly Overview





1 - Front Passenger Airbag Igniter 1 (N131) and front Passenger Airbag Igniter 2 ( N132)

2 - Wiring Harness Cover for Front Passenger Airbag Unit

3 - Brace

• Always replace after airbag has deployed.

4 - Bolt

• 12 Nm

5 - Cover

6 - Bolt

• 4 Nm

• If these bolts are removed, instrument panel cover on passenger side must be replaced.

7 - Connector

• To the front passenger airbag unit wiring harness

8 - Front Passenger Airbag Unit Wiring Harness

• Attached to the front passenger airbag unit

• To the harness connector

9 - Bolt

• 12 Nm
