Driver and Front Passenger Side Airbag Assembly Overview From 05/03






Airbag

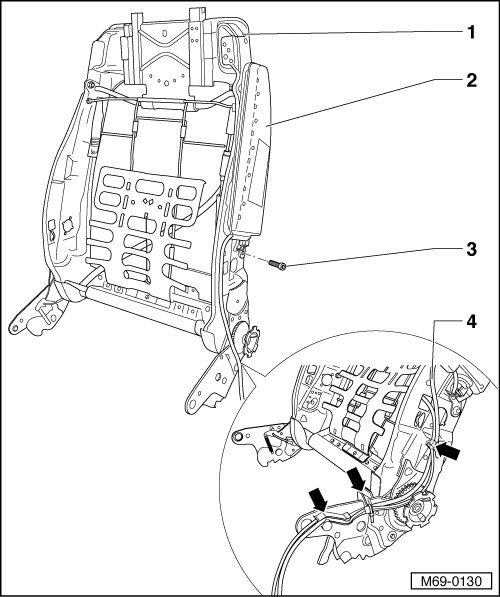

Driver and Front Passenger Side Airbag Assembly Overview from 05/03





1 - Backrest Frame

2 - Driver/Passenger Side Airbag

3 - Bolt

• 10 Nm

4 - Wiring Harness
