Backup Light Bulb: Service and Repair

Rear Lamp

Back-Up Lamp Bulbs From 07.05

Removing
- Remove back-up lamp.

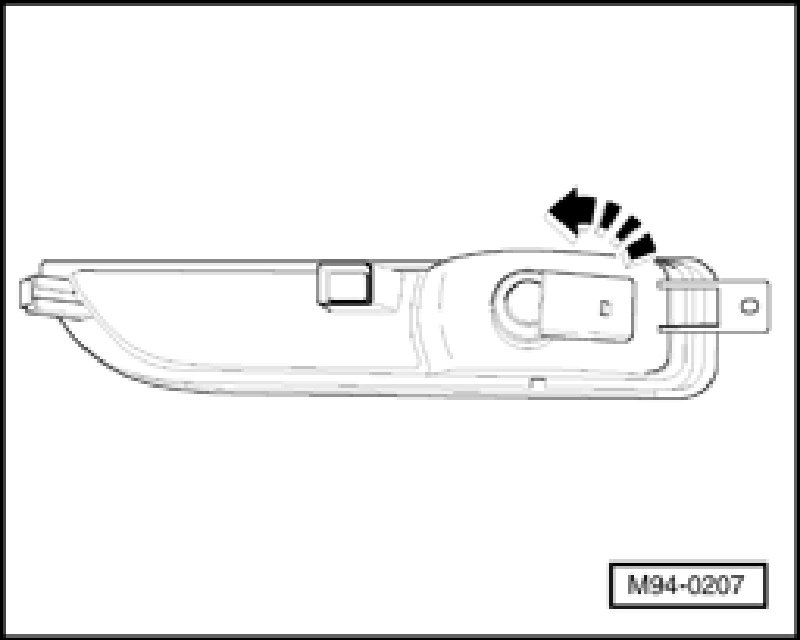

- Turn bulb holder in direction of - arrow - and remove from housing.
- Remove bulb from bulb holder.

Installing

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture and/or grease from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

Install in reverse order of removal, noting the following:

NOTE: When installing, make sure bulb holder engages in housing by turning in opposite direction shown - arrow -.
