Heating and A/C Controls Component Overview

Heating and A/C Controls Component Overview

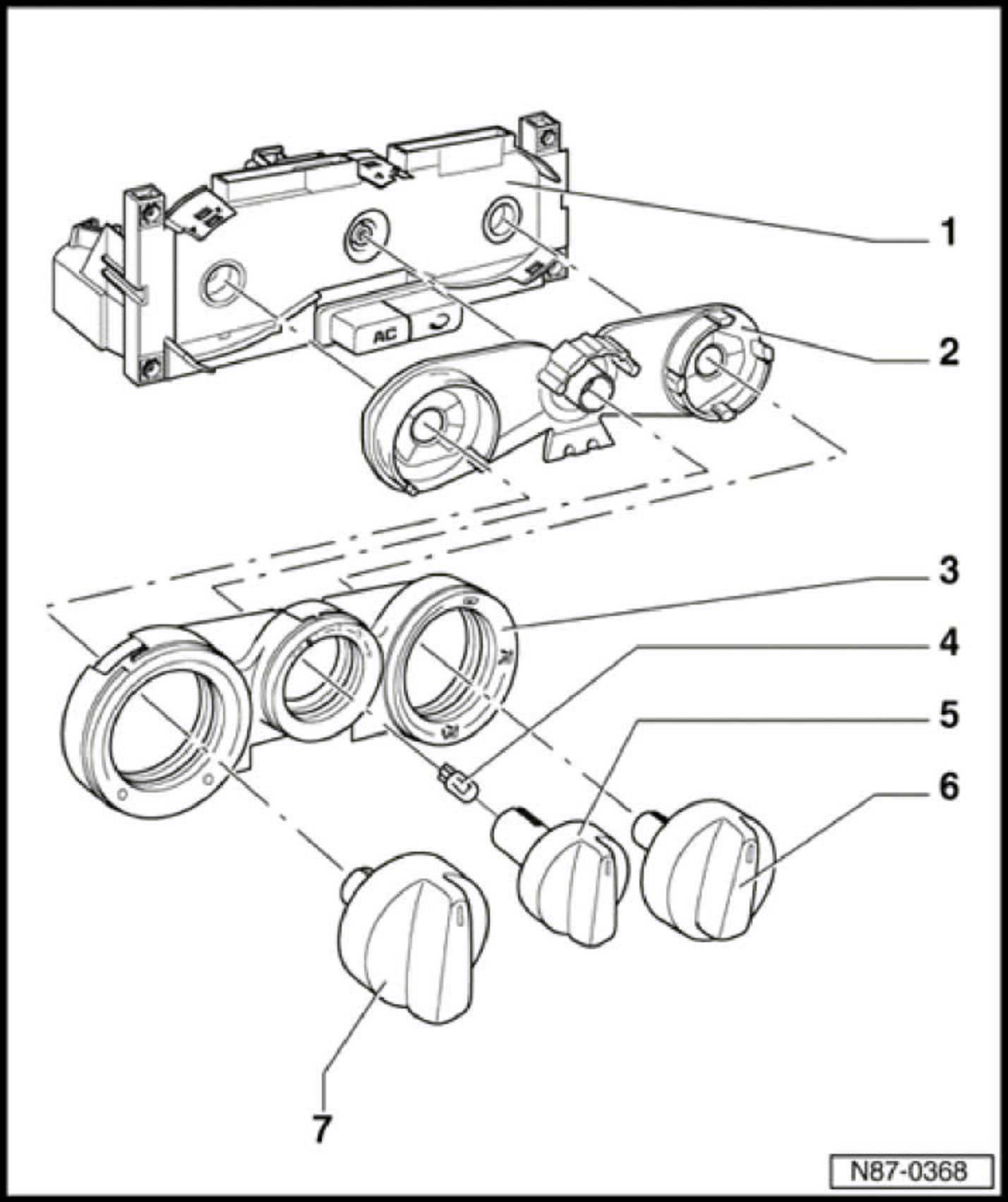

1 - Heating and A/C controls
- With A/C Evaporator Temperature Switch E35
- With Fresh Air Blower Switch E9
- With Fresh Air Blower/Recirculated Air Switch E184
2 - Illumination filter
3 - Trim panel
4 - Fresh Air Control Illumination L16
- 12 V, 1.2 W
5 - Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
6 - Rotary control
- For air distribution
- To remove: Use pliers with suitable plastic or rubber protection on jaws
7 - Rotary control
- For interior temperature
- To remove: Use pliers with suitable plastic or rubber protection on jaws
