Condenser HVAC: Locations

Condenser

First do the following:
- Discharge refrigerant system

CAUTION: The cooling system is pressurized when the engine is warm. Wear gloves and other protection and carefully release system pressure if necessary, before performing repairs.

- Drain engine coolant.
- Disconnect refrigerant pipes at condenser

CAUTION: Immediately plug open connections on A/C components to prevent dirt and moisture contamination.

- Bring front end assembly (lock carrier) into service position.

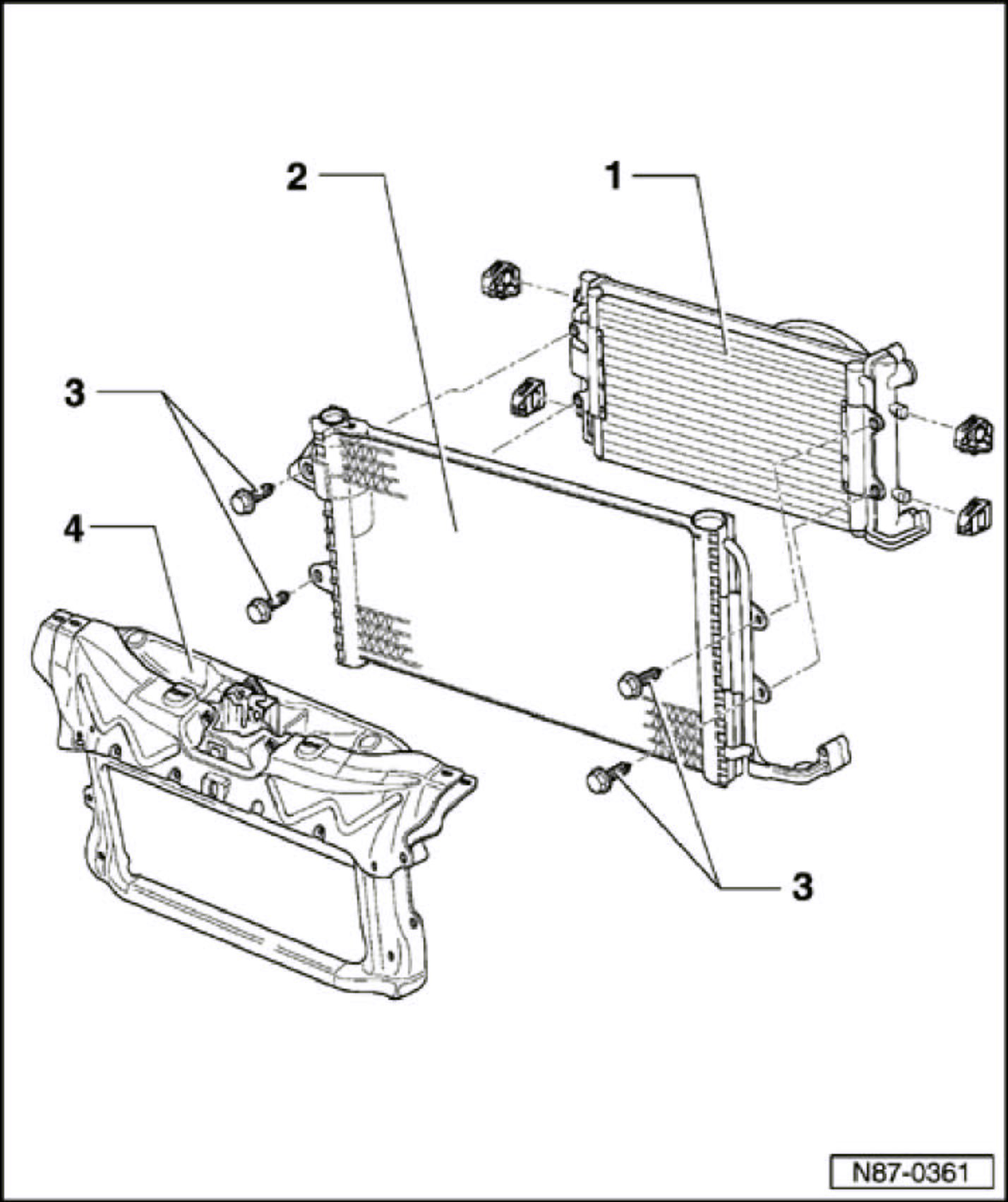

1 - Radiator
- Always use new coolant after replacement
2 - Condenser
3 - Bolt
- 8 Nm
4 - Lock carrier
- Bring into service position.
