Intake Manifold: Locations

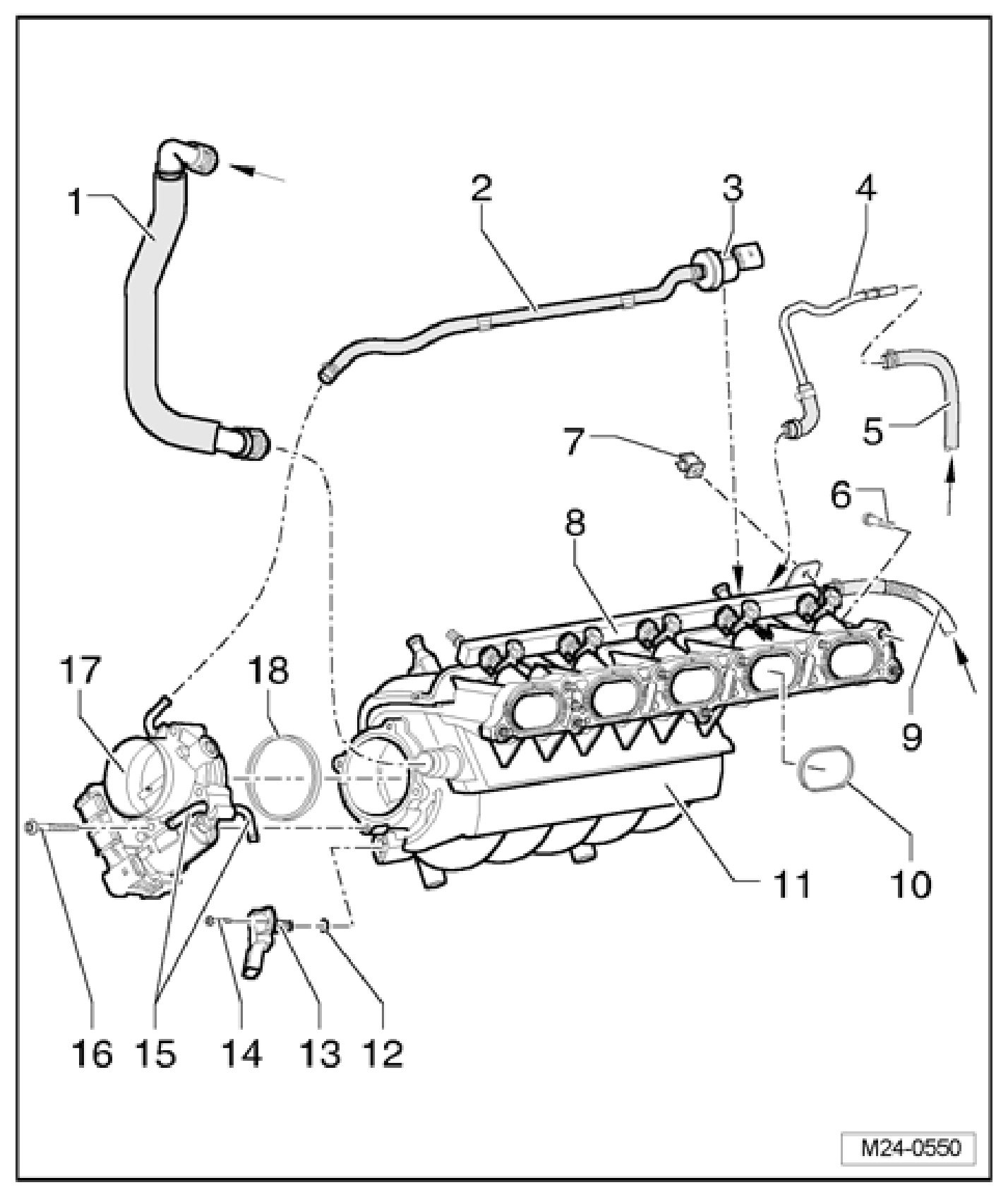

Intake Manifold with Attachments Assembly Overview







1 - Hose for crankcase ventilation
- From cylinder head cover
2 - Ventilation hose
3 - Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
4 - Line
5 - Vacuum hose
- From Leak Detection Pump (LDP) V144
6 - 9 Nm
7 - Bracket
8 - Fuel rail
- Assembly overview
9 - Fuel supply line
10 - Gasket
- Replace
- Note installation position:
- Casting mark points upward.
11 - Intake manifold
12 - O-ring
- Replace if damaged
13 - Manifold Absolute Pressure (MAP) Sensor G71
14 - 3.5 Nm
15 - Coolant connections
- Only for Throttle Valve Control Module J338 heated by coolant
16 - 6.5 Nm
17 - Throttle valve control module J338
- With Throttle Drive (for Electronic Power Control (EPC)) G186, Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187 and Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188
- During replacement, erase adaptation values and adapt Engine Control Module (ECM) to throttle valve control module see Vehicle Diagnosis, Testing and Information System VAS 5051 "Guided Functions".
18 - Seal
- Replace if damaged
