Crankshaft Sealing Flange, Ribbed Belt Side

Crankshaft Sealing Flange, Ribbed Belt Side

Special tools, testers and auxiliary items required
^ Trim removal wedge 3409
^ Assembly sleeve T03004
^ Hand drill with plastic brush attachment
^ Protective glasses

Removing
- Remove ribbed belt for A/C compressor.
- Secure crankshaft.
- Remove belt pulley on crankshaft.





- Remove tensioning element - 1 -.
- Remove bolts - 2 -.





- Begin at alignment bushings - arrows - to press off sealing flange - 1 - using a suitable screwdriver - A -.
- Use trim removal wedge 3409 to support screwdriver in order to prevent damage to sealing flange of cylinder block.
- Sealing flange is damaged while removing.
- Press off sealing flange completely.

Note:
^ After removing sealing flange, clean trim removal wedge 3409 which intended for the removal of parts of interior equipment.

Installing

CAUTION: To prevent injuries from shavings, wear protective goggles and protective clothing.

- Remove remainder of sealant from cylinder block e.g. using a rotating plastic brush.

CAUTION: Make sure that no sealant residue enters the engine.

- Clean sealing surface of cylinder block and crankshaft journals; they must be free of oil and grease.

Note:
^ Do not additionally oil or grease sealing lip of sealing flange!
^ The following work steps must be followed so that the sealing lip of sealing flange does not roll itself up when installing.





- Widen sealing lip of new sealing flange as depicted using assembly sleeve T03004
- The surface - A - is outer side.





- After a short time, remove assembly sleeve T03004 and slide it rotated 180 degree into sealing ring.
- Assembly sleeve T03004 must stand out approx. 3 mm on inner side - B - The surface - A - is outer side. The surface - B - is inner side (sealing surface).





- Cut tube nozzle at front marking (dia. approx. 2 mm).

Note:
^ The sealing flange for crankshaft (belt pulley side) must be installed within 5 minutes after application of sealant.





- Apply sealant bead - A - as depicted into groove of sealing flange.

^ Width of sealant bead: 2.5 to 3.0 mm
^ Height of sealant bead above sealing surface: approx. 1.0 mm





- Insert sealing flange using assembly sleeve T03004 on crankshaft journals and press uniformly on cylinder block.
- Tighten bolts - A - uniformly in diagonal sequence.

The rest of installation follows reverse of removal procedures. When doing this note the following:

^ Remove locking pin T40069 from cylinder block at rear and install plug.

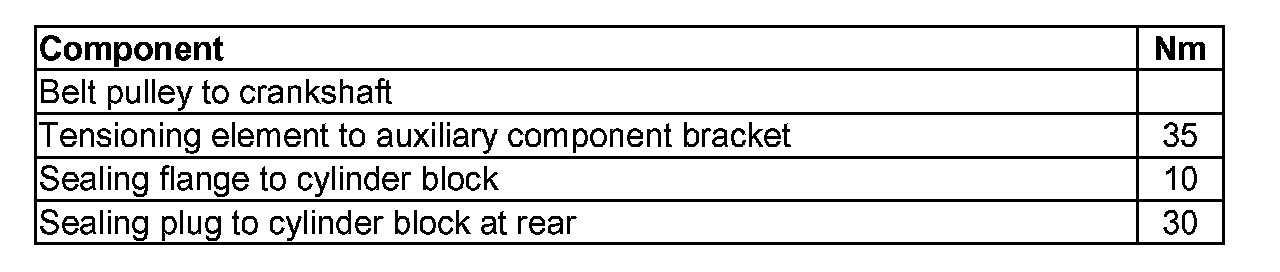

Tightening torques
