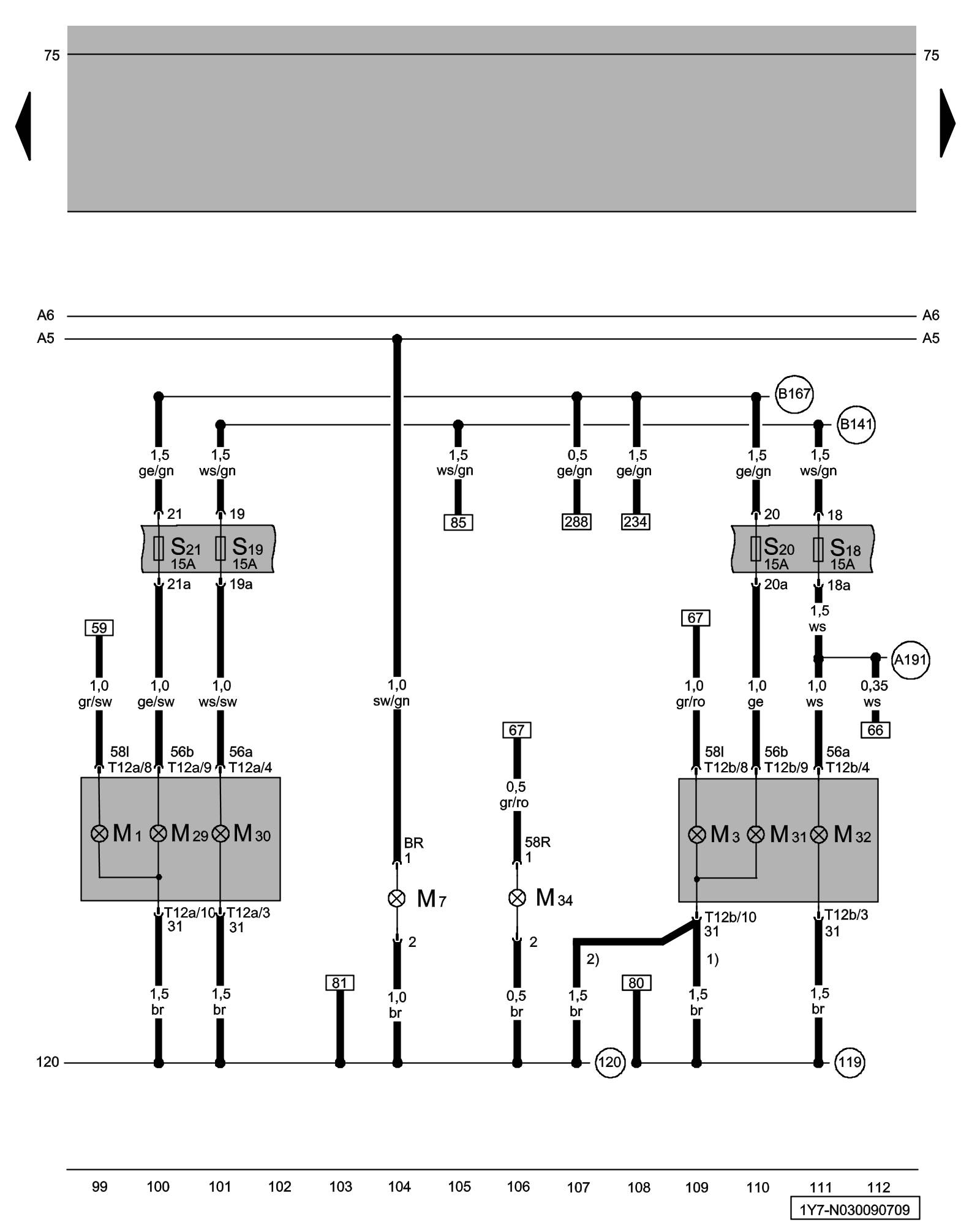

Diagram 630/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left Parking Lamp, Right Parking Lamp, Right Front Turn Signal Lamp, Left Low Beam Headlamp, Left High Beam Headlamp, Right Low Beam Headlamp, Right High Beam Headlamp, Right Front Side Marker Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

M1 - Left Parking Lamp

M3 - Right Parking Lamp

M7 - Right Front Turn Signal Lamp

M29 - Left Low Beam Headlamp

M30 - Left High Beam Headlamp

M31 - Right Low Beam Headlamp

M32 - Right High Beam Headlamp

M34 - Right Front Side Marker Lamp

S18 - Fuses (on fuse/relay panel)

S19 - Fuses (on fuse/relay panel)

S20 - Fuses (on fuse/relay panel)

S21 - Fuse (on fuse/relay panel)

T12a - 12-Pin Connector

T12b - 12-Pin Connector

(119) - Ground Connection 1 (in headlamp wiring harness)

(120) - Ground Connection 2 (in headlamp wiring harness)

(A191) - Connection (56aR) (in instrument panel wiring harness)

(B141) - Plus Connection 1 (56a) (in interior wiring harness)

(B167) - Connection (56b) (in interior wiring harness)

1) - Through June 2007

2) - From July 2007
