Diagram 630/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

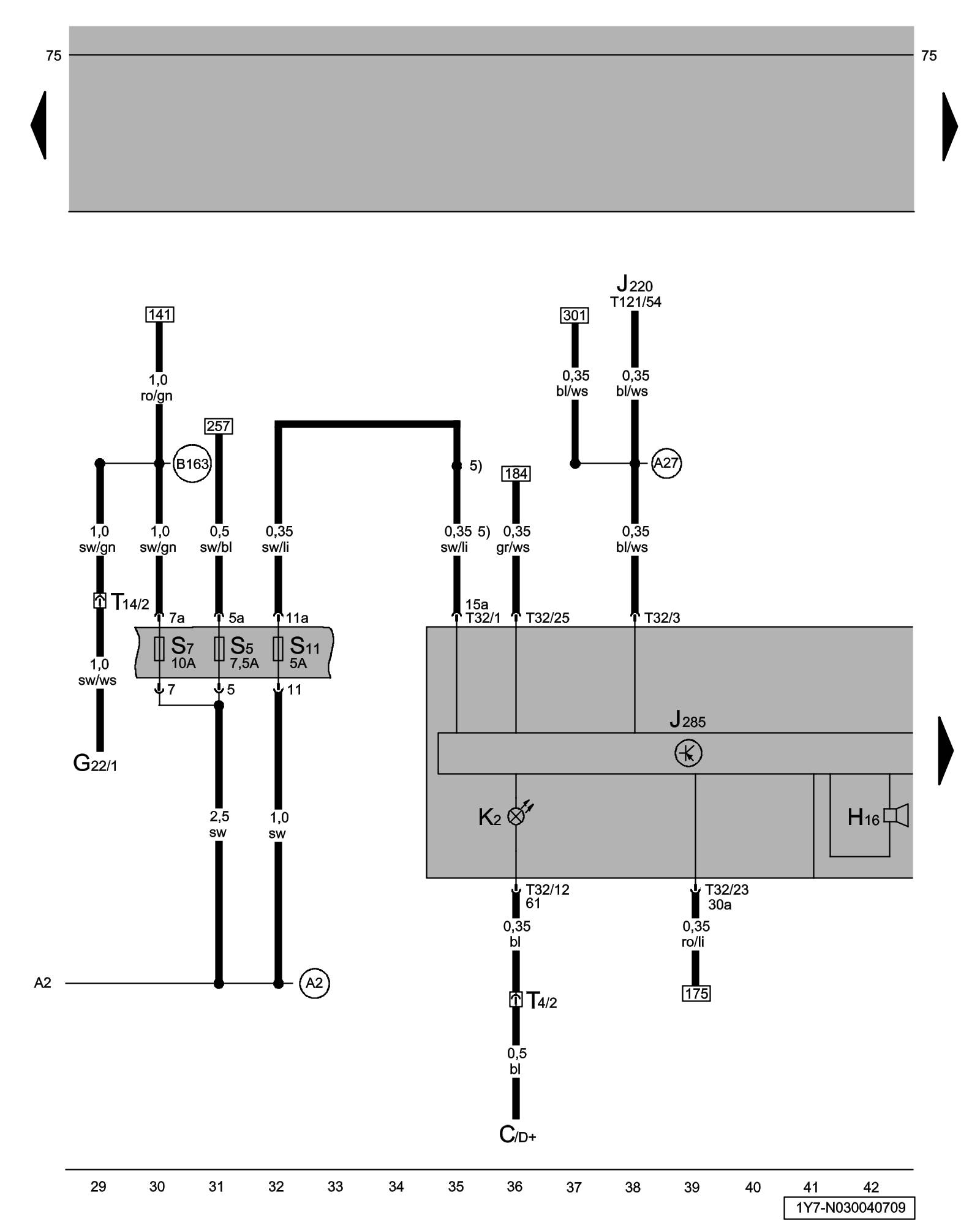

Light Switched -On- Warning Buzzer, Instrument Cluster Control Module, Generator (GEN) Warning Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C - Generator (GEN)

G22 - Speedometer Vehicle Speed Sensor (VSS) Locations

H16 - Light Switched -On- Warning Buzzer

J220 - Motronic Engine Control Module (ECM) Locations

J285 - Instrument Cluster Control Module

K2 - Generator (GEN) Warning Lamp

S5 - Fuses (on fuse/relay panel)

S7 - Fuses (on fuse/relay panel)

S11 - Fuses (on fuse/relay panel)

T4 - 4-Pin Connector, in engine compartment, left

T14 - 14-Pin Connector

T32 - 32-Pin Connector, blue, on instrument cluster

T121 - 121-Pin Connector, on Motronic Engine Control Module

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A27) - Speed Signal Connection (in instrument panel wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

5) - Through June 2009

Previous Diagram 630/3 (Tracks 15-28)

Next Diagram 630/5 (Tracks 43-56)
