Diagram 630/24 (Tracks 309-322)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


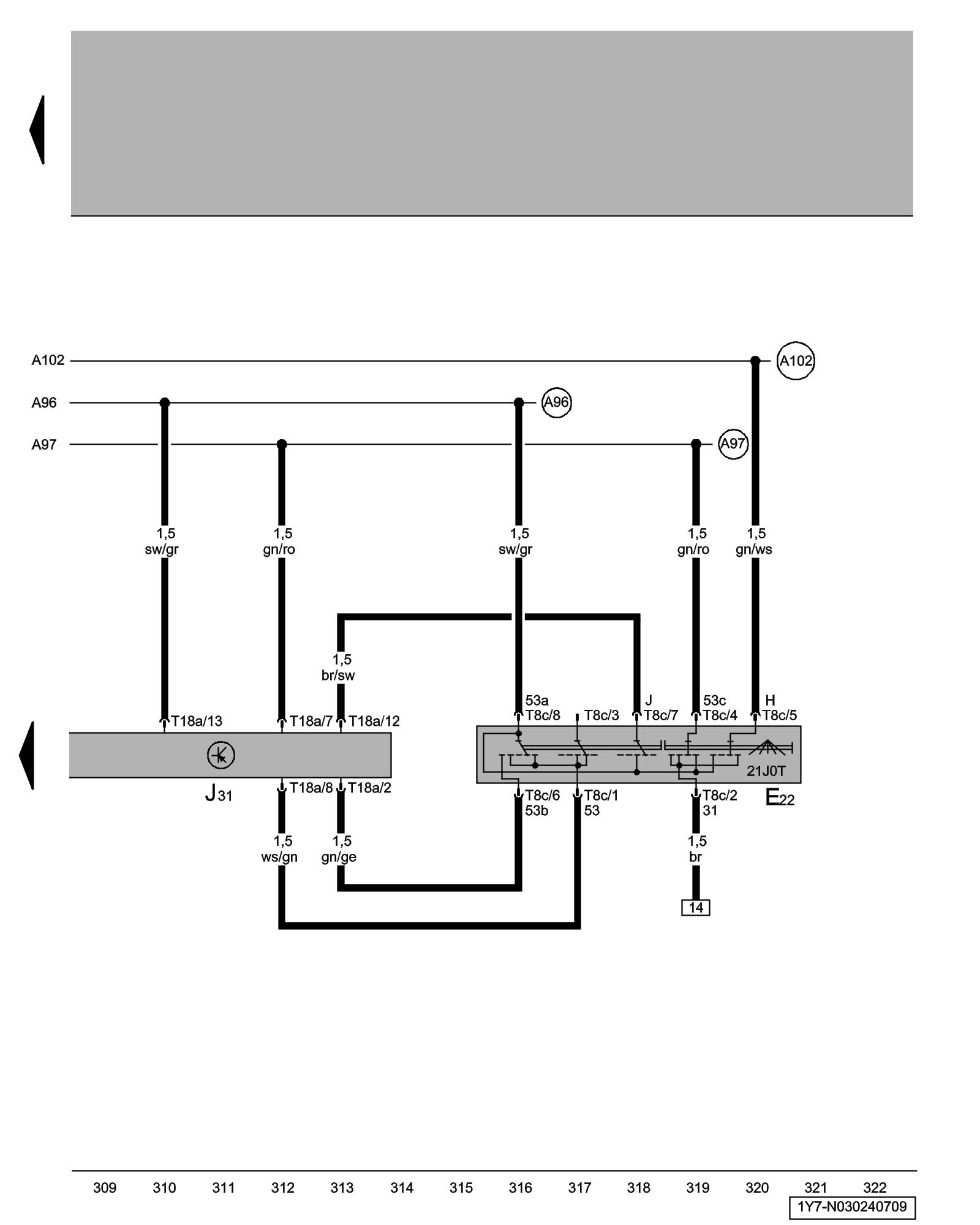

Windshield Wiper Intermittent Switch, Wiper/Washer Intermittent Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E22 - Windshield Wiper Intermittent Switch

J31 - Wiper/Washer Intermittent Relay

T8c - 8-Pin Connector, on E22

T18a - 18-Pin Connector, on J31

(A96) - Connection (53a) (in instrument panel wiring harness)

(A97) - Connection (53) (in instrument panel wiring harness)

(A102) - Windshield Wiper Connection (in instrument panel wiring harness)
