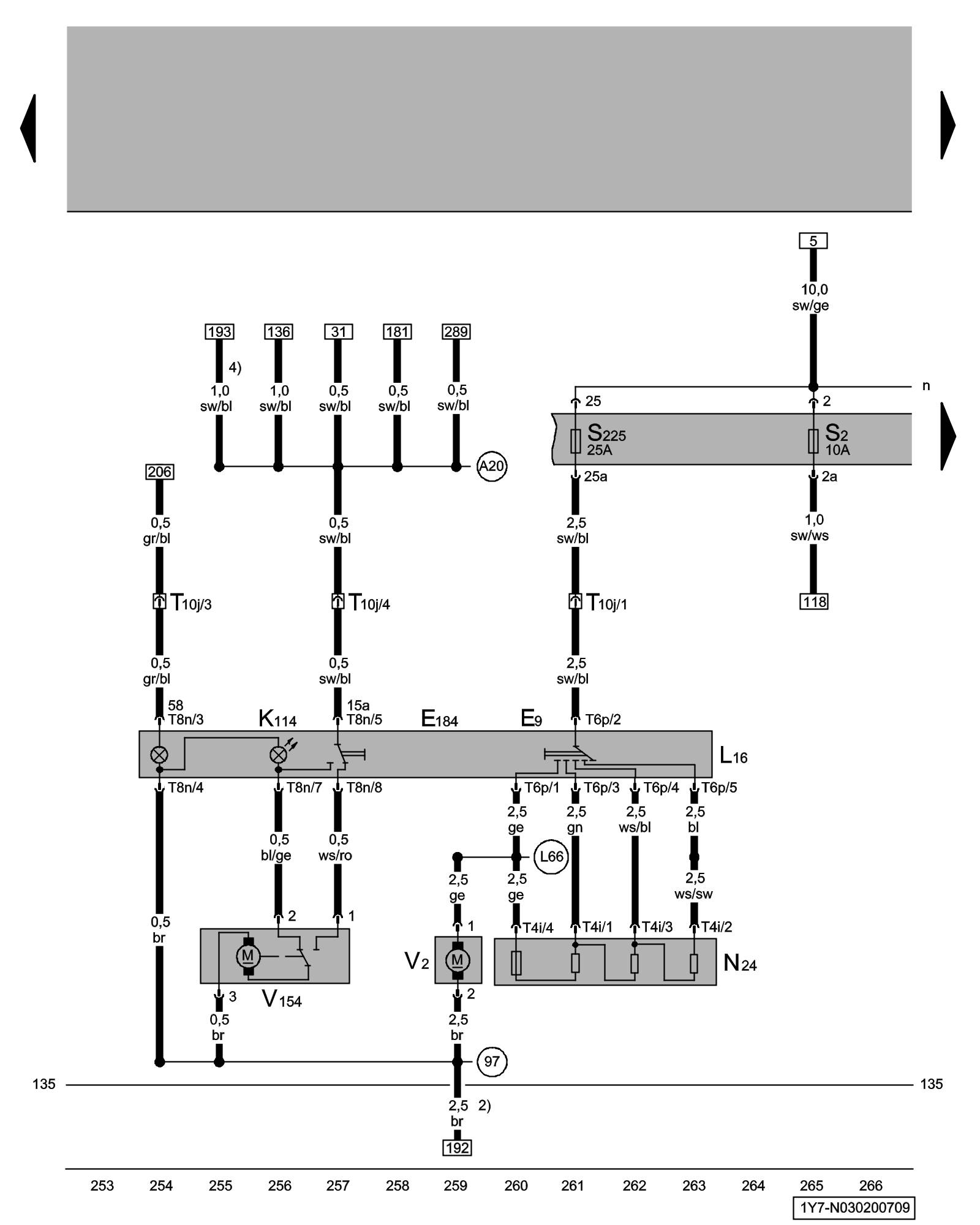

Diagram 630/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fresh Air Blower Switch, Fresh Air Blower/Recirculated Air Switch, Fresh Air and Recirculating Air Mode Indicator Lamp, Fresh Air Regulator Illumination, Fresh Air Blower Series Resistor With Fuse, Fresh Air Blower, Fresh/Recirculating Air Door Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E9 - Fresh Air Blower Switch

E184 - Fresh Air Blower/Recirculated Air Switch

K114 - Fresh Air and Recirculating Air Mode Indicator Lamp

L16 - Fresh Air Regulator Illumination

N24 - Fresh Air Blower Series Resistor With Fuse Heating and A/C Pass Compartment Overview

S2 - Fuses (on fuse/relay panel)

S225 - Fuse in Fuse Panel

T4i - 4-Pin Connector

T6p - 6-Pin Connector

T8n - 8-Pin Connector

T10j - 10-Pin Connector

V2 - Fresh Air Blower Heating and A/C Pass Compartment Overview

V154 - Fresh/Recirculating Air Door Motor Heating and A/C Pass Compartment Overview

(97) - Ground Connection 1 (in A/C wiring harness)

(A20) - Plus Connection (15a), (in instrument panel wiring harness)

(L66) - Connection (in wiring harness) heater blower

2) - From July 2007

4) - From July 2008
