Diagram 630/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

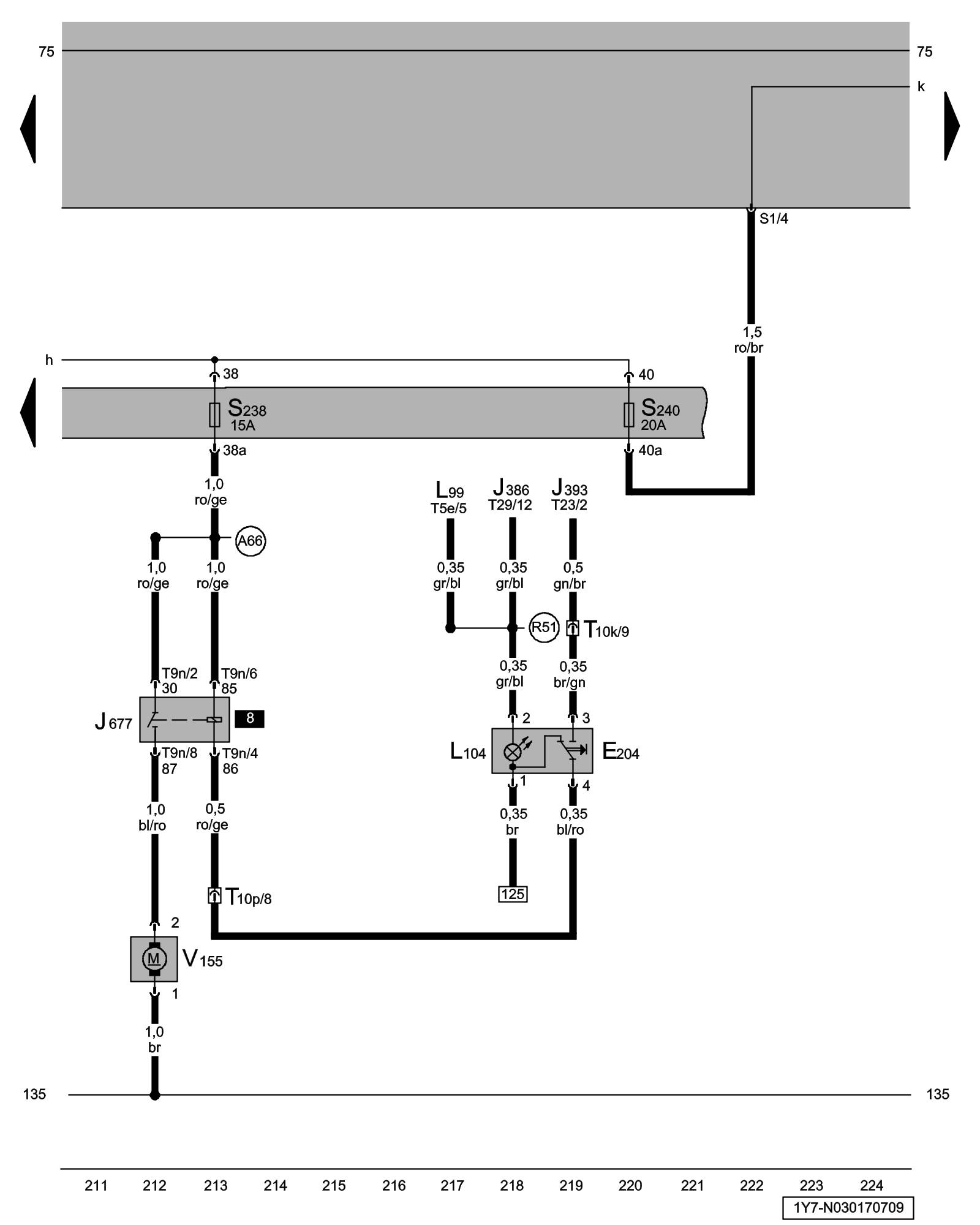

Remote Fuel Tank Flap Switch, Remote Unlock Switch Illumination, Fuel Tank Lid Lock Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E204 - Remote Fuel Tank Flap Switch

J386 - Driver's Door Control Module Central Locking System

J393 - Comfort System Central Control Module Central Locking System

J677 - Fuel Tank Lid Unlock Relay

L99 - Interior Lock Switch Illumination

L104 - Remote Unlock Switch Illumination

S238 - Fuse in Fuse Panel

S240 - Fuse in Fuse Panel

T5e - 5-Pin Connector

T9n - 9-Pin Connector, on J677

T10k - 10-Pin Connector, black, on right A-pillar

T10p - 10-Pin Connector, blue, on right A-pillar

T23 - 23-Pin Connector, on J393

T29 - 29-Pin Connector

V155 - Fuel Tank Lid Unlock Motor Central Locking System

(A66) - Connection (30a, central locking/anti-theft warning system/IR (in instrument panel wiring harness)

(R51) - Connection (58b), (in Driver's door wiring harness)
