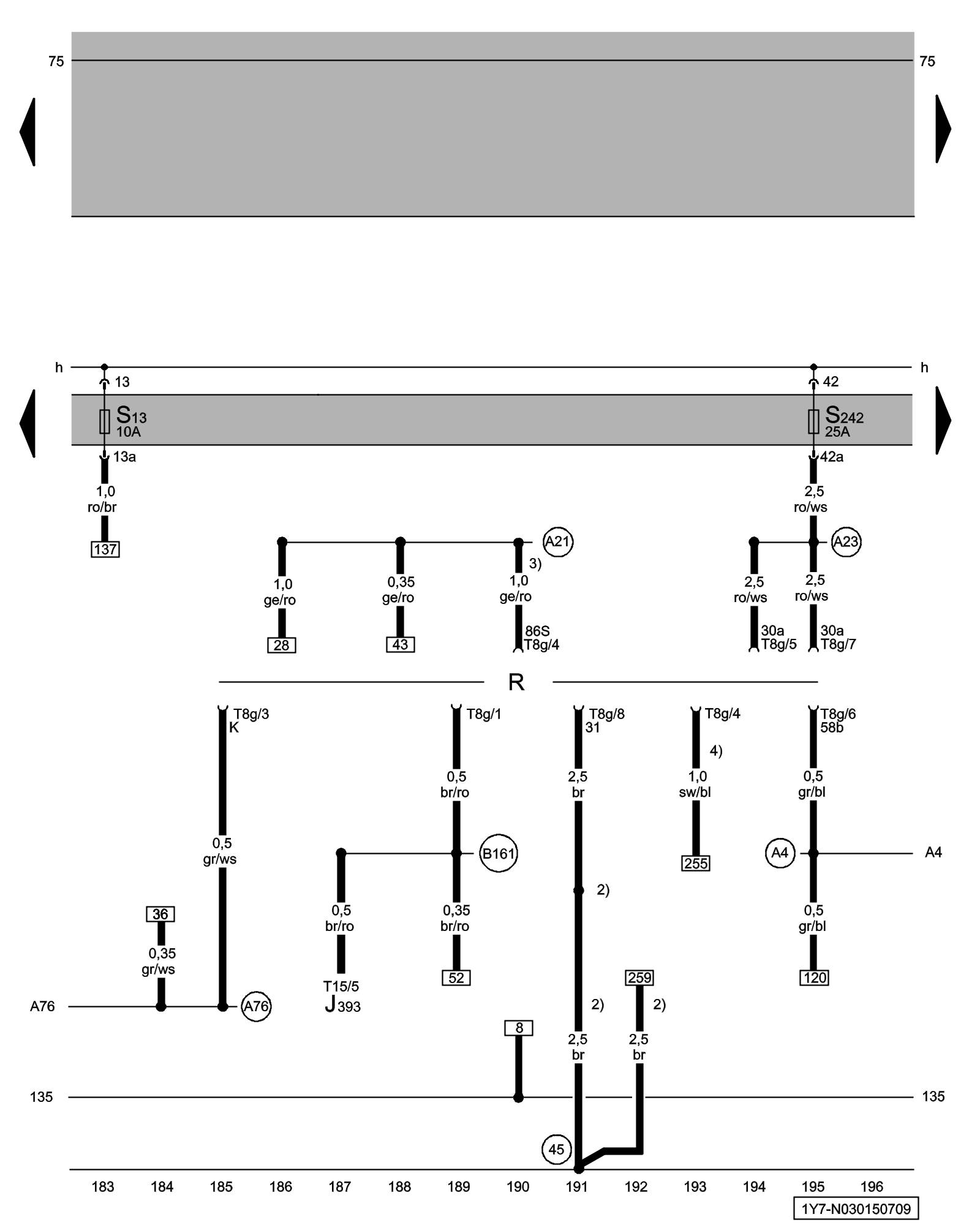

Diagram 630/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio Connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort System Central Control Module Central Locking System

R - Radio Premium V and Premium 5.5 Component Overview

S13 - Fuses (on fuse/relay panel)

S242 - Fuse in Fuse Panel

T8g - 8-Pin Connector, on radio

T15 - 15-Pin Connector, on J393

(45) - Ground Connection (behind instrument panel, center)

(A4) - Plus Connection (58b) (in instrument panel wiring harness)

(A21) - Connection (86s) (in instrument panel wiring harness)

(A23) - Connection (30al) (in instrument panel wiring harness)

(A76) - K-Diagnosis Wire Connection (in instrument panel wiring harness)

(B161) - Anti-Theft Alarm System Connection (in interior wiring harness)

2) - From July 2007

3) - Through June 2008

4) - From July 2008
