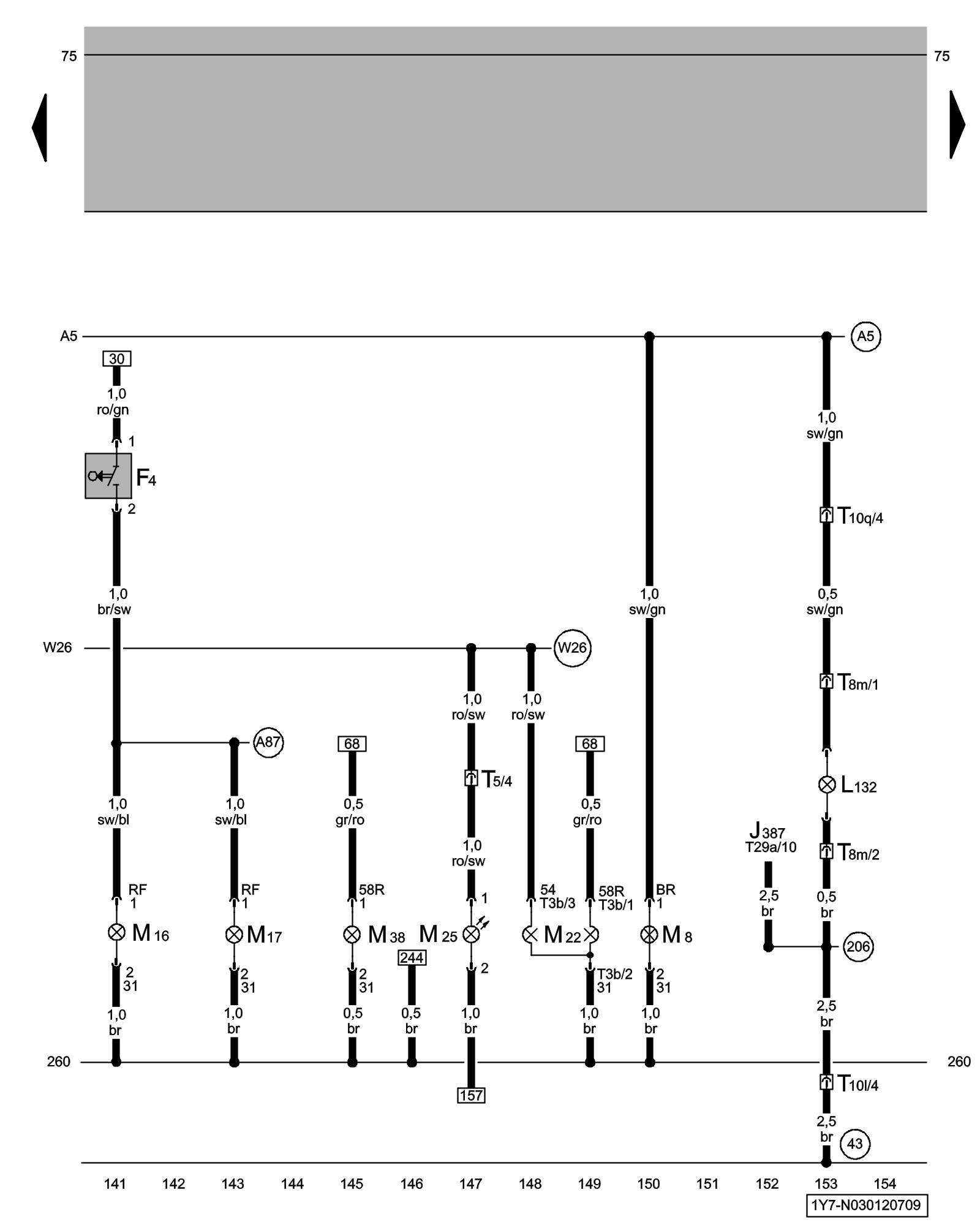

Diagram 630/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Back-Up Light Switch, Front Passenger's Exterior Mirror Turn Signal Lamp, Right Rear Turn Signal Lamp, Right Back-Up Lamp, Right Brake/Taillamp, High-mount Brake Light, Right Rear Side Marker Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F4 - Back-Up Light Switch

J387 - Front Passenger's Door Control Module Central Locking System

L132 - Front Passenger's Exterior Mirror Turn Signal Lamp

M8 - Right Rear Turn Signal Lamp

M16 - Left Back-Up Lamp

M17 - Right Back-Up Lamp

M22 - Right Brake/Taillamp

M25 - High-mount Brake Light

M38 - Right Rear Side Marker Lamp

T3b - 3-Pin Connector

T5 - 5-Pin Connector, black, on C-pillar, left

T8m - 8-Pin Connector, on L1320

T10l - 10-Pin Connector, black, on right A-pillar

T10q - 10-Pin Connector

T29a - 29-Pin Connector

(43) - Ground Connection (on right lower A-pillar)

(206) - Ground Connection (in front passenger's door wiring harness)

(A5) - Right Turn Signal Plus Connection (in instrument panel wiring harness)

(A87) - Backup Lamp Connection (in instrument panel wiring harness)

(W26) - Plus Connection (54) (in taillamp wiring harness)
