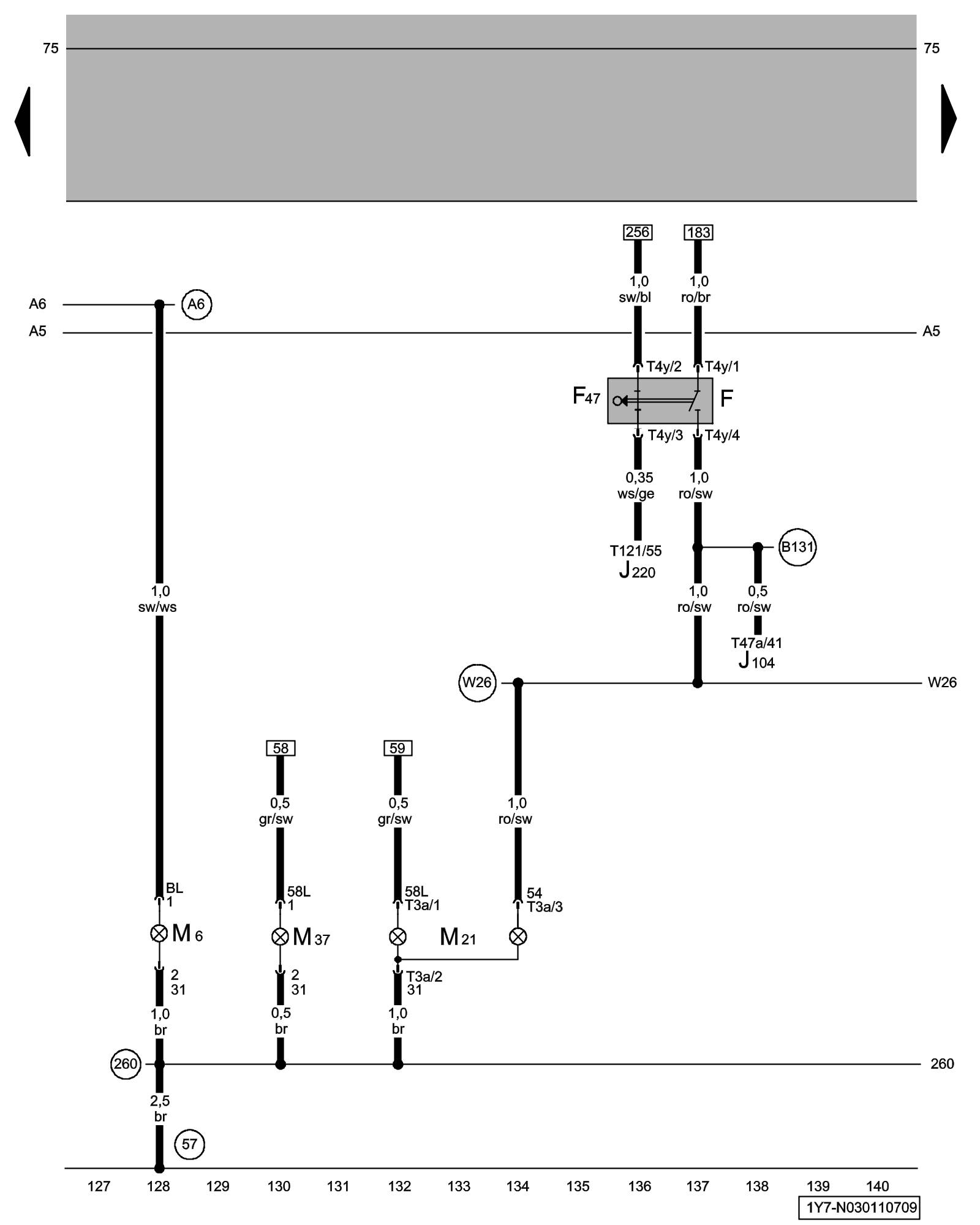

Diagram 630/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake Light Switch, Brake Pedal Switch, Left Rear Turn Signal Lamp, Left Brake/Taillamp, Left Rear Side Marker Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch ABS - Electrical and Electronic Component Locations - EDL/ASR

F47 - Brake Pedal Switch ABS - Electrical and Electronic Component Locations - EDL/ASR

J104 - ABS Control Module ABS - Electrical and Electronic Component Locations - EDL/ASR

J220 - Motronic Engine Control Module (ECM) Locations

M6 - Left Rear Turn Signal Lamp

M21 - Left Brake/Taillamp

M37 - Left Rear Side Marker Lamp

T3a - 3-Pin Connector

T4y - 4-Pin Connector

T47a - 4-Pin Connector

T121 - 121-Pin Connector

(57) - Ground Connection (on rear left pillar)

(260) - Ground Connection (in taillamps wiring harness)

(A6) - Left Turn Signal Plus Connection (in instrument panel wiring harness)

(B131) - Connection (54) (in interior wiring harness)

(W26) - Plus Connection (54) (in taillamp wiring harness)
