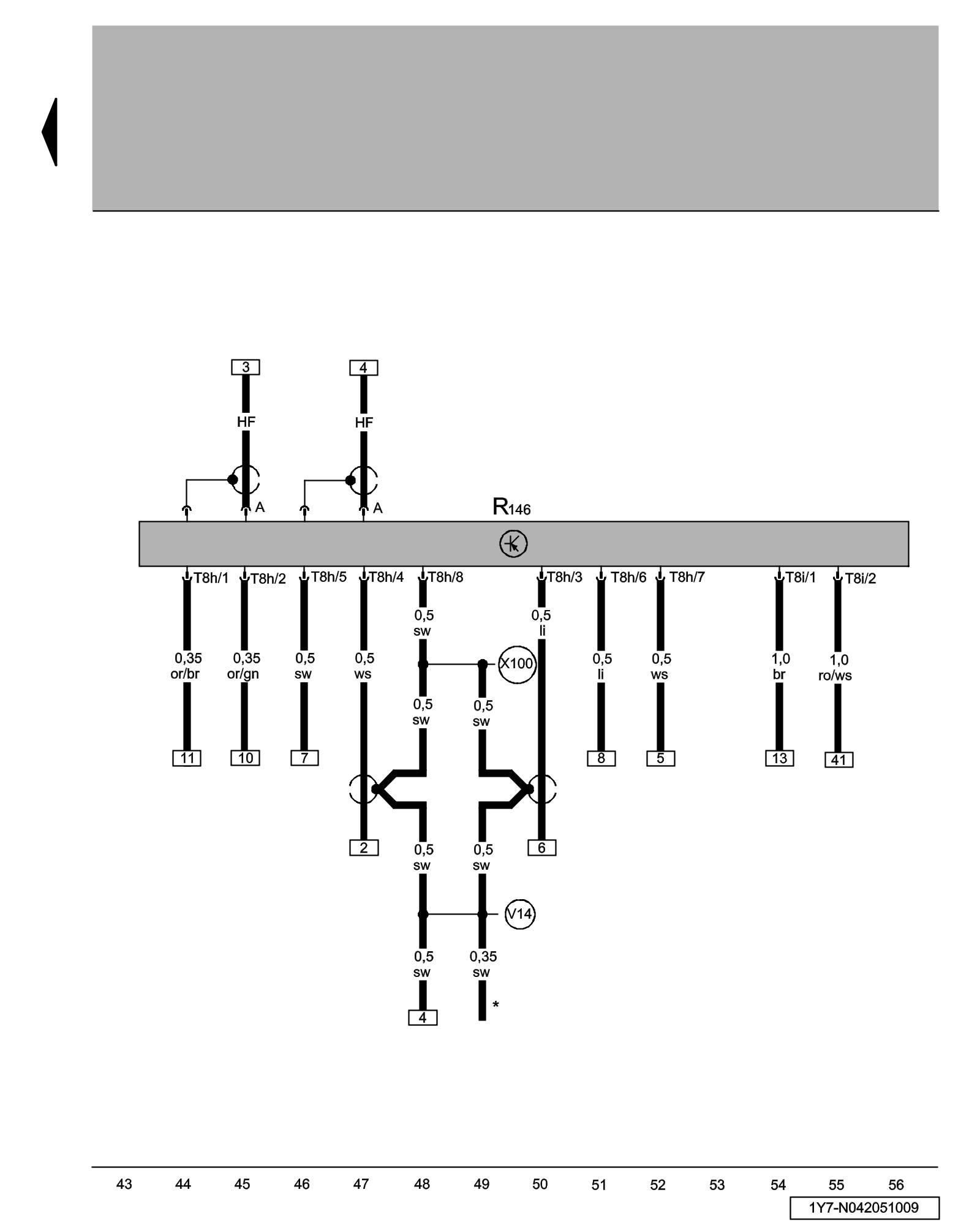

Diagram 642/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Satellite Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R146 - Satellite Radio Premium 5.5 Satellite Component Overview

T8h - 8-Pin Connector, on R146

T8i - 8-Pin Connector, on R146

(V14) - Connection (shielding) (in CD-changer wiring harness)

(X100) - Shielding Connection (in optional equipment wiring harness)

* - entwined in wiring harness (without continuation)
