Parking Brake Lever: Description and Operation

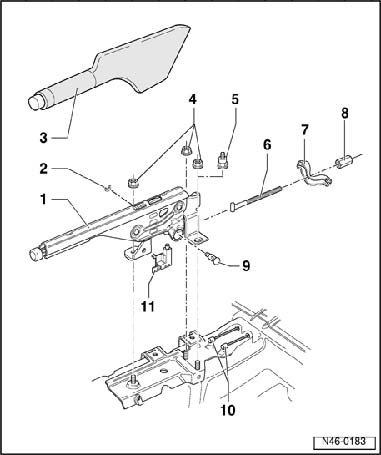

Parking Brake Lever Assembly Overview





1. Parking brake lever
^ Remove center console before removing
2. Locking washer
3. Trim for parking brake lever
^ Pull toward front.
4. Hex nut, 25 Nm
5. Adapter
^ Vehicles with center armrest
6. Pull-lever
7. Compensator
8. Adjustment nut
9. Pivot pin
10. Parking brake cable
11. Parking brake warning light switch
