Checking wheel speed sensor allocation

Display group 001
- Press buttons 0, 0 and 1 to input display group number 1 "001".
- Press Q button to confirm input.

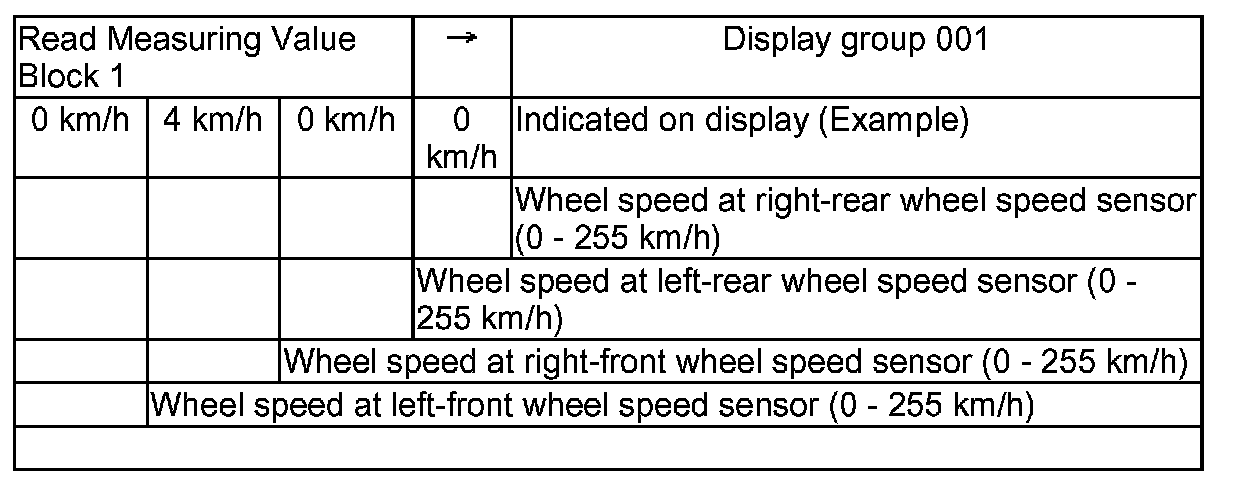

- There are always 4 display fields - arrows - in the display group. Descriptions of the individual values in display fields 1 - 4 can be found in the table.

Read Measuring Value Block 1 ->
-> 1 -> 2 -> 3 -> 4

Indicated on display (vehicle stationary)

Read Measuring Value Block 1 ->
0 km/h 0 km/h 0 km/h 0 km/h

- Press C button for next display group number entry.

If the arrow right button is pressed, buttons 0 and 8 ("Read Measuring Value Block") must be pressed again to regain entry.





Note:
^ For display group 001 remember: The momentary wheel speeds are displayed, and are used to verify correct wheel speed sensor connections. (The vehicle must be raised and the wheel must be rotated by hand by a second technician).
