Control Module Identification



Control Module Identification

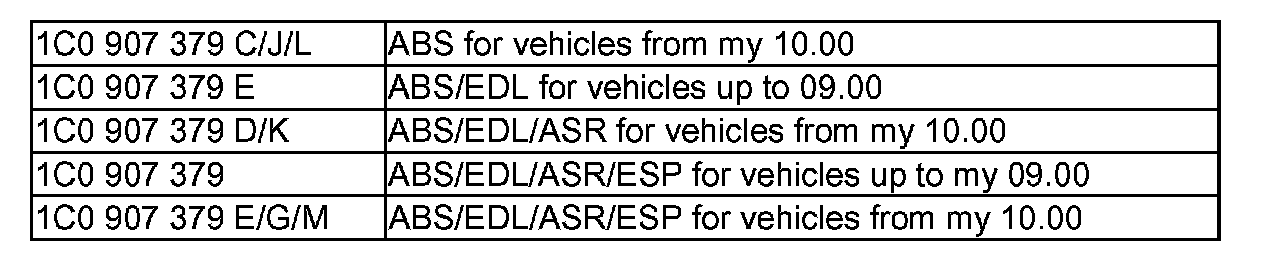

The control module version is displayed when Scan Tool VAG1551 or Vehicle Diagnostic Testing and Information System VAS5051 is connected and the brake electronics control module is selected.
