FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2008
>>
New Beetle Convertible (1Y7) L5-2.5L (BPS)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>

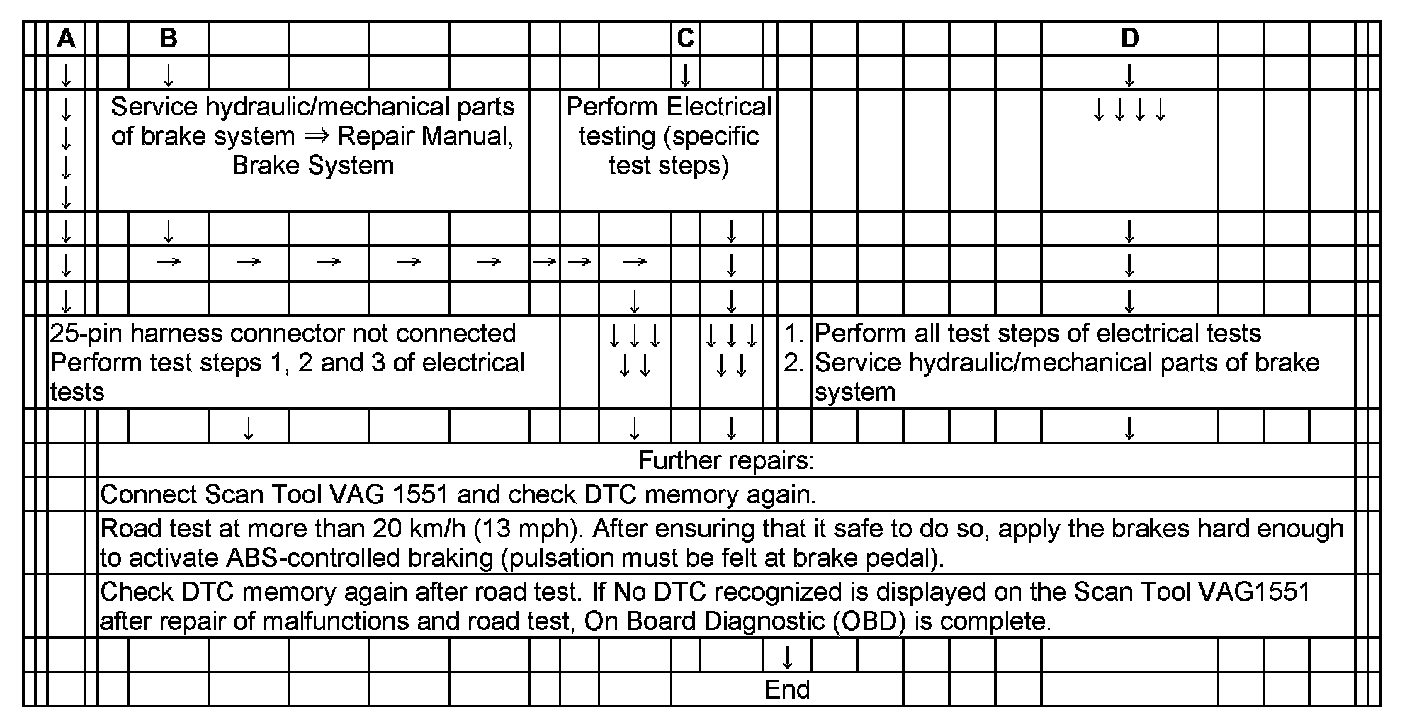

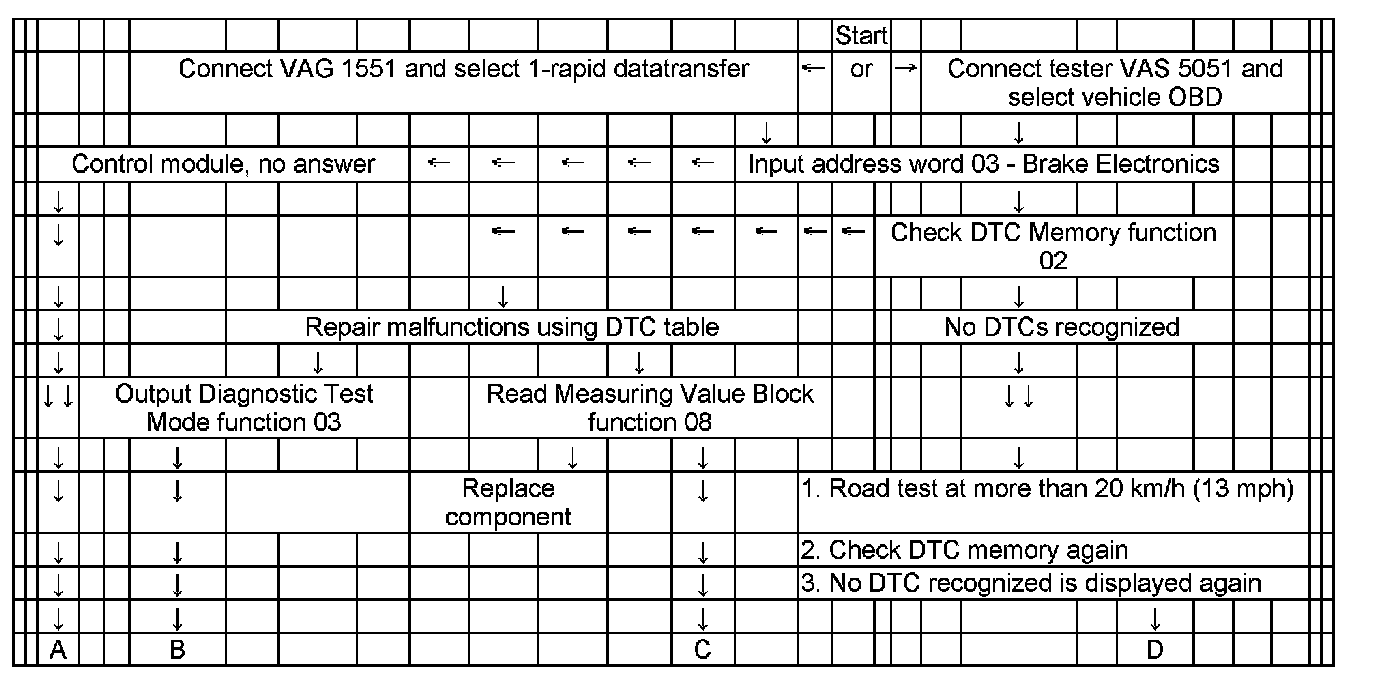

ABS and ABS/EDL Troubleshooting Flow Chart, VAS 1551 and VAS 5051
ABS and ABS/EDL Troubleshooting Flow Chart, VAS 1551 and VAS 5051
ABS and ABS/EDL Troubleshooting Flow Chart, VAS 1551 and VAS 5051
