Rotor, Checking Lateral Run Out

Rotor, Checking Lateral Run Out (Front Axle)
- Raise vehicle.
- Remove wheel.

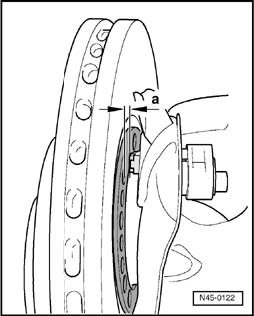

- Rotate wheel hub and check distance between rotor and wheel speed sensor - dimension a - for uniformity.

Dimension - a - = 0.3 mm

- If rotor is damaged, remove wheel hub with rotor and replace.
