ABS - Electrical and Electronic Component Locations - from MY 2006

Anti-Lock Brake Systems

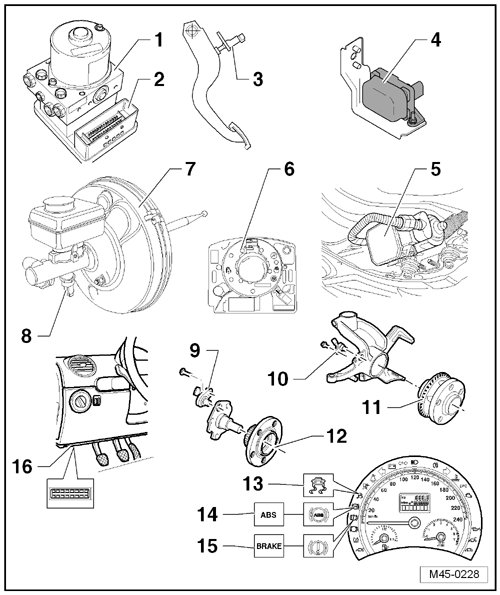

ABS - Electrical and Electronic Component Locations - from MY 2006







1 - ABS Hydraulic Unit -N55-
• Located on the left side of engine compartment
The hydraulic unit consists of the following components:
• ABS Hydraulic Pump -V64-

• Valve block (contains inlet and outlet valves)


2 - ABS Control Module -J104-
• Located at the hydraulic unit on the left side of engine compartment

3 - Brake Light Switch -F- /Brake pedal switch -F47-
• Located at the brake pedal

4 - ESP Sensor Unit -G419- => [ ESP Sensor Unit ] See Image Below.
• Secured to mounting bracket for steering column
• Combined with the Transverse Acceleration Sensor -G200- and Rotation Rate Sensor -G202-
• Combined in one housing

5 - Brake System Vacuum Pump -V192- => [ Brake System Vacuum Pump ] See Image Below.
• Integrated with Brake Booster Control Module -J539-
• Only on vehicles with gasoline engine and automatic transmission
• Located on lower left subframe

6 - Steering Angle Sensor -G85- => [ Steering Angle Sensor ] See Image Below.
• Located on steering column between steering wheel and steering column switch

7 - Brake booster

8 - Brake Pressure Sensor 1 -G201- => [ Brake Pressure Sensor 1 ] See Image Below.




ABS - Electrical and Electronic Component Locations -
from MY 2006 continued





9 - Right Rear ABS Wheel Speed Sensor -G44- and Left Rear ABS Wheel Speed Sensor -G46- => [ Rear Wheel Speed Sensors ] See Image Below.

10 - Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47- => [ Front Wheel Speed Sensors ] See Image Below.

11 - Wheel hub with rotor for front speed sensor

12 - Wheel hub with rotor for rear speed sensor

13 - ASR/ESP Control Lamp -K155-
• Located in instrument cluster

14 - ABS Warning Lamp -K47-
• Located in instrument cluster

15 - Brake System Warning Lamp -K118-
• Located in instrument cluster

16 - Data Link Connector (DLC)
• Located left under the driver side storage compartment

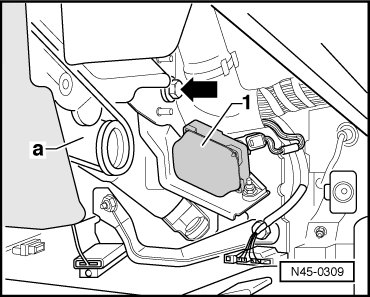

ESP Sensor Unit






1 - ESP Sensor Unit -G419-



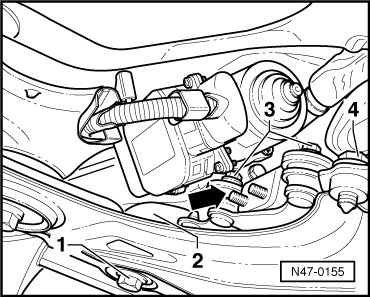

Brake System Vacuum Pump






- - Brake System Vacuum Pump -V192-




Steering Angle Sensor






1 - Steering Angle Sensor -G85-



Brake Pressure Sensor 1






B - Brake Pressure Sensor 1 -G201-




Rear Wheel Speed Sensors






1 - Right Rear ABS Wheel Speed Sensor -G44- and Left Rear ABS Wheel Speed Sensor -G46-



Front Wheel Speed Sensors






1 - Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47-
