Rear Spoiler, OBD Display Group Overview



Rear Spoiler, OBD Display Group Overview

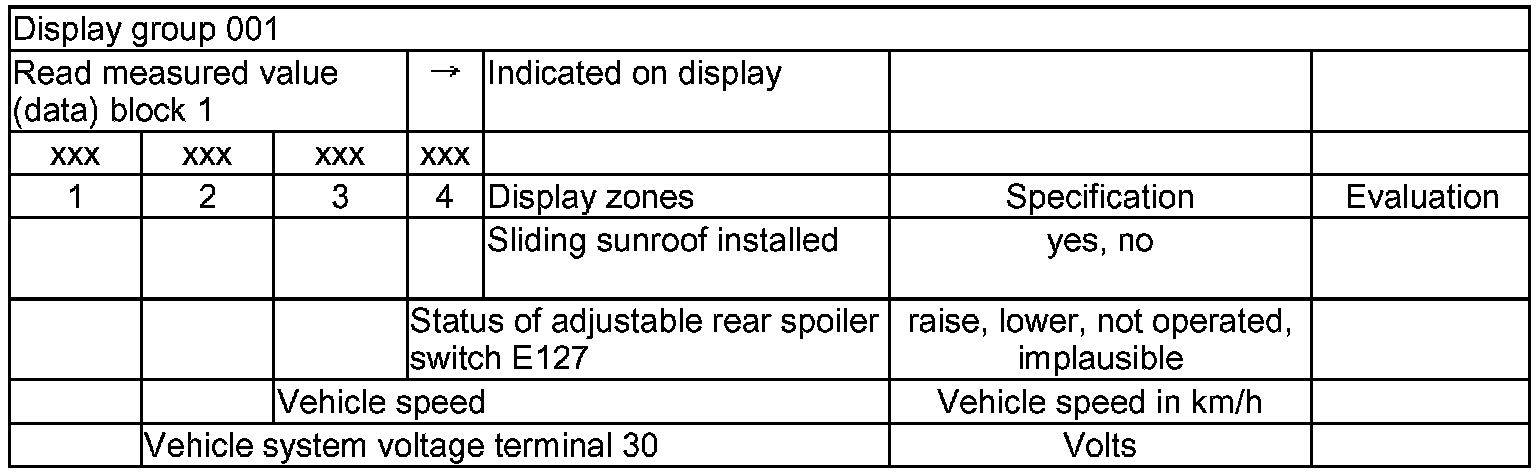

Break down of display content for display group number 001

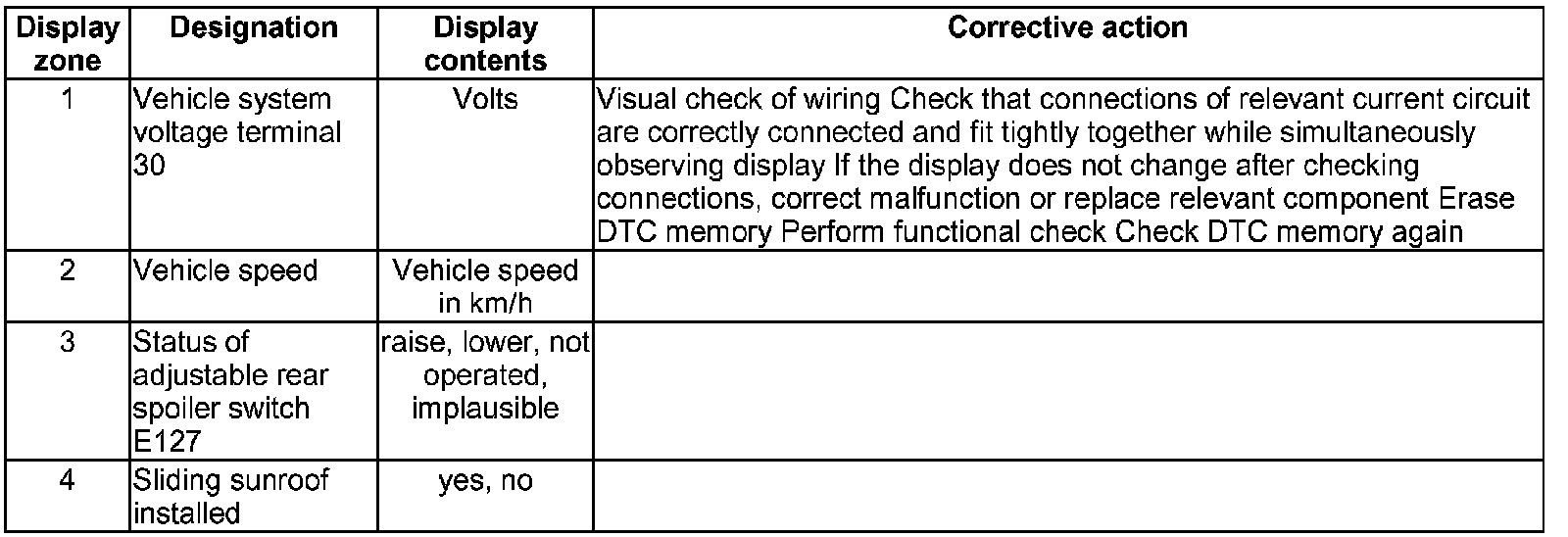

Evaluating display group number 001
