Lower Cable Guide Tubes

Rear Spoiler

Lower Cable Guide Tubes

- Remove rear lid trim.

- Remove rear spoiler drive. Refer to => [ Rear Spoiler Motor ] Rear Spoiler Motor.

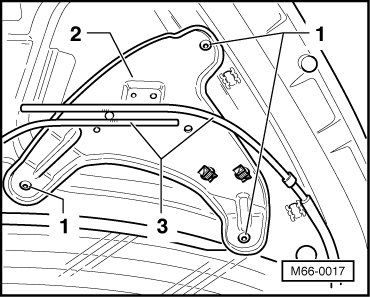

- Remove bolts - 1 - of bracket - 2 - for lower guide tubes - 3 -. Tightening torque: Bolts - 1 - = 8 Nm

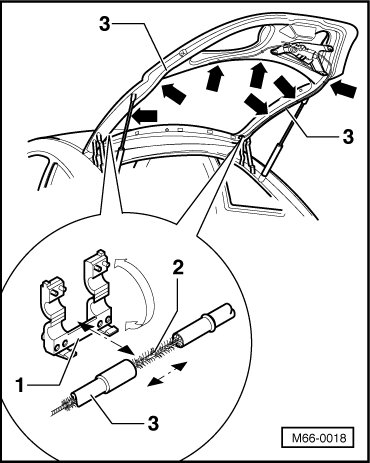

- Open clips - 1 - at left and right.





• Replace damaged clips - 1 - when installing.

- Unclip lower guide tube - 3 - on left and right from rear lid - arrows - and pull off from cable - 2 -.
