Sill Panel Strips, Convertible

Protective Molding

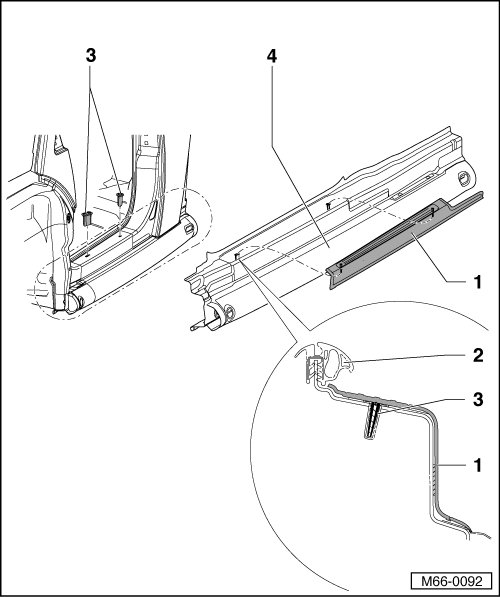

Sill Panel Strips, Convertible





1 Sill Panel Strip

• Self-adhesive

• Removing:

- Heat sill panel strip using hot air gun before removing.

• Installing:

- Clean outer panel with mineral spirits, treat with silicone remover and rub dry.

- Insert grommet- 3 - into sill hole.

- Peel off protective paper, position sill panel strip using guide pin and adhere (press on firmly). Processing temperature approx. 68° F (20 °C).

2 Internal Door Seal

• Peel off for installing scuff guard foil

3 Grommet

4 Sill
