Luggage Compartment Lid Trim Assembly Overview, Convertible, USA
Rear Lid/Luggage Compartment Cover Trim

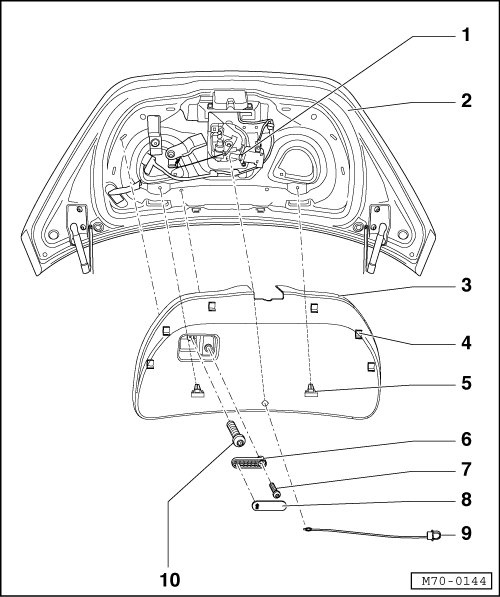

Luggage Compartment Lid Trim Assembly Overview, Convertible, USA
1 - Lid Lock Mechanism
2 - Rear Lid/Luggage Compartment Lid
3 - Trim
4 - Clip
• Quantity: 6
5 - Clip
• Quantity: 2
• Vehicles > 12/04:
6 - Grip Piece
7 - Bolt
8 - Cover
9 - Plug with Plastic Cable
• Vehicles from 12.2003.
• Installation in trim - 3 -.
• Used in lid lock - 1 -.
10 - Bolt
