Read Measuring Value Block Display Groups, Interpreting (Data Bus on Board Diagnostic Interface J533 Gateway)

Read Measuring Value Block Display Groups, Interpreting (Data Bus On Board Diagnostic Interface J533 Gateway)

NOTE:
- Display fields in display groups 125 and 126 provide the CAN Data Bus function status codes of various control modules connected to the vehicle CAN Data Bus network.
- If a vehicle is not equipped with control module(s) or components listed in the following display groups, the applicable display field remains blank.
- Display fields may vary depending on instrument cluster manufacturer (VDO or MMO).

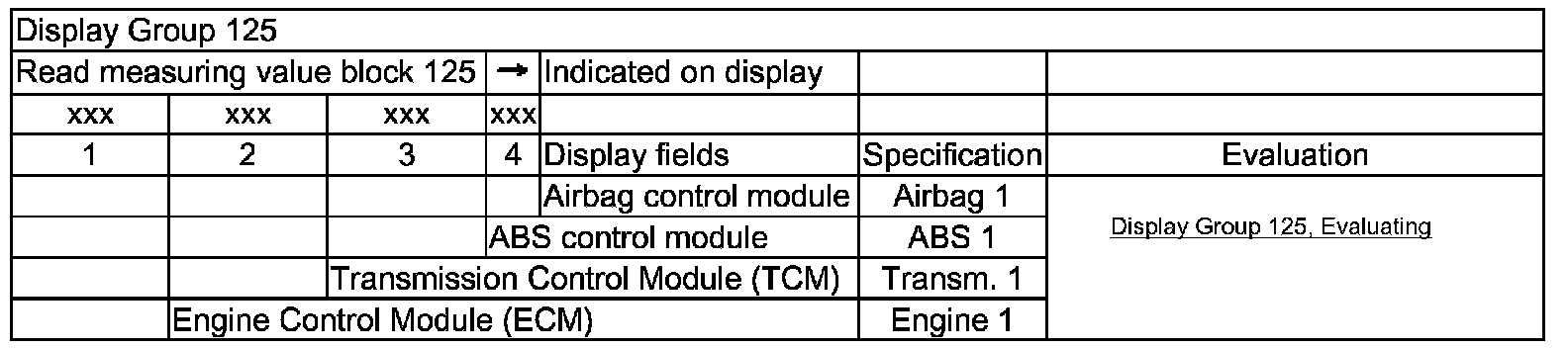

Display Group 125, Overview

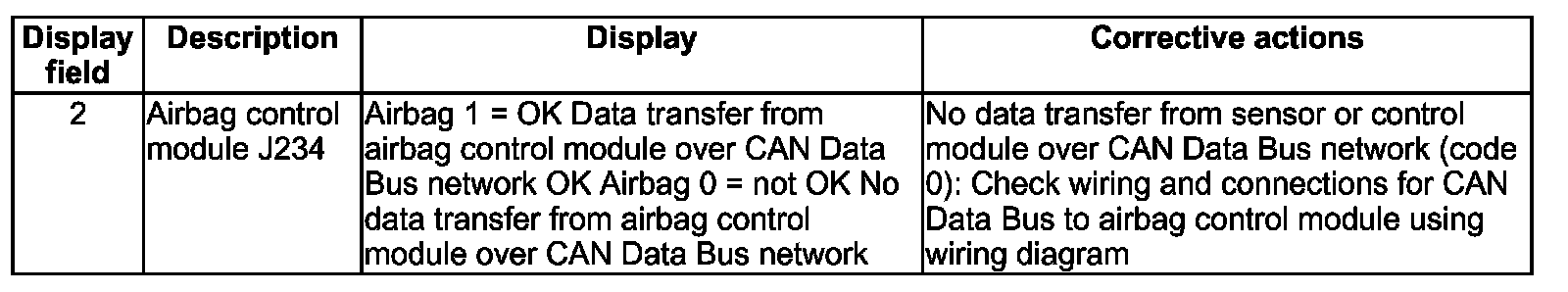

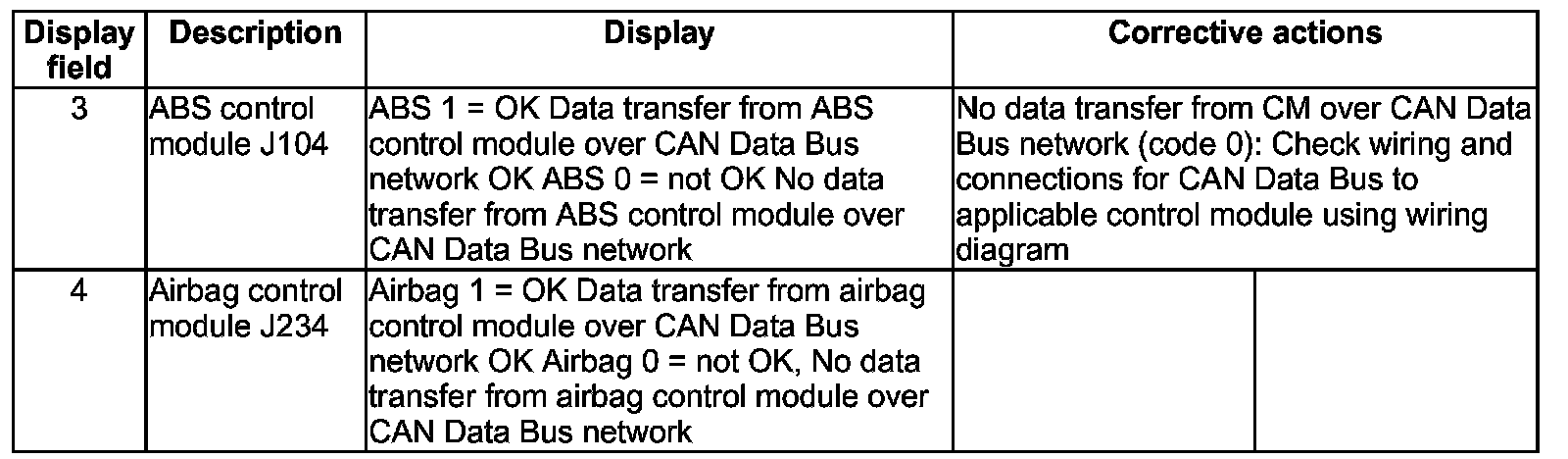

Display Group 125, Evaluating

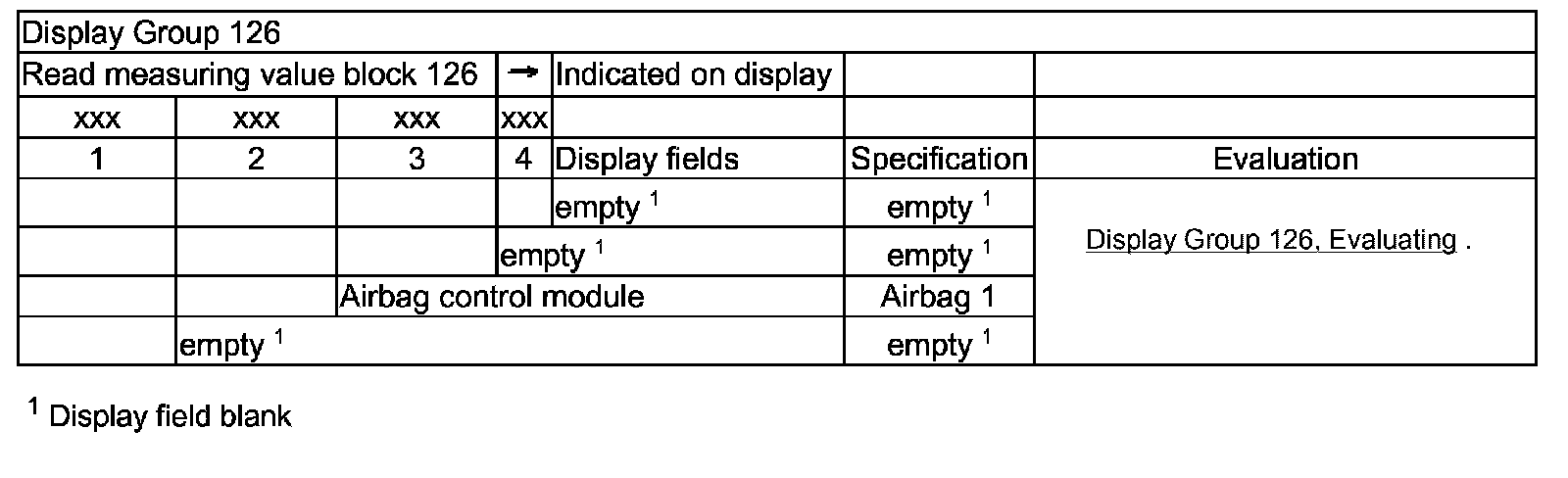

Display Group 126, Overview

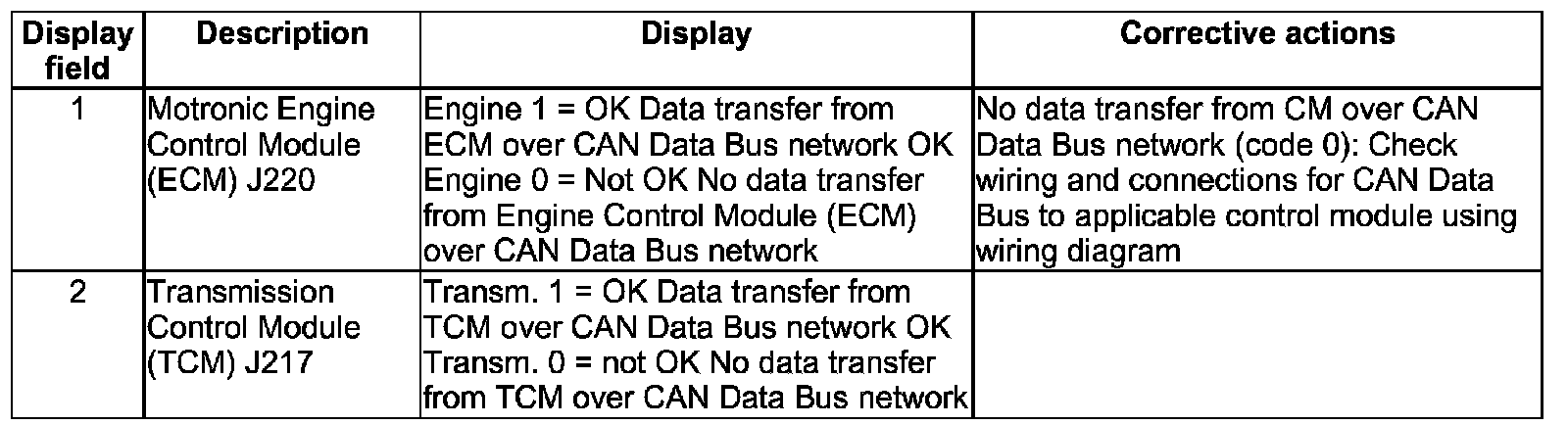

Display Group 126, Evaluating
