Comfort System, Power Windows, OBD Measured Value Block, Reading, Function 08

Comfort System, Power Windows, OBD Measured Value Block, Reading, Function 08

- Connecting VAG1551 or VAS5051 - Scan Tool, Connecting and initiating On Board Diagnosis (OBD) - Comfort System OBD, with Power Windows, Initiating.

The measured value block is divided into display group numbers. The assignment of the individual display zones can be taken from the display group overview from - Comfort System Display Group Overview, 2nd Generation Vehicles, through 05.01.

NOTE:
- Display group overview of the Comfort System (vehicles with power windows) 2nd generation - Comfort System Display Group Overview, 2nd Generation Vehicles, through 05.01.
- Display group overview of the Comfort System (vehicles with power windows) 3rd generation - Comfort System Display Group Overview, 3rd Generation Vehicles, from 06.01.
- Some of the display groups are only relevant for vehicles with the corresponding equipment.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons 0 and 8 (08 initiates function "Read measured value block").

Indicated on display:

Rapid data transfer Q
08 Read measured value block

- Confirm entry with Q button.

Indicated on display:

Read measured value block HELP
Input display group number XXX

NOTE: The Display group number 001 is an example, to illustrate the sequence.

- Press buttons 0, 0 and 1 for "Display group number 1" and confirm entry with Q button.

Indicated on display: (1...4 = display zones)

Read measured value block 1 arrowright
1 2 3 4

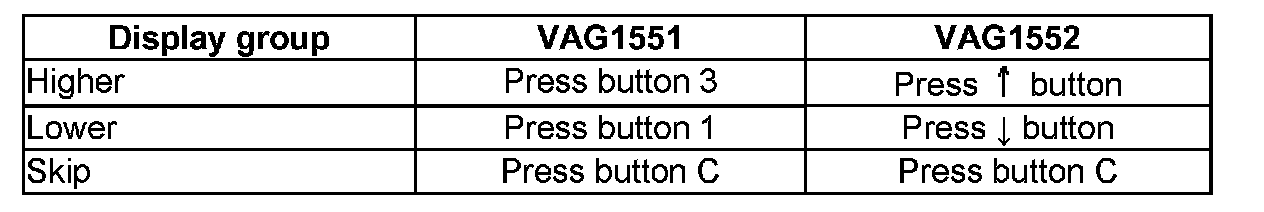

NOTE: To change to another display group proceed as follows:







- Displayed after pressing C button.

Indicated on display:

Read measured value block HELP
Input display group number XXX

- Now enter the display group number required.
