Comfort System, With Power Windows, Functional Variations

Comfort System, with Power Windows, Functional Variations

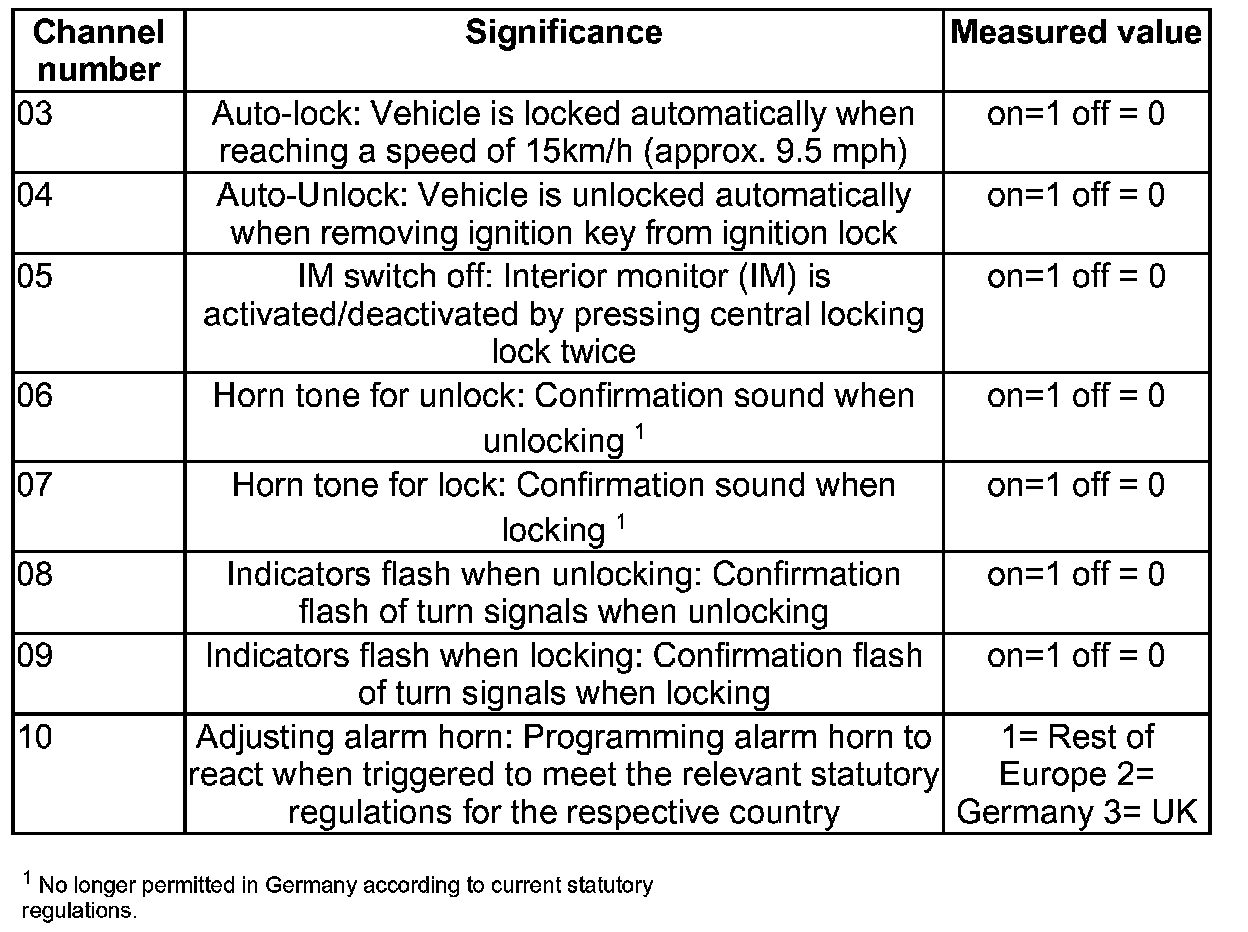

The various functions listed in the table can be called up by selecting channel numbers 03...10 and adapted.







The adaption shown here is only an example.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons 1 and 0 (10 selects the "Adaptation" function).

Indicated on display:

Rapid data transfer Q
10 - Adaptation

- Confirm entry with Q button.

Indicated on display:

Adaptation
Enter channel number XX

- Press buttons 0 and 8 (channel number 08 switches the turn signals on or off when unlocking).

Indicated on display:

Channel 8 Adaptation 1 arrowright
Unlock Flashing on -1 3->

- Press arrowright button.

Indicated on display:

Channel 8.....Adaptation 1 arrowright
Enter adaption value XXXXX

- Press arrowright button.
- Press button 0 five times (e.g. 00000).

Indicated on display:

Channel 8.....Adaptation 0 Q
Enter adaption value 00000

- Confirm entry with Q button.

Indicated on display:

Channel 8 Adaptation 0 Q
Unlock Flashing off -1 3->

- Confirm entry with Q button.

Indicated on display:

Channel 8 Adaptation 0 Q
Save amended value?

- Confirm entry with Q button.

Indicated on display:

Channel 8 Adaptation 0 arrowright
Amended value is saved

- Press arrowright button.

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons 0 and 6 to end the output.

Indicated on display:

Rapid data transfer Q
06 End output.

- Confirm entry with Q button.

Indicated on display:

Rapid data transfer HELP
Enter address word XX

- Switch off ignition and disconnect diagnostic connection.
