Premium V Monsoon and Premium 5.5 Monsoon Component Overview

Radio / Navigation Systems

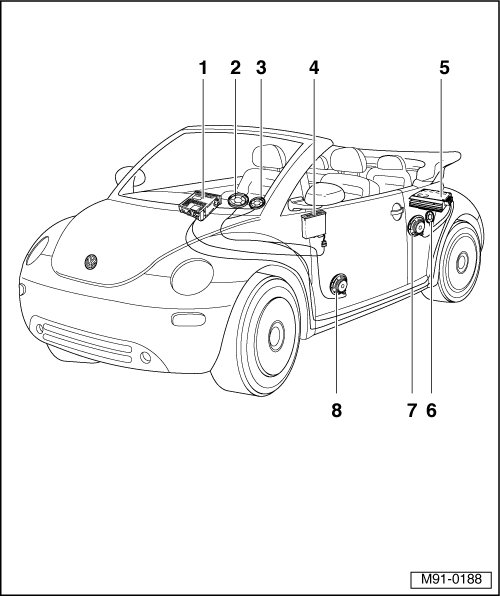

Premium V Monsoon and Premium 5.5 Monsoon Component Overview



Note:
• Left side speaker layout shown. Right side speaker layout is identical






1 - Radio -R-
• Located in the center console

2 - Left Front Midrange Speaker -R26- and Right Front Midrange Speaker -R27-
• Located in the instrument panel under top cover

3 - Left Front Treble Speaker -R20- and Right Front Treble Speaker -R22-
• Located in the instrument panel under top cover

4 - CD Changer -R41-
• Optional
• Located inside the armrest or in luggage compartment (depending on production date)
• Component location same for all the systems (if applicable)

5 - Amplifier -R12-
• Located in the luggage compartment
• Premium 5.5 Monsoon Satellite Component Overview => [ Premium 5.5 Monsoon Satellite Component Overview ] Premium 5.5 Monsoon Satellite Component Overview

6 - Left Rear Treble Speaker -R14- and Right Rear Treble Speaker -R16-
• Located in the rear side panels

7 - Left Rear Bass Speaker -R15- and Right Rear Bass Speaker -R17-
• Located in the rear side panels

8 - Left Front Bass Speaker -R21- and Right Front Bass Speaker -R23-
• Located in the doors
