Amplifier (R12)

Amplifier (R12)

CAUTION!
Prior to working on the electrical system:

• Obtain the radio system anti-theft code.

• Switch off all electrical consumers.

• Switch off the ignition and remove the ignition key.

• Disconnect the battery.

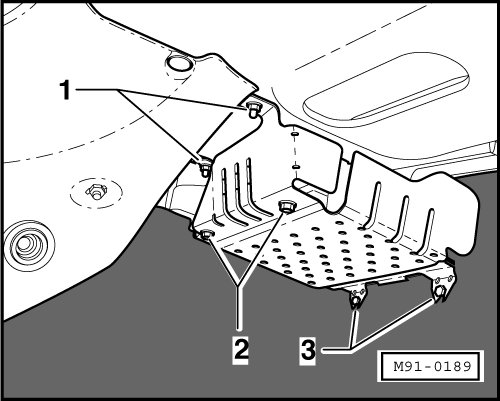

The amplifier is located on the upper left in the luggage compartment.

Removing

- Remove screws - 3 -.





- Remove nuts - 1 -.

- Disconnect the connectors.

Removal of the bracket:

- Remove nuts - 2 -.

Installing

Installation is performed in the reverse order.

Tightening Specifications: 10 Nm.
