Telephone Baseplate

Telephone System

Telephone Baseplate

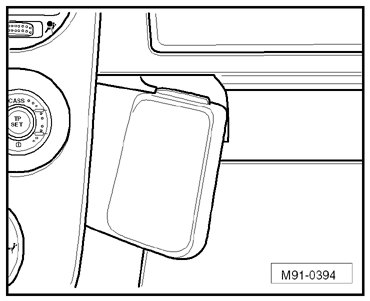

The telephone baseplate is installed on the right side of the instrument panel.
