Comfort System Folding Main Key With Remote Control Batteries

Comfort System Folding Main Key with Remote Control Batteries

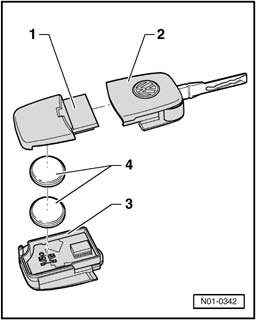

1. Transmitter unit - upper part (turned-over)
2. Main key with variable code transponder
3 Transmitter unit - lower part
4. Button battery

Removing







- Insert a screwdriver in the slot between the transmitter unit - 1 - and the main key 2.
- Move the screwdriver in direction of arrow and unclip the transmitter unit from the main key.







- Press the transmitter unit apart in direction of arrow.







- Unclip batteries from the retainers in direction of arrow using a screwdriver.

Installing
Note the polarity and correct position when installing the batteries.







- Place the battery with the positive terminal downward into the sender unit (positive terminal is marked on housing).
- Engage battery in transmitter body by pressing down lightly.
- Install cover on transmitter body (do not damage seal).
- Then engage the transmitter unit with the main key.
