Rear Spoiler, On Board Diagnosis (OBD)

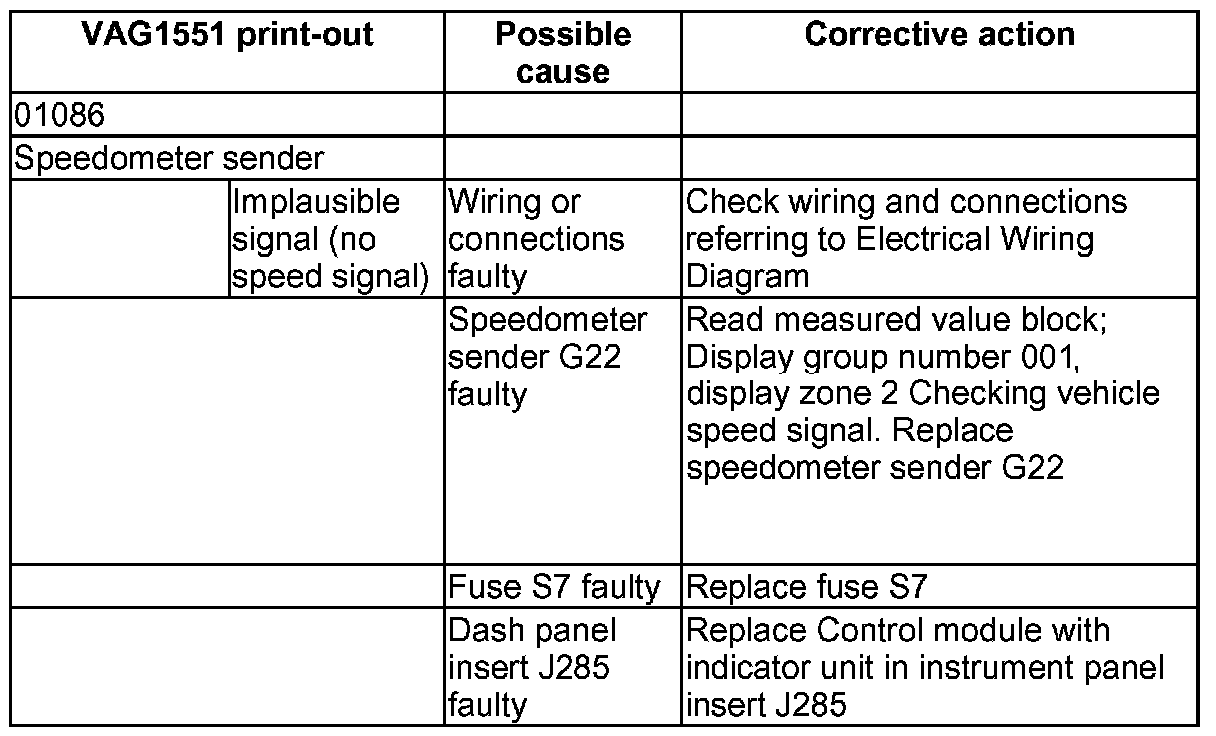

Rear Spoiler, OBD DTC Table

NOTE:
- The Diagnostic Trouble Code (DTC) tables are listed according to the 5 digit malfunction code on the left.
- Explanation of the DTC types (e.g. "open circuit/short to ground (GND)" ): - Scan tool operating instructions
- Before replacing components indicated as being faulty, check the wiring and connectors to these components as well as the ground (GND) connections using Electrical Wiring Diagram. This is particularly relevant if malfunctions are output as "occurring sporadically" (SP).
- The malfunctions displayed can be localized using the test table.
