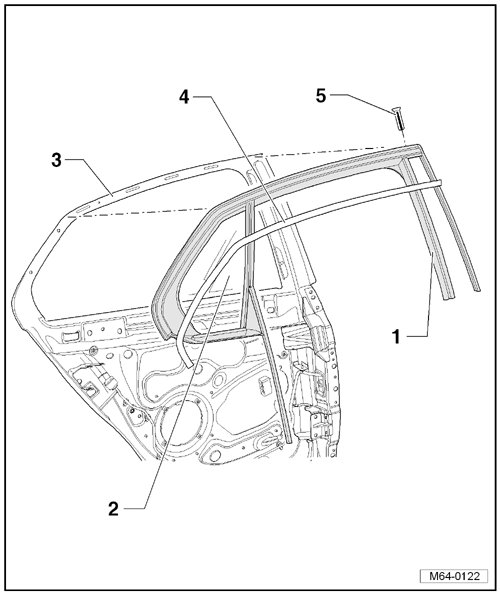

Fixed Door Window with Window Guide Assembly Overview

Fixed Door Window with Window Guide Assembly Overview






1 Window Guide

• Component of fixed door window

• Removing and installing, refer to => [ Fixed Door Window with Window Guide ] Fixed Door Window With Window Guide

2 Fixed Door Window

• Component of window guide

• Removing and installing. Refer to => [ Fixed Door Window with Window Guide ] Fixed Door Window With Window Guide

3 Window Frame at Inner Door Part

4 Window Guide Trim Molding

• Depending on equipment

• Removing and installing. Refer to => [ Window Guide Trim Molding ] Window Guide Trim Molding

5 Expanding Rivet
