Front Door Window Guide Trim Molding

Front Door Window Guide Trim Molding

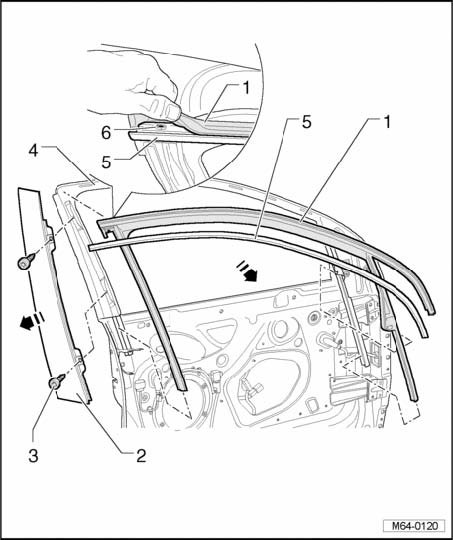

Removing
- Pull the rear of the window guide - 1 - to the side slightly.
- Remove the expanding rivet - 6 - from the window guide - 1 -.
- Remove the trim molding - 5 - from the window guide - 1 - in the - direction of the arrow -.

The trim - 2 - must not be removed.







Installing
- Spray soap/water solution on to window guide.

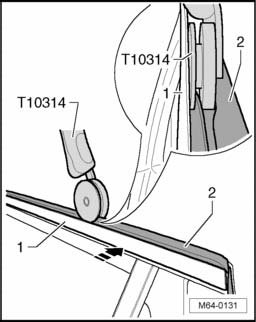

- Press the trim molding - 1 - by hand evenly in the - direction of the arrow - into the window guide - 2 -.
- Then press the window guide - 2 - correctly onto the trim molding mount - 1 - using the Roller T 10314.

Further installation is in reverse order of removal.
