Home >> Volkswagen >> 2008 >> Jetta GLI (1K2) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Power Distribution Relay >> Locations >> Relay Arrangements and Circuit Breakers on Relay Panel Below Instrument Panel, Left

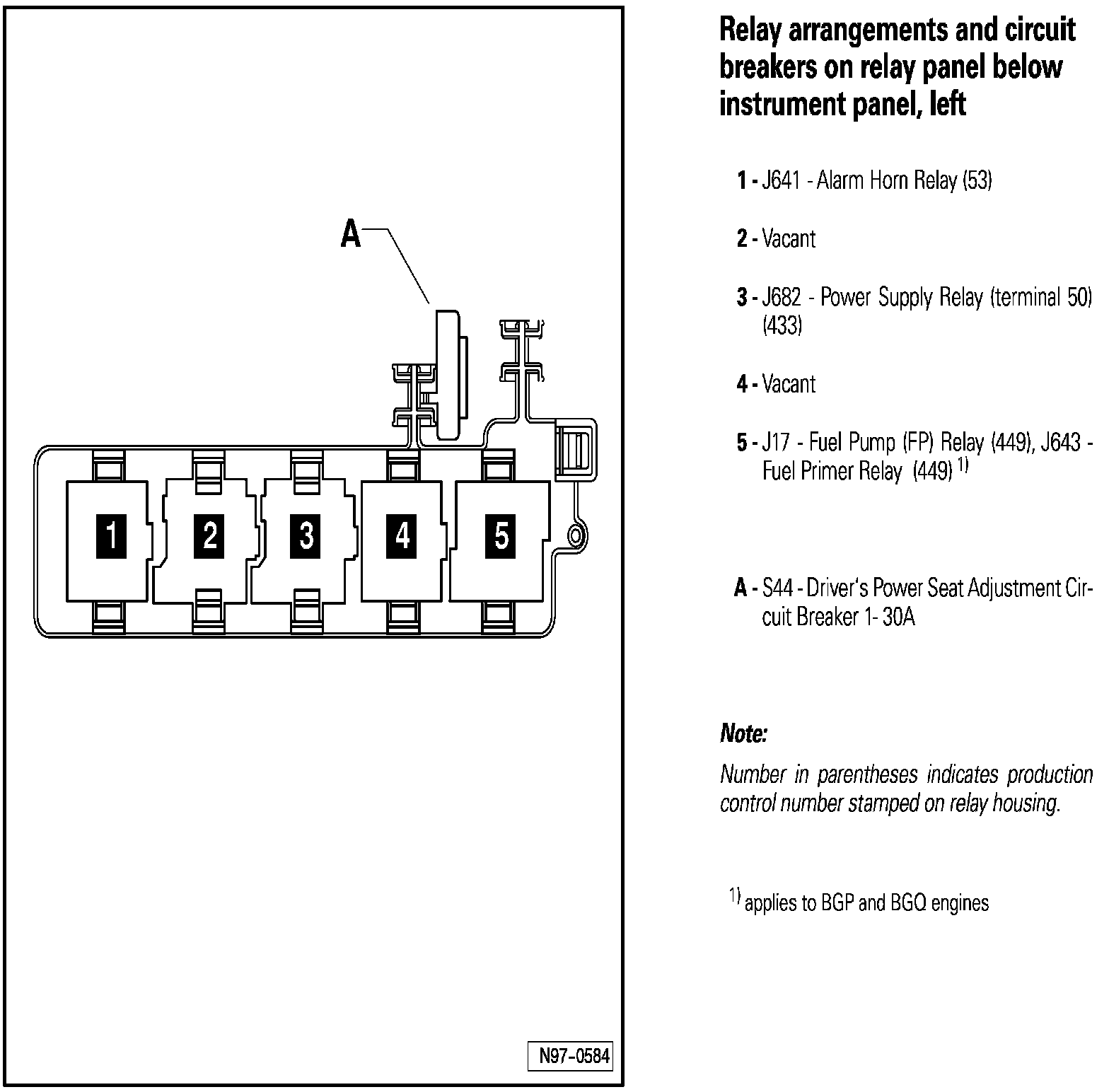

Relay Arrangements and Circuit Breakers on Relay Panel Below Instrument Panel, Left
