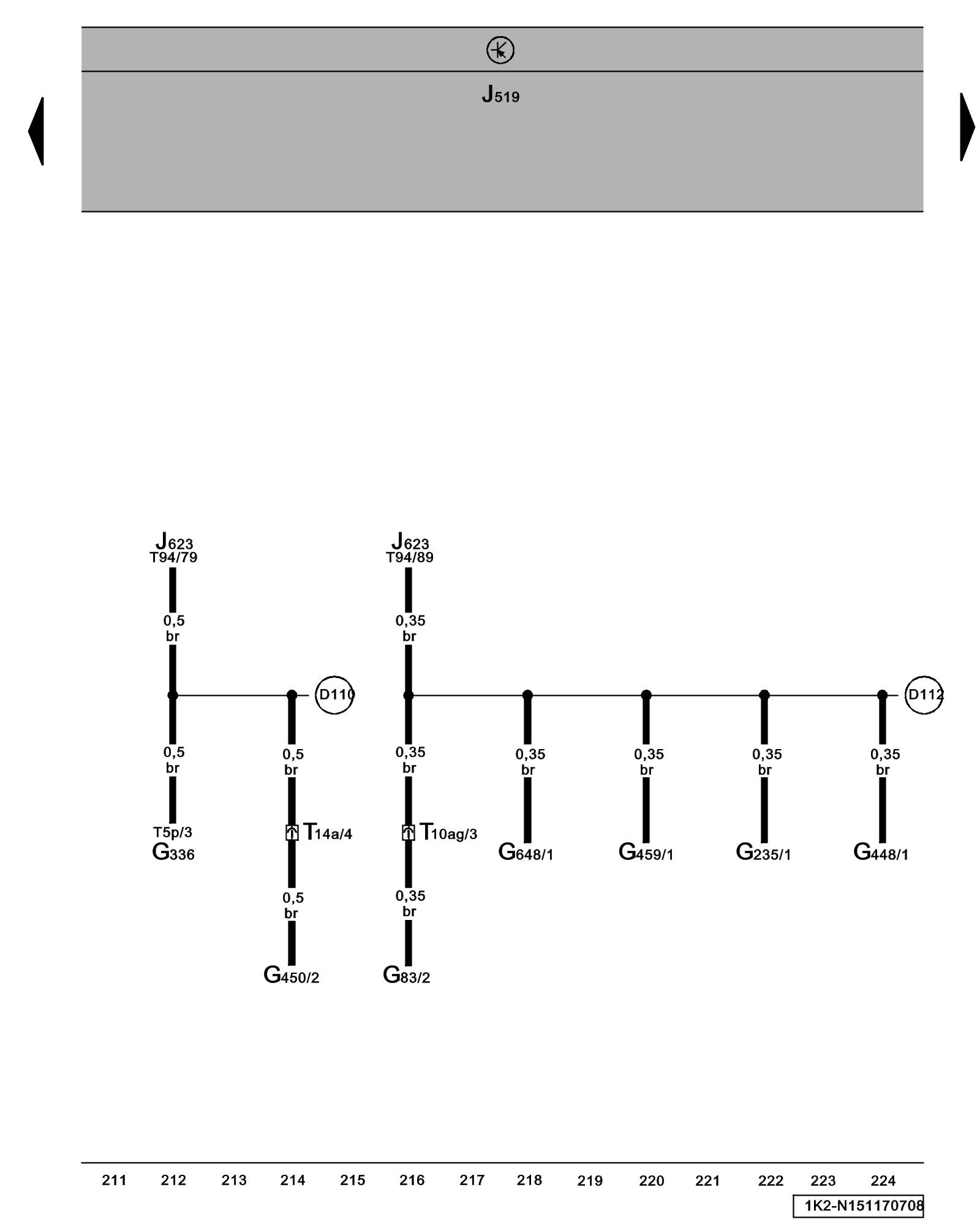

Diagram 151/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations

G235 - Exhaust Gas Temperature (EGT) Sensor 1

G336 - Intake Manifold Runner Position Sensor 2.0L BPY, CCTA and CBFA

G448 - Bank 1 Exhaust Gas Temperature (EGT) Sensor 2 Locations

G450 - Exhaust Pressure Sensor 1 Locations

G459 - Toll Registration Sensor

G648 - Exhaust Gas Temperature (EGT) Sensor 4 Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM) Locations

T5p - 5-Pin Connector

T10ag - 10-Pin Connector

T14a - 14-Pin Connector

T94 - 94-Pin Connector

(D110) - Connection 8 (in engine compartment wiring harness)


- Location: In main wiring harness between wiring circuits for G39 - Heated Oxygen Sensor (HO2S) and J623 - Engine Control Module (ECM)

(D112) - Connection 10 (in engine compartment wiring harness)


- Location: In wiring circuit between main harness and J623 - Engine Control Module (ECM)

Previous Diagram 151/16 (Tracks 197-210)

Next Diagram 151/18 (Tracks 225-238)
