Diagram 173/25 (Tracks 323-336)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

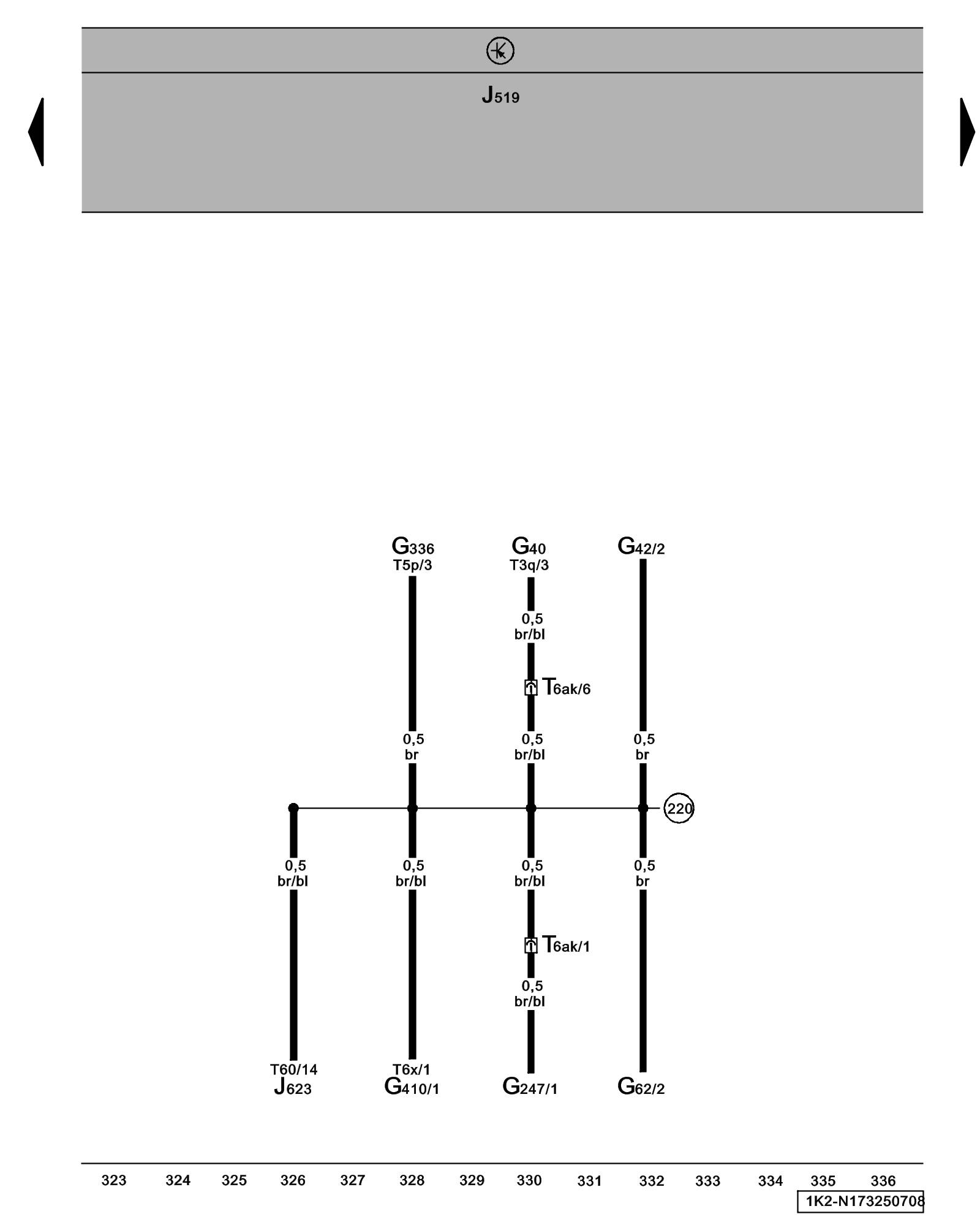

G40 - Camshaft Position (CMP) Sensor Locations

G42 - Intake Air Temperature (IAT) Sensor Locations

G62 - Engine Coolant Temperature (ECT) Sensor Locations

G247 - Fuel Pressure Sensor Locations

G336 - Intake Manifold Runner Position Sensor 2.0L BPY, CCTA and CBFA

G410 - Low Fuel Pressure Sensor 2.0L BPY, CCTA and CBFA

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM) Locations

T3q - 3-Pin Connector

T5p - 5-Pin Connector

T6x - 6-Pin Connector

T6ak - 6-Pin Connector

T60 - 60-Pin Connector

(220) - Sensor Ground Connection (in engine compartment wiring harness)


- Location: In wiring circuit between engine compartment wiring harness and J623 - Engine Control Module (ECM) (connector T60)

Previous Diagram 173/24 (Tracks 309-322)

Next Diagram 173/26 (Tracks 337-350)
