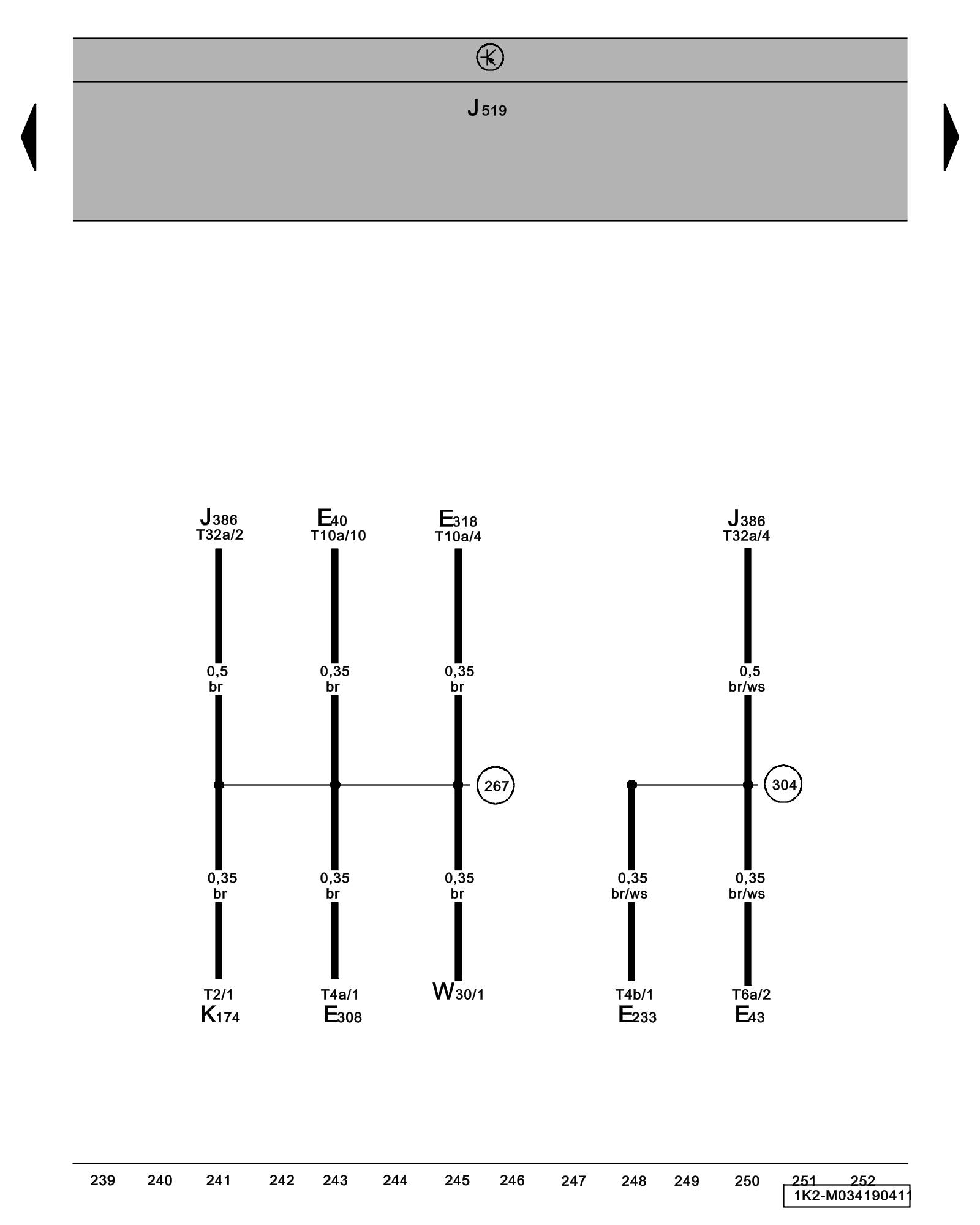

Diagram 34/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E40 - Left Front Window Regulator Switch

E43 - Mirror Adjustment Switch

E233 - Rear Lid Remote Control Lock Switch

E308 - Driver's Interior Locking Button

E318 - Child Safety Button

J386 - Driver's Door Control Module Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

K174 - Driver's Interior Locking Indicator Lamp

T2 - Double Connector

T4a - 4-Pin Connector

T4b - 4-Pin Connector

T6a - 6-Pin Connector

T10a - 10-Pin Connector

T32a - 32-Pin Connector

W30 - Driver's Door Warning Light

(267) - Ground Connection 2 (in driver's door wiring harness)

(304) - Ground Connection 3 (in front passenger's door wiring harness)

Previous Diagram 34/18 (Tracks 225-238)

Next Diagram 34/20 (Tracks 253-266)
