Relay Carrier, Under Instrument Panel on Left Side

Relay Carrier, Under Instrument Panel on Left Side


When disconnecting and connecting the Battery, the procedure must be followed as described in the repair information. Refer to=> [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Removal

- Disconnect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the driver side storage compartment.

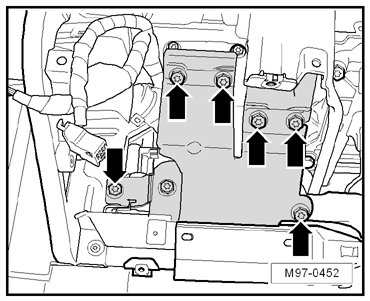

- Remove the screws from the bracket - arrows -.






- Remove relays - arrows - from the relay panel.






• The number of relays is dependent on vehicle equipment.

- Unclip the tabs in - direction of arrow - and push the connector - 1 - through the relay panel.






- Release the tab - 1 - on the relay panel in - direction of arrow - and remove the relay panel.






Installation

Installation is performed in the reverse order of removal. Note the following:

- Clip the connection into the relay panel.

- Place the relay panel - 2 - in the guide - 1 - and then lock it in.
