Test Result Evaluation

Battery Tester VAS 6161

CAUTION!
Risk of injury. Observe warning notes and safety precautions => [ Dangers When Working with Batteries ] Dangers When Working with Batteries!

It is not necessary to disconnect or remove the battery when using the Battery Tester (VAS 6161).

The Battery Tester (VAS 6161) no longer is loading the battery. It is working according to the principle of dynamic conductivity.

The Battery Tester (VAS 6161) stores all battery types.

The data can be stored on a SD memory card.

The Battery Tester (VAS 6161) can be updated using an interface or an SD memory card, so that all battery data from Volkswagen is current.

The integrated infrared sensor (measuring the battery temperature) increases the quality of the measurements.

As an option, there is a 2D scanner available, which can be used to read the bar code on the battery.

• Read the Operating Instructions that come with the Battery Tester (VAS 6161).

• Battery Tester (VAS 6161) description, refer to => [ Battery Tester VAS 6161 ] Battery Tester VAS 6161.

• Battery test, refer to => [ Battery Test ]. Battery Test

• Maintenance Test, Performing, refer to => [ Maintenance Test, Performing ]. Maintenance Test, Performing

• Service Test, Performing, refer to => [ Service Test, Performing ]. Service Test, Performing

• Warranty Test, Performing, refer to => [ Warranty Test, Performing ]. Warranty Test, Performing

• Printed test results explanations, refer to => [ Printed Test Results Explanations ]. Printed Test Results Explanations

• Test result evaluation, refer to => [ Test Result Evaluation ].

Test Result Evaluation

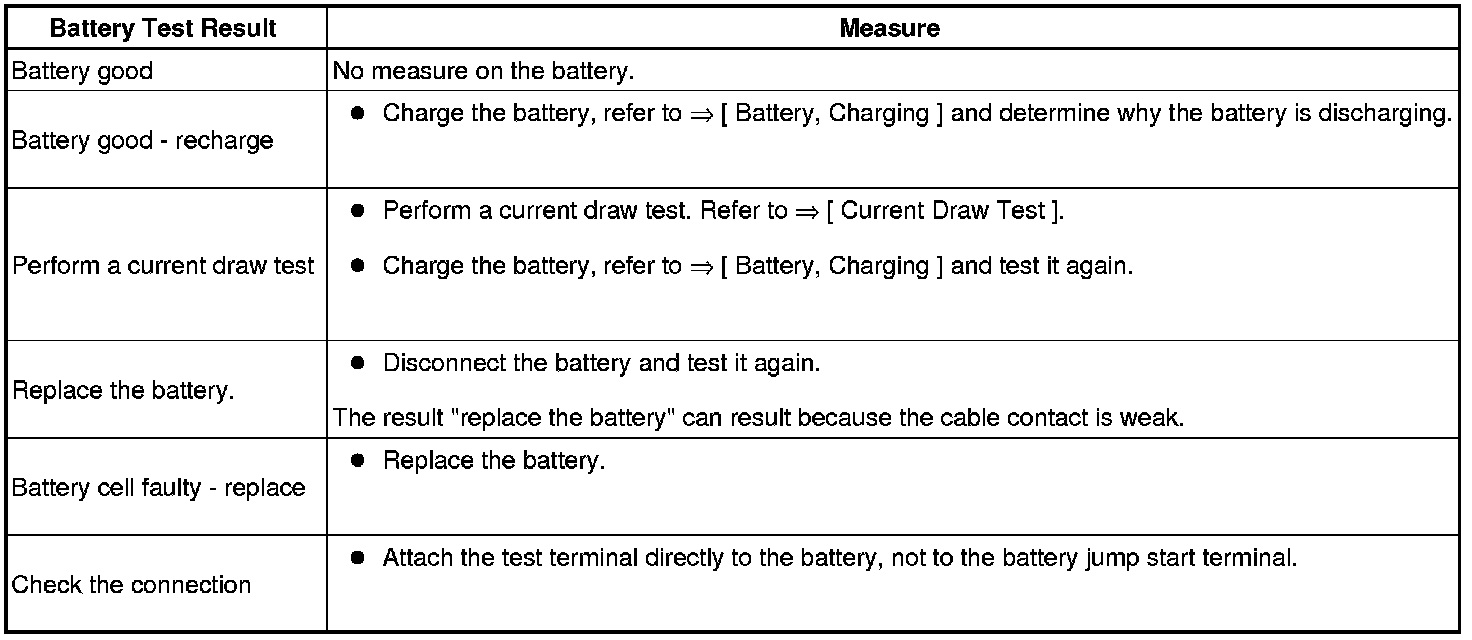

Evaluating the Battery Test Results for the Warranty and Service Tests

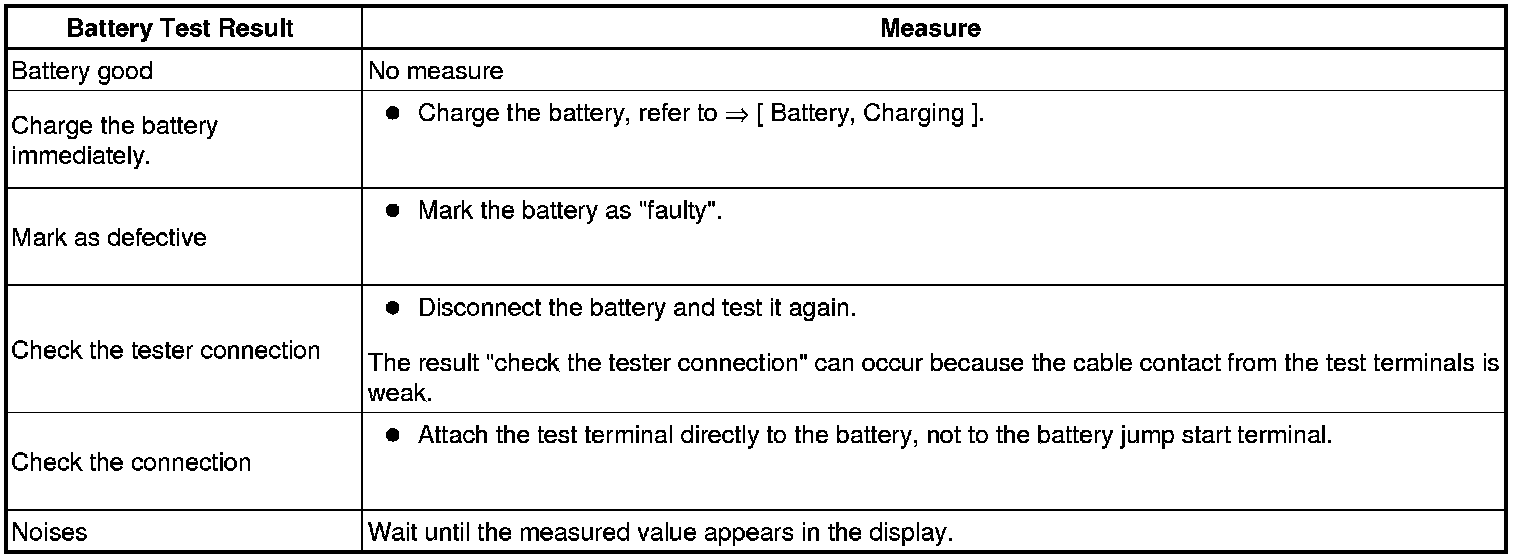

Evaluating the Battery Test Results for the Maintenance test
