Rear Wheel Housing Crash Sensors

Rear Wheel Housing Crash Sensors

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removal


Observe safety precautions for working on airbags.

- Disconnect vehicle battery.

- Remove seat bench. Refer to => [ Seat Bench ] Seat Bench.

- Remove side upholstery:

• with rear side airbags. Refer to => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag.

• without rear side airbags. Refer to => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag.

- Remove wheel housing trim. Refer to => [ Wheel Housing Trim ] Wheel Housing Trim.

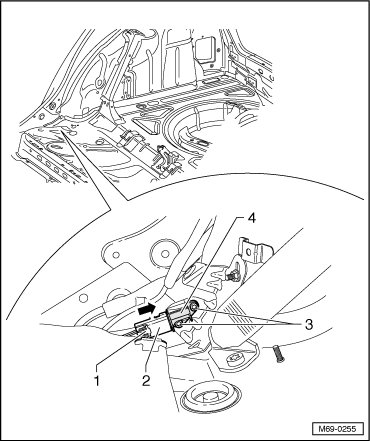

- Press connector lock - 1 - toward rear - arrow - and disconnect connector - 2 - from crash sensor - 4 -.

- Remove the two bolts - 3 - (9 Nm) and the crash sensor - 4 -.





Installation

- To install, perform the steps used for removal in reverse order.

- Switch on ignition.


Make sure that no persons are in the vehicle.

- Connect vehicle battery.
