Electronic Throttle Control Indicator: Locations

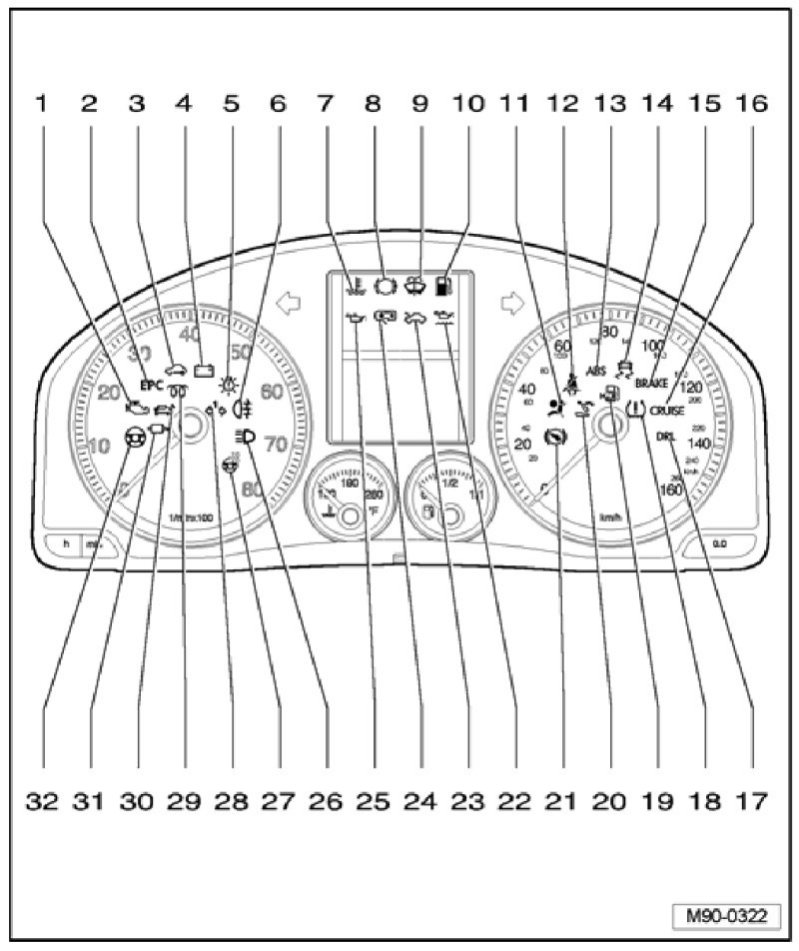

Instrument Cluster Lamp Symbols, through MY 09

NOTE: Different instrument clusters are used, depending on vehicle equipment. Therefore, the arrangement of the control lamps may deviate from the illustration.







1 - Malfunction Indicator Lamp (MIL) K83
2 - Electronic Power Control (EPC) Warning Lamp K132
- Only on vehicles with gasoline engines
3 - Anti-Theft Engine Disable Indicator Light K115
4 - Generator Warning Lamp K2
5 - Lamp Failure Indicator Lamp K170
6 - Rear Fog Lamp Indicator Lamp K13
7 - Engine Coolant Level (ECL) Warning Lamp K36
8 - Brake Pad Wear Indicator Lamp K32
9 - Low Windshield Washer Fluid Level Indicator Lamp K37
10 - Low Fuel Level Warning Lamp K16
11 - Airbag Malfunction Indicator Lamp (MIL) K75
12 - Safety Belt Warning Lamp K19
13 - ABS Warning Lamp K47
14 - ASR/ESP Control Lamp K155
15 - Brake System Indicator Light K118
16 - Cruise Control Indicator Lamp K31
17 - Daytime Running Lamp (DRL) Indicator Lamp K205
18 - Tire Pressure Monitoring Display Indicator Lamp K220
19 - Water in fuel
20 - Rear Seat Backrest Lock Indicator Lamp K193
21 - Shift Lock Indicator lamp K169
- Only on vehicles with automatic transmissions
22 - Oil Level Indicator Lamp K38
23 - Front Hood Open Warning Lamp K171
24 - Door Ajar Indicator Lamp K166
25 - Oil Pressure Warning Lamp K3
26 - High Beam Indicator Lamp K1
27 - Steering wheel heater
28 - Trailer Operation Indicator Lamp K18
29 - Glow Plug Indicator Lamp K29
- Only on vehicles with diesel engines
30 - Fuel Filler Lid Lock Warning Lamp K201
31 - Diesel Particle Filter Indicator Lamp K231
32 - Electromechanical Power Steering Indicator Lamp K161
