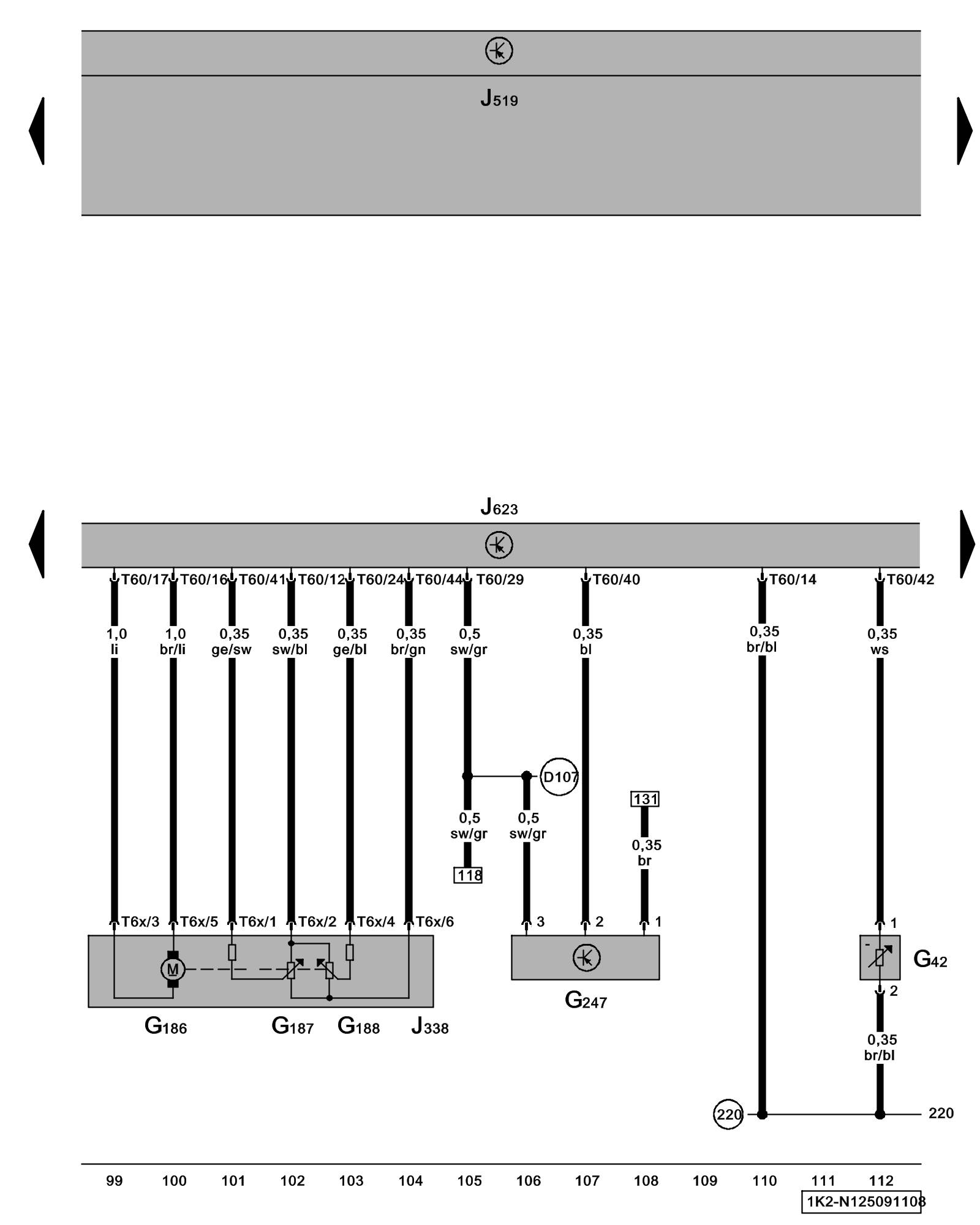

Diagram 125/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Intake Air Temperature (IAT) Sensor, Throttle Drive (for Electronic Power Control (EPC)), Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)), Fuel Pressure Sensor, Throttle Valve Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G42 - Intake Air Temperature (IAT) Sensor Locations

G186 - Throttle Drive (for Electronic Power Control (EPC)) 2.0L BPY, CCTA and CBFA

G187 - Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) 2.0L BPY, CCTA and CBFA

G188 - Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) 2.0L BPY, CCTA and CBFA

G247 - Fuel Pressure Sensor Locations

J338 - Throttle Valve Control Module Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM) Locations

T6x - 6-Pin Connector

T60 - 60-Pin Connector

(220) - Sensor Ground Connection (in engine compartment wiring harness)

(D107) - Connection 5 (in engine compartment wiring harness)
