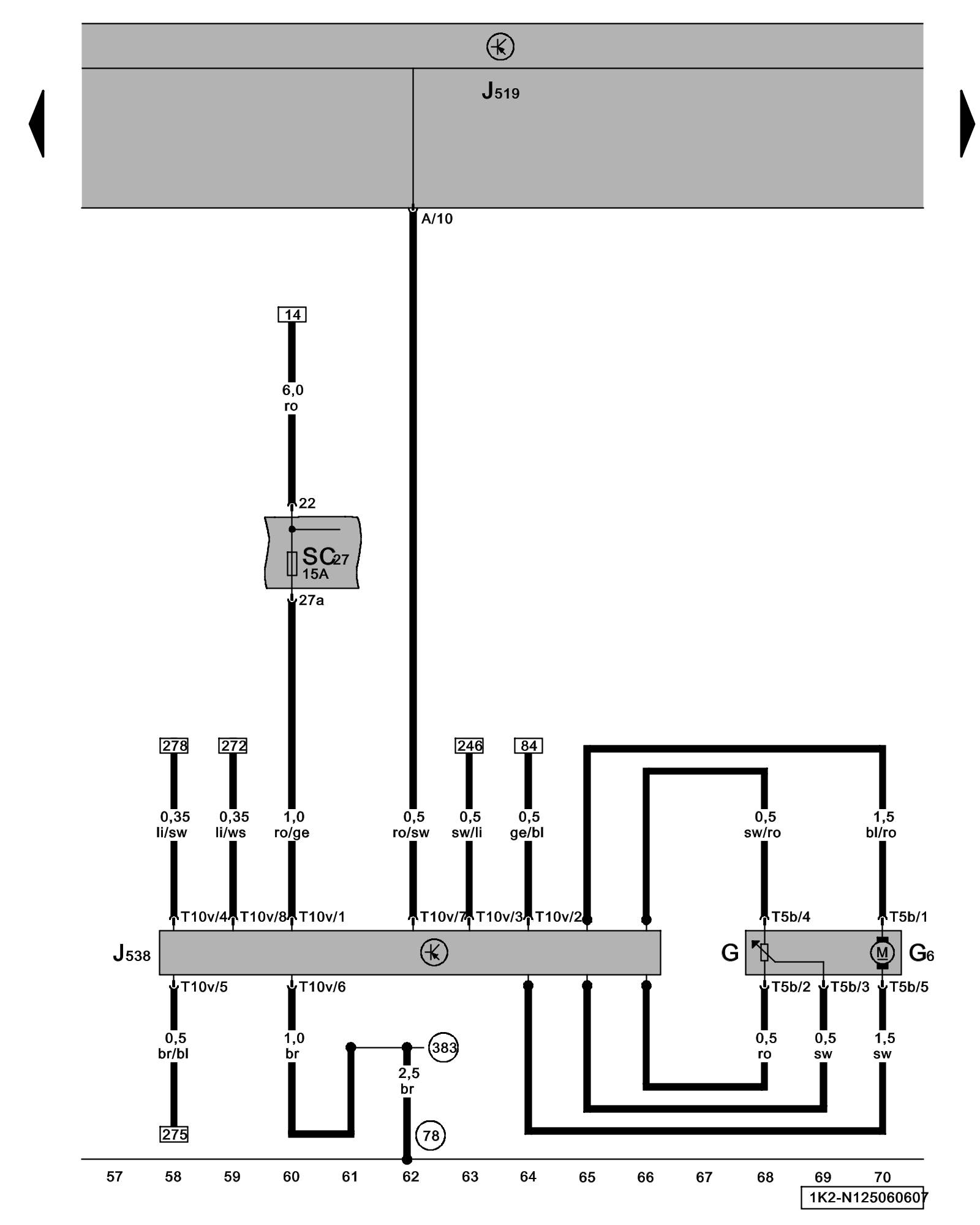

Diagram 125/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel Level Sensor, Transfer Fuel Pump (FP), Vehicle Electrical System Control Module, Fuel Pump (FP) Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel Level Sensor Locations

G6 - Transfer Fuel Pump (FP) Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J538 - Fuel Pump (FP) Control Module Locations

SC27 - Fuse 27 (on fuse panel C) Locations

T5b - 5-Pin Connector

T10v - 10-Pin Connector

(78) - Ground Connection (on right lower B-pillar)

(383) - Ground Connection 18 (in main wiring harness)
